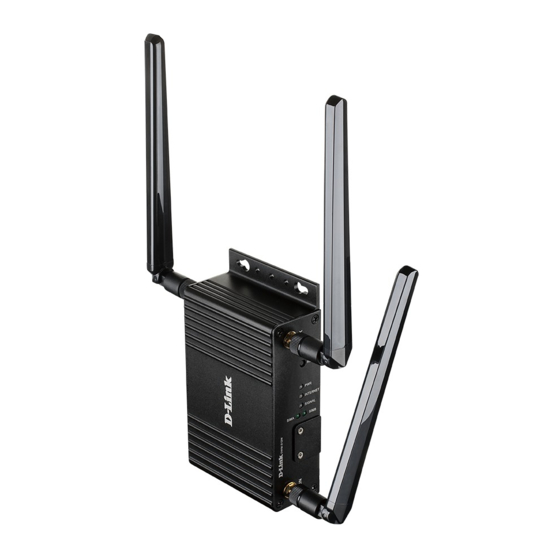

- Page 1 Quick Installation Guide DWM-312W 4G LTE Wireless M2M Router with one module for two SIM cards...
-
Page 2: Before You Begin
If any of the items are missing, please contact your reseller. The “User Manual” and “Quick Installation Guide” documents are available on D-Link website (see www.dlink.ru). Using a power supply with a different voltage rating than the one included will cause damage and void the warranty for this product. -
Page 3: Default Settings
Router DWM-312W with default settings cannot connect to the Internet. To get started, please set your own password for access to the web-based interface and change the WLAN name (SSID); then, if... -
Page 4: System Requirements And Equipment
DWM-312W Quick Installation Guide System Requirements and Equipment An Android or iPhone mobile device (smartphone or tablet) or a computer • with any operating system that supports a web browser. A PC web browser to access the web-based interface of the router: •... -
Page 5: Pc With Ethernet Adapter
DWM-312W Quick Installation Guide CONNECTING TO PC PC with Ethernet Adapter 1. Connect an Ethernet cable between the LAN port located on the back panel of the router and the Ethernet port of your PC. 2. To connect via the built-in LTE modem: insert a SIM card into the slot labeled SIM A on the front panel of the router with the gold contacts facing down. - Page 6 DWM-312W Quick Installation Guide Obtaining Address Automatically (OS Windows 7) 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by...
- Page 7 DWM-312W Quick Installation Guide 6. Make sure that the Obtain an IP address automatically and Obtain DNS server address automatically choices of the radio buttons are selected. Click the OK button. 7. Click the OK button in the connection properties window.
- Page 8 DWM-312W Quick Installation Guide Obtaining Address Automatically (OS Windows 10) 1. Click the Start button and proceed to the Settings window. 2. Select the Network & Internet section. 3. In the Change your network settings section, select the Change adapter options line.
- Page 9 DWM-312W Quick Installation Guide 6. Make sure that the Obtain an IP address automatically and Obtain DNS server address automatically choices of the radio buttons are selected. Click the OK button. 7. Click the Close button in the connection properties window.
-
Page 10: Pc With Wi-Fi Adapter
DWM-312W Quick Installation Guide PC with Wi-Fi Adapter 1. To connect via the built-in LTE modem: insert a SIM card into the slot labeled SIM A on the front panel of the router with the gold contacts facing down. If necessary, install a second SIM card into slot labeled SIM B with the gold contacts facing up. - Page 11 DWM-312W Quick Installation Guide Obtaining Address Automatically Connecting to Wireless Network (OS Windows 7) 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by...
- Page 12 DWM-312W Quick Installation Guide 6. Make sure that the Obtain an IP address automatically and Obtain DNS server address automatically choices of the radio buttons are selected. Click the OK button. 7. Click the OK button in the connection properties window.
- Page 13 Quick Installation Guide 9. In the opened window, in the list of available wireless networks, select the wireless network DWM-312W and click the Connect button. 10. In the opened window, enter the network key (see WPS PIN on the barcode label on the bottom panel of the device) in the Security key field and click the OK button.
- Page 14 DWM-312W Quick Installation Guide Obtaining Address Automatically Connecting to Wireless Network (OS Windows 10) 1. Click the Start button and proceed to the Settings window. 2. Select the Network & Internet section. 3. In the Change your network settings section, select the Change adapter options line.
- Page 15 9. In the opened window, in the list of available wireless networks, select the wireless network DWM-312W and click the Connect button. 10. In the opened window, enter the network key (see WPS PIN on the barcode label on the bottom panel of the device) in the Security key field and click the Next button.
- Page 16 DWM-312W Quick Installation Guide If you perform initial configuration of the router via Wi-Fi connection, note that immediately after changing the wireless default settings of the router you will need to reconfigure the wireless connection using the newly specified settings.
-
Page 17: Configuring Router
DWM-312W Quick Installation Guide CONFIGURING ROUTER Connecting to Web-based Interface Start a web browser. In the address bar of the web browser, enter the domain name of the router (by default, dlinkrouter.local) with a dot at the end and press the Enter key. Also you can enter the IP address of the device (by default, 192.168.0.1). - Page 18 DWM-312W Quick Installation Guide If you configured the device previously, after access to the web-based interface the login page opens. Enter the username (admin) in the Username field and the password you specified in the Password field, then click the LOGIN button.
- Page 19 DWM-312W Quick Installation Guide The Summary page displays general information on the router and its software.
- Page 20 DWM-312W Quick Installation Guide The Home page displays links to the most frequently used pages with device's settings. The web-based interface of the router is multilingual. You can select the needed language in the System / Configuration section of the menu.
-
Page 21: Initial Configuration Wizard
Click the OK button and wait until the factory default settings are restored. If you perform initial configuration of the router via Wi-Fi connection, please make sure that you are connected to the wireless network of DWM-312W (see the WLAN name (SSID) in the Default Settings section, page 3) and click the NEXT button. - Page 22 DWM-312W Quick Installation Guide 1. Click YES in order to leave the current language of the web-based interface or click NO to select another language. 2. On the next page, click the CONTINUE button.
-
Page 23: Selecting Operation Mode
DWM-312W Quick Installation Guide Selecting Operation Mode Select the needed operation mode and click the NEXT button. In order to connect your device to a wired ISP, on the Device mode page, from the Connection method list, select the Wired connection value. In... - Page 24 DWM-312W Quick Installation Guide In order to connect your device to a wireless ISP (WISP), on the Device mode page, from the Connection method list, select the Wi-Fi value. In this mode you can connect your device to another access point, configure a WAN connection, set your own settings for the wireless network, and set your own password for access to the web-based interface of the device.
-
Page 25: Creating 3G/Lte Wan Connection
DWM-312W Quick Installation Guide Creating 3G/LTE WAN Connection This configuration step is available for the Mobile Internet connection method. 1. In the SIM card drop-down list, select the SIM card to establish connection. 2. If the PIN code check is enabled for the SIM card inserted into the built- in LTE modem, enter the PIN code in the PIN field and click the APPLY button. - Page 26 DWM-312W Quick Installation Guide 4. Click the NEXT button. If the router failed to create a WAN connection automatically, click the CONFIGURE MANUALLY button. On the Modem Settings page, NEXT configure all needed settings and click the button.
- Page 27 DWM-312W Quick Installation Guide Wi-Fi Client This configuration step is available for the Wi-Fi connection method. 1. On the Wi-Fi Сlient page, click the WIRELESS NETWORKS button and select the network to which you want to connect in the opened window.
- Page 28 DWM-312W Quick Installation Guide Configuring Wired WAN Connection This configuration step is available for the Wired connection and Wi-Fi connection methods. You should configure your WAN connection in accordance with data provided by your Internet service provider (ISP). Make sure that you have obtained all necessary information prior to configuring your connection.
- Page 29 DWM-312W Quick Installation Guide PPPoE, IPv6 PPPoE, PPPoE Dual Stack, PPPoE + Dynamic IP (PPPoE Dual Access): Enter authorization data provided by your ISP (the username (login) in the Username field and the password in the Password field). Click the Show icon ( ) to display the entered password.
- Page 30 DWM-312W Quick Installation Guide PPTP + Dynamic IP or L2TP + Dynamic IP: Enter authorization data provided by your ISP (the username (login) in the Username field and the password in the Password field). Click the Show icon ( ) to display the entered password.
- Page 31 DWM-312W Quick Installation Guide 2. If a particular MAC address was registered by your ISP upon concluding the agreement, from the MAC address assignment method drop- down list (available for the Wired connection method only), select the Manual value and enter this address in the MAC address field. Choose...
-
Page 32: Configuring Wireless Network
DWM-312W Quick Installation Guide Configuring Wireless Network 1. On the Wireless Network 2.4 GHz page, in the Network name field, specify your own name for the wireless network or leave the value suggested by the router. 2. In the Password field, specify your own password for access to the wireless network or leave the value suggested by the router (WPS PIN of the device, see the barcode label). - Page 33 DWM-312W Quick Installation Guide 5. If you want to create an additional wireless network isolated from your LAN, select the Enable guest network checkbox. In the Network name field, specify your own name for the guest wireless network or leave the value suggested by the router.
-
Page 34: Changing Web-Based Interface Password
DWM-312W Quick Installation Guide Changing Web-based Interface Password On this page you should change the default administrator password. To do this, enter a new password in the User’s interface password and Password confirmation fields. You may set any password except admin. Use digits, Latin letters (uppercase and/or lowercase), and other characters available in the US keyboard layout. -
Page 35: Configuring Local Area Network
DWM-312W Quick Installation Guide Configuring Local Area Network Go to the Connections Setup / LAN page. If needed, change the IPv4 address of the router's LAN interface and the mask of the local subnet. To do this, click the IPv4 tab and specify needed values in the IP address and Mask fields in the Local IP Address section. - Page 36 DWM-312W Quick Installation Guide 4. IPv4 address assignment. By default, the built-in DHCP server of the router assigns IPv4 addresses to the devices of the LAN. If you want to manually assign IPv4 addresses, disable the DHCP server (click the...
- Page 37 DWM-312W Quick Installation Guide 5. IPv6 address assignment. By default, the devices of the LAN automatically assign IPv6 addresses to themselves (the Stateless value is selected from the Mode of IPv6 address assignment drop-down list in the Dynamic IP Addresses section on the IPv6 tab). If the...
-
Page 38: Specifications
DWM-312W Quick Installation Guide SPECIFICATIONS Hardware · Processor MT7620A (580MHz) · 128MB, SDRAM DDR2 · Flash 32MB, SPI · 10/100BASE-TX WAN/LAN port Interfaces · 10/100BASE-TX LAN port · 2 slots for SIM card (mini-SIM) · Terminal block with DI-1, DI-2, DO, Rx, Tx, GND pins ·... - Page 39 DWM-312W Quick Installation Guide Software · Mobile Internet WAN connection types · PPPoE · IPv6 PPPoE · PPPoE Dual Stack · Static IPv4 / Dynamic IPv4 · Static IPv6 / Dynamic IPv6 · PPPoE + Static IP (PPPoE Dual Access) ·...
- Page 40 Management and monitoring TELNET/WEB (HTTP/HTTPS) · Multilingual web-based interface for configuration and management · Support of D-Link Assistant application for Android and iPhone smartphones · Notification on connection problems and auto redirect to settings · Firmware update via web-based interface ·...
- Page 41 DWM-312W Quick Installation Guide LTE Module Parameters · Downlink: up to 150Mbps LTE connection rate · Uplink: up to 50Mbps · LTE Cat. 4: 1/3/5/7/8/20/38/40/41 Supported frequencies · UMTS/HSPA: 1/5/8, 850/900/2100MHz · GSM/GPRS/EDGE: 900/1800MHz · Auto connection to available type of supported network...
- Page 42 DWM-312W Quick Installation Guide Wireless Module Parameters · IEEE 802.11b: 1, 2, 5.5, and 11Mbps Wireless connection rate · IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps · IEEE 802.11n: 6.5–150Mbps (MCS0–MCS7) Physical Parameters · Dimensions (L x W x H) 134 x 76 x 32 mm (5.28 x 2.99 x 1.26 in)
-
Page 43: Safety Rules And Conditions
DWM-312W Quick Installation Guide SAFETY RULES AND CONDITIONS Please carefully read this section before installation and connection of the device. Make sure that the power adapter and cables are not damaged. The device should be used only as intended in accordance with the documents. -
Page 44: Technical Support
Quick Installation Guide TECHNICAL SUPPORT You can find software updates and user documentation on our website. D-Link provides its customers with free support within the product's warranty period. Customers can contact the technical support group by phone or by e- mail/Internet.
