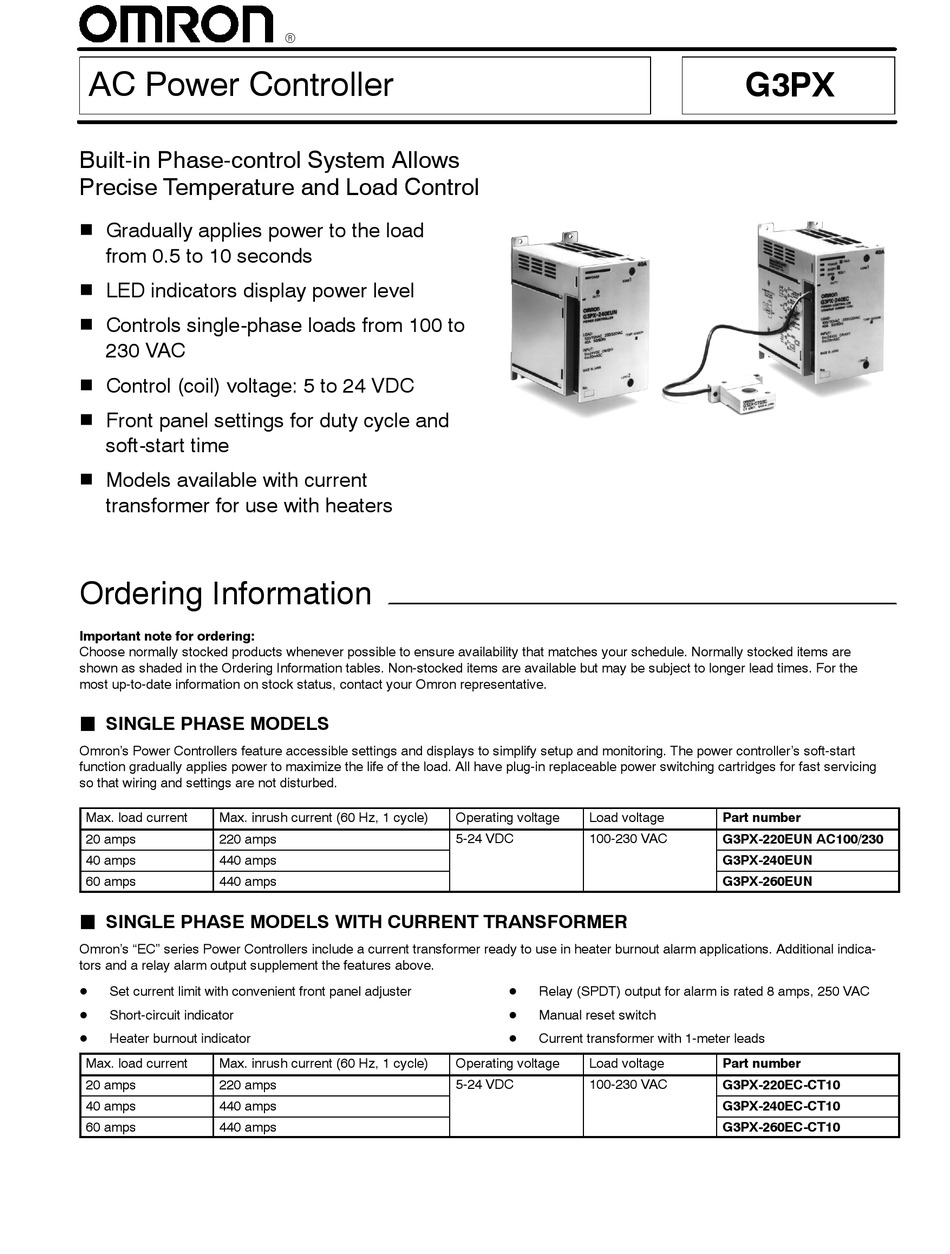

AC Power Controller
Built-in Phase-control System Allows
Precise Temperature and Load Control
Gradually applies power to the load
H
from 0.5 to 10 seconds
LED indicators display power level
H
Controls single-phase loads from 100 to
H
230 VAC
Control (coil) voltage: 5 to 24 VDC
H
Front panel settings for duty cycle and
H
soft-start time
Models available with current
H
transformer for use with heaters
Ordering Information
Important note for ordering:
Choose normally stocked products whenever possible to ensure availability that matches your schedule. Normally stocked items are
shown as shaded in the Ordering Information tables. Non-stocked items are available but may be subject to longer lead times. For the
most up-to-date information on stock status, contact your Omron representative.
J SINGLE PHASE MODELS
Omron's Power Controllers feature accessible settings and displays to simplify setup and monitoring. The power controller's soft-start
function gradually applies power to maximize the life of the load. All have plug-in replaceable power switching cartridges for fast servicing
so that wiring and settings are not disturbed.
Max. load current
Max. inrush current (60 Hz, 1 cycle)
20 amps
220 amps
40 amps
440 amps
60 amps
440 amps
J SINGLE PHASE MODELS WITH CURRENT TRANSFORMER
Omron's "EC" series Power Controllers include a current transformer ready to use in heater burnout alarm applications. Additional indica-
tors and a relay alarm output supplement the features above.
Set current limit with convenient front panel adjuster
D
Short-circuit indicator
D
Heater burnout indicator
D
Max. load current
Max. inrush current (60 Hz, 1 cycle)
20 amps
220 amps
40 amps
440 amps
60 amps
440 amps
R
Operating voltage
5-24 VDC
Operating voltage
5-24 VDC
Load voltage
100-230 VAC
Relay (SPDT) output for alarm is rated 8 amps, 250 VAC
D
Manual reset switch
D
Current transformer with 1-meter leads
D
Load voltage
100-230 VAC
G3PX
Part number
G3PX-220EUN AC100/230
G3PX-240EUN
G3PX-260EUN
Part number
G3PX-220EC-CT10
G3PX-240EC-CT10
G3PX-260EC-CT10
Advertisement
Table of Contents
Related Manuals for Omron G3PX EUN Series
Summary of Contents for Omron G3PX EUN Series
- Page 1 G3PX-260EUN J SINGLE PHASE MODELS WITH CURRENT TRANSFORMER Omron’s “EC” series Power Controllers include a current transformer ready to use in heater burnout alarm applications. Additional indica- tors and a relay alarm output supplement the features above. Set current limit with convenient front panel adjuster...
-
Page 2: Specifications
G3PX G3PX J REPLACEMENT PARTS Description Specifications Applicable models Part number Power device cartridge 20 A carry current G3PX-220 G32X-A20 40 A carry current G3PX-240 G32X-A40 60 A carry current G3PX-260 G32X-A60 Current transformer 1 m cable G3PX-2!!EC G32X-CT10C 0.3 m cable G3PX-2!!EC G32X-CT03C Specifications... - Page 3 G3PX G3PX J CHARACTERISTICS Series G3PX-!!!EUN G3PX-!!!EC Operating voltage range ±10% Operating frequency range ±1 Hz Output voltage adjustable range 0% to 95% Internal duty setting range 0% to 100% External duty setting range 0% to 100% Start- -up time (See Note) Approx 0.5 to 10 s with a 100% duty setting Base-up range 0% to 90%...
-
Page 4: Operation
G3PX G3PX Operation J ERROR DETECTING FUNCTION Wiring 2. When EC-series models detect a short-mode failure, the SHORT indicator is lit and the SPDT relay output is ON. Single-phase Models With continuous load current. All G3PX-jjjEC models incorporate terminals 11 and 12 for the current transformer (CT Unit), 13 and 14 for the external reset switch, and 16 and 17 for relay output as well as power/input terminals 1 through 10. - Page 5 *Impedance Load 2 Note: Two G3PX models can be connected in series to one OMRON Temperature Controller (with an internal impedance of 600 Ω) with a current output. 2. A Temperature Controller with an output of 7 to 20 mA is used with the G3PX to change the duty.
- Page 6 G3PX G3PX ON/OFF Control Single-phase Models 1. A Temperature Controller is used to change the duty of G3PX. Load 1 Internal DUTY adjuster 5/12/24 VDC Temperature ON/OFF Controller G3PX DUTY Load 2 G32X-V3K External DUTY Adjuster (3 kΩ) Note: You can change the duty with the external or internal variable resistor. 2.
- Page 7 G3PX G3PX Two-position Control Single-phase Models H (High) Load 1 G32X-V2K External DUTY Adjuster L (Low) G3PX Load 2 Note: 1. A temperature controller with relay output or a single relay can be used with the G3PX in two-position (high-and low-position) control, in which case the relay contact current is 30 mA at 12 VDC with the External DUTY Adjuster set to 0 Ω.
- Page 8 G3PX G3PX Mounting 4. Loosen the screws on both corners. Mount the Power Device Cartridge as follows: 1. Apply silicone grease (provided with the G32X-A) to the entire surface of the heat sink. Loosen 2. Make sure there is no dust or pieces of wire on the heat sinks of the G32X-A or the G3PX.
- Page 9 G3PX G3PX Dimensions Unit: mm (inch) J POWER CONTROLLERS G3PX-220Ej Series Mounting Holes Four, 4.5 dia. or M4 holes 140±0.3 119 (4.68) (5.51) 50±0.3 (1.97) Two, 4.6 dia. Two, M4 screws holes (5.91) max. 140±0.2 109.8 Two, R2.3 holes 50±0.2 70 (2.76) max.
- Page 10 G3PX G3PX G3PX-260Ej Series Mounting Holes Four 4.5-dia. or M4 holes 140±0.3 (5.51) 80±0.3 (3.15) Two, 4.6 dia. Two, M6 screws holes (5.91) max. 140±0.2 109.8 Two, R2.3 holes 80±0.2 100 (3.94) max. 130 (5.12) max. J CURRENT TRANSFORMERS G32X-CT03j Series G32X-CT10j Series 60 (2.36) max.
-
Page 11: Installation
J LOAD 10 mm 10 mm Only resistive loads can be connected to the G3PX. Contact your OMRON representatives if it is necessary to connect inductive or transformer loads. J MOUNTING The three-phase, 60-A G3PX weighs approximately 5 kg. Pay ut- most attention when mounting the G3PX so that the G3PX will not fall thus resulting in injury. -
Page 12: J Troubleshooting
G3PX G3PX J WIRING J CURRENT TRANSFORMER UNIT Make sure that the lead wires are thick enough according to the cur- Use only G32X-CTjjC CT Units in combination with rent. G3PX-2j0EC Series power controllers Be sure to turn off power to the G3PX when wiring. The G3PX has If G3PX-20EC Series (constant current) model is used and the current leakage although the G3PX is turned off if the power supply actual load current is 50% of the maximum rated load current or... - Page 13 G3PX G3PX • The G3PX does not operate or is in abnormal operation. Adjust so that this LED is OFF. Make sure that all input terminals are connected properly with no mistakes in polarity. Make sure that the internal DUTY adjuster is not set to the farthest clockwise position.
- Page 14 G3PX G3PX Heater Control Types and G3PX Control Methods J HEATER CONTROL TYPES Heater control Manual Temperature Controller E5jK, E5jN G32X-VjK Relay output Current output Current output Voltage output SSR output Phase control Cycle control Phase control Cycle control ON/OFF control G3PX Power Controller G32A-EA Cycle Control G3PX Power Controller...
- Page 15 G3PX G3PX ON/OFF Control Cycle Control Phase Control (Single- - phase model) Enables noiseless temperature control at Noiseless, high-speed response Highly accurate temperature control low cost with no complicated maintenance enables each heater to withstand long use. work required. Half cycle Current output Current output Voltage output...
-
Page 16: Phase Control
G3PX G3PX J DESCRIPTION OF FUNCTIONS Phase Control Soft-start Output is varied at half-phase intervals. Therefore, highly accurate This function suppresses the inrush current that is caused when the temperature control is possible. load is turned ON, thus ensuring the smooth starting of the load. The following is an example of a waveform in single-phase control. - Page 17 G3PX G3PX J CONNECTION EXAMPLES OF SINGLE-PHASE G3PX AND TEMPERATURE CONTROLLER • The soft-start time is adjusted between 0.5 and 10 s, thus enabling the heaters to Temperature Controller withstand long use. • If a single Temperature Controller is in control Voltage-output of more than one heater, by making a proper G3PX...
