- Page 1 6028 Series 1U Control Panels Quick Setup Guide...
-
Page 2: Lcd Control Panel

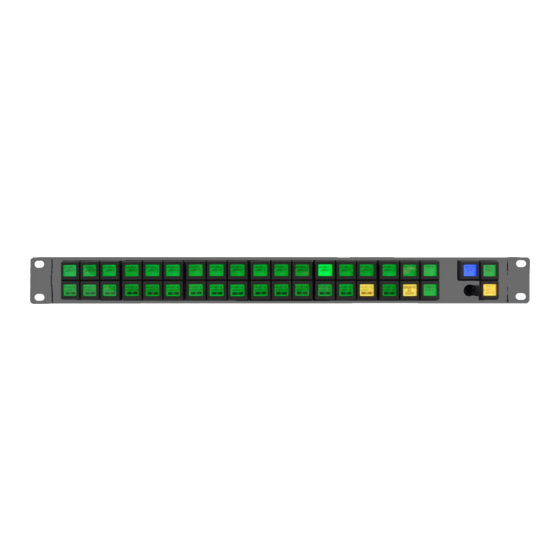

6028 Series Quick Setup Guide LED Control Panels 6028000 (78-key High density Panel – configurable as a BPX or XY panel) 6028400 (60-key High density Panel – configurable as a BPX or XY panel) 6028100 (42-key Standard Density Panel – configurable as a BPX panel) 6028201 (24-key Standard Density Panel –... -
Page 3: Configuration And Connection
6028 Series Quick Setup Guide Configuration and Connection Step 1: Select Control System Control panel modes are set using DIP switch 6. See table below: Step 1: Select Control System Step 2: Select Comms Type LED control panel modes are set using DIP switches 5 – 9. See table below... - Page 4 6028 Series Quick Setup Guide Serial Comms Setup Note: Multi-drop address must match database configuration. Set DIP switches 1 and 2 down to terminate long cable runs or the end of a multi-drop chain. Hex Switch 1 sets the multi-drop address:...
- Page 5 6028 Series Quick Setup Guide Ethernet Comms Setup Note: IP address must match database configuration. Change IP details from default values before connecting to a real network: 1. Using a PC configured to be on the same subnet as the panel default address, connect to the panel.
-
Page 6: Contact Information
6028 Series Quick Setup Guide Contact Information Grass Valley Technical Support For technical assistance, contact our international support center, at 1-800-547-8949 (US and Canada) or +1 530 478 4148. To obtain a local phone number for the support center nearest you, please consult the Contact Us section of Grass Valley’s website (...
