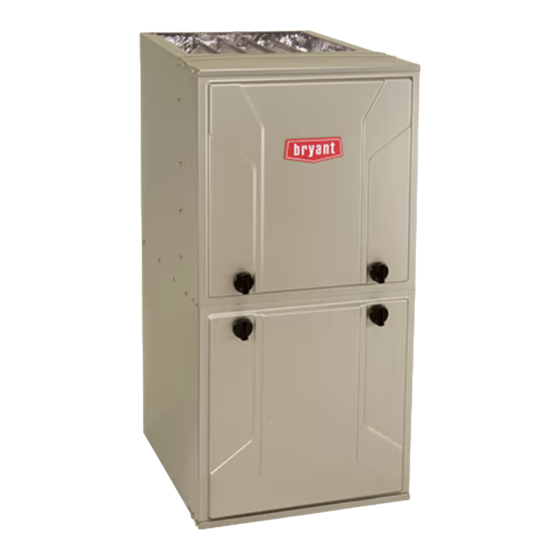

Bryant Legacy 95 916SA Product Data

Single-stage, multi 18-speed ecm, condensing gas furnace
Hide thumbs
Table of Contents

Advertisement

Quick Links

+
916SA
Legacy™ 95, Single-Stage, Multi 18-Speed ECM,
Condensing Gas Furnace
Representative drawing only. Some product models may vary.
WARNING
!
CARBON MONOXIDE POISONING AND FIRE
HAZARD
Failure to follow this warning could result in personal injury, death,
and/or property damage.
This furnace is not designed for use in recreation vehicles or outdoors.
This furnace is designed for use in manufactured (Mobile) homes when
an optional Mobile Home accessory kit is installed.
Failure to follow this warning could result in personal injury, death,
and/or property damage.
The 916SA Multipoise Condensing Gas Furnace features the
™
single-stage Legacy
System. The fixed-speeds, constant torque (MCT)
ECM blower motor is at the heart of the electrical efficiency provided by
this furnace. With an Annual Fuel Utilization Efficiency (AFUE) of
96.2% AFUE, this furnace provides added savings over standard gas
furnaces. Improved serviceability with the 3 digit status display and
NFC enabled board allowing setup via the service tech app. This Legacy
Gas Furnace features 4-way multipoise installation flexibility, and is
available in model eleven sizes. All sizes except the 26,000 BTUh model
can
be vented for direct vent/two-pipe,
single-pipe applications. The 26,000 BTUh model can use the same
2-pipe venting system using outside air for combustion, but is not
considered direct-vent. A Bryant Legacy Control and Legacy Air
Conditioner or Heat Pump, can be used to form a complete Legacy Line
System. All sizes are design certified in Canada. Specific sizes are
design certified for use in Manufactured Housing (Mobile Home)
applications when used with factory-approved MH accessory kit.
Product Data
A11264
ventilated combustion air, or
PERFORMANCE
• Multi 18-speed, constant torque (MCT) ECM blower motor for
electrically efficient operation all year long in heating, cooling and
continuous fan operation.
• Enhanced diagnostics with easy to read 3-digit display for faults and
status.
• Single-speed inducer motor, and single-stage gas valve.
• Silicon Nitride PerfectLight
®
• Perfect Humidity
technology removes more moisture than a standard
furnace during cooling operation (when installed with a matched air
conditioner or heat pump)
• Adjustable blower speed for heating and cooling.
• Aluminized-steel primary heat exchanger.
• Stainless-steel condensing secondary heat exchanger.
INSTALLATION FLEXIBILITY
• On-board NFC antenna makes setup a tap away when using the
Bryant service technician app.
• 4-way multipoise design for upflow, downflow or horizontal
installation, with unique vent elbow for optional venting
through-the-cabinet downflow venting capability.
• Factory-configured ready for upflow applications.
• Ideal height 35" (889 mm) cabinet: short enough for taller coils, but
still allows enough room for service.
• Two-pipe venting, single-pipe venting or ventilated combustion air.
APPLICATIONS
• Approved for Twinning applications with accessory kit (48060M17,
048080M17, 060080M21, 60100M21, 66120M24, 66140M24
models, only).
• Approved for Manufactured Housing/Mobile Home applications with
MH accessory kit.
• Convertible to propane with gas conversion accessory kit.
CERTIFICATIONS
• All sizes meet ENERGY STAR
95%+ AFUE.
• Cabinet air leakage less than 2.0% at 1.0 in. w.c. and cabinet air
leakage less than 1.4% at 0.5 in. w.c. when tested in accordance with
ASHRAE standard 193.
• All sizes can be installed in air quality management districts with a 40
ng/J NOx emissions requirements.
™
Hot Surface Igniter.
®
Version 4.1 criteria for gas furnaces:
A200350

Advertisement

Table of Contents
loading

Related Manuals for Bryant Legacy 95 916SA

Summary of Contents for Bryant Legacy 95 916SA

  • Page 1 The 26,000 BTUh model can use the same 2-pipe venting system using outside air for combustion, but is not considered direct-vent. A Bryant Legacy Control and Legacy Air Conditioner or Heat Pump, can be used to form a complete Legacy Line System.
  • Page 2 916SA: Product Data A210796 Dimensional Drawing Dimensions SHIP WT. FURNACE SIZE LB (KG) CABINET WIDTH OUTLET WIDTH BOTTOM INLET WIDTH AIR INTAKE 30026M14 14-3/16 (361) 12-1/2 (319) 12-9/16 (322) 7-1/8 (181) 119 (54) 30040M14 14-3/16 (361) 12-1/2 (319) 12-9/16 (322) 7-1/8 (181) 123 (56) 36040M17...

  • Page 3: Model Number Nomenclature

    916SA: Product Data MODEL NUMBER NOMENCLATURE 6, 7 8 - 10 12 - 13 Heat Major Cooling Voltage Minor Exchanger Tier/NOx AFUE/NOx Heating Stages Series Capacity (CFM) Heat Input Motor Type Width (1-phase) Un-used Series 0 = 80% 8 = 80% 1 = 80% Low NOx C = Constant Airflow 9 = 90+%...

  • Page 4: Specifications

    916SA: Product Data SPECIFICATIONS UNIT SIZE 30026M14 30040M14 36040M17 48080M17 36060M14 48060M17 HEATING AND CAPACITY AND EFFICIENCY Input BTUh 26,000 40,000 40,000 60,000 60,000 80,000 † Output Capacity (BTUh) 25,000 39,000 39,000 56,000 58,000 78,000 25-55 40-70 40-70 35-65 40-70 40-70 Certified Temperature Rise Range - °F (°C) (14-31)
  • Page 5 916SA: Product Data UNIT SIZE 60080M21 66100M21 66120M24 66140M24 60100M21 HEATING AND CAPACITY AND EFFICIENCY Input BTUh 80,000 100,000 100,000 120,000 140,000 † Output Capacity (BTUh) 78,000 97,000 97,000 116,000 135,000 40-70 40-70 40-70 40-70 45-75 Certified Temperature Rise Range - °F (°C) (22-39) (22-39) (22-39)
  • Page 6 916SA: Product Data AIR DELIVERY (with filter) Air Delivery - CFM (with filter) External Static Pressure (IN.W.C.) Airflow Default Unit Size Setting Setting Cont. Fan Heat 30026M14 1025 1065 1030 Cooling 1115 1080 1045 1010 Cont. Fan Heat 30040M14 1005 1055 1025 1000...
  • Page 7 916SA: Product Data Air Delivery - CFM (with filter) (Continued) External Static Pressure (IN.W.C.) Airflow Default Unit Size Setting Setting Cont. Fan 36060M14 Heat 1015 1070 1040 1005 1105 1075 1045 1015 1165 1135 1105 1080 1050 1020 1215 1190 1160 1135 1105...
  • Page 8 916SA: Product Data Air Delivery - CFM (with filter) (Continued) External Static Pressure (IN.W.C.) Airflow Default Unit Size Setting Setting Cont. Fan 1070 1005 1150 1085 1025 1245 1185 1125 1065 1005 Heat 1325 1270 1215 1160 1105 1050 60080M21 1415 1360 1310...
  • Page 9 916SA: Product Data Air Delivery - CFM (with filter) (Continued) External Static Pressure (IN.W.C.) Airflow Default Unit Size Setting Setting Cont. Fan 1060 1145 1070 1250 1175 1105 1025 1345 1280 1205 1135 1065 1000 1435 1370 1305 1240 1170 1105 1045 66120M24...

  • Page 10: Typical Wiring Schematic

    916SA: Product Data TYPICAL WIRING SCHEMATIC FURNACE CONTROL BOARD FIELD 24-V WIRING FIELD 115-, 208/230-, 460-V WIRING FACTORY 24-V WIRING FACTORY 115-V WIRING NOTE 2 THERMOSTAT FIVE WIRE FIELD-SUPPLIED TERMINALS DISCONNECT THREE-WIRE HEATING-ONLY 208/230- OR BLOWER DOOR SWITCH 460-V THREE PHASE 208/230-V SINGLE...
  • Page 11 916SA: Product Data 140,000 BTUH Unit Size Uninsulated 3/8-in. Insulation 1/2-in. Insulation Winter Pipe Dia. 2 ½ 2 ½ 2 ½ Design Temp °F *. Not all model families have this size. Maximum Allowable Exposed Vent Length in Unconditioned Space - Meters 26,000* BTUH Unit Size...
  • Page 12 916SA: Product Data MAXIMUM EQUIVALENT VENT LENGTH - Ft. (M) NOTE: Maximum Equivalent Vent Length (MEVL) includes standard and concentric vent termination and does NOT include elbows. Use Deductions from Maximum Equivalent Vent Length to determine allowable vent length for each application. Unit Size 40,000 60,000...
  • Page 13 916SA: Product Data Venting System Length Calculations The Total Equivalent Vent Length (TEVL) for EACH combustion air or vent pipe equals the length of the venting system, plus the equivalent length of elbows used in the venting system from Deductions from Maximum Equivalent Vent Length - Ft. (M) Table. Standard vent terminations or factory accessory concentric vent terminations count for zero deduction.

  • Page 14: Return Air Temperature

    916SA: Product Data RETURN AIR TEMPERATURE DOWNFLOW SUBBASE This furnace is designed for continuous return-air minimum temperature / 4-IN. TYP of 60_F (15_C) db or intermittent operation down to 55_F (13_C) db PLENUM such as when used with a night setback thermometer. Return-air OPENING temperature must not exceed 80_F (27_C) db.
  • Page 15 916SA: Product Data MEDIA FILTER CABINET (OPTIONAL ACCESSORY) 25-5/8" (651mm) 24-1/4” 23-5/8" (616mm) (600mm) Opening with Flanges Bent 23-1/8” 23-3/8” (588mm) (594mm) Concentric Vent Kit Opening A93086 A concentric vent kit allows vent and combustion-air pipes to terminate through a single exit in a roof or side wall. One pipe runs inside the other allowing venting through the inner pipe and combustion air to be drawn in through the outer pipe.
  • Page 16 916SA: Product Data ACCESSORIES (continued) PART NUMBER DESCRIPTION 48080M17 60080M21 60100M21 66100M21 66120M24 66140M24 Condensate Neutralizer Kit P908-0001 Gas Valve Tower Port Adapter Kit 92-1003 External Filter Rack, 16 x 25” ACG1625NCF ACG2025NCJ External Filter Rack, 20 x 25” ACG2424NCL External Filter Rack, 24-1/2 x 24”...
  • Page 17 916SA: Product Data ACCESSORIES (continued) Bryant has a wide variety of thermostats for your system, please visit www.Bryant.com to see all thermostat and IAQ products. DESCRIPTION ACCESSORY 14” 17” 21” 24” Bryant Carbon Monoxide Alarm (10 pack) COALMBBNRB02-A10 Bryant Evolution Air Purifier - 16x25 (407x635 mm)
