Bryant 925TA Product Data

925TA
PREFERREDt SERIES TWO- - STAGE
4- -WAY MULTIPOISE
CONDENSING GAS FURNACE, SERIES A

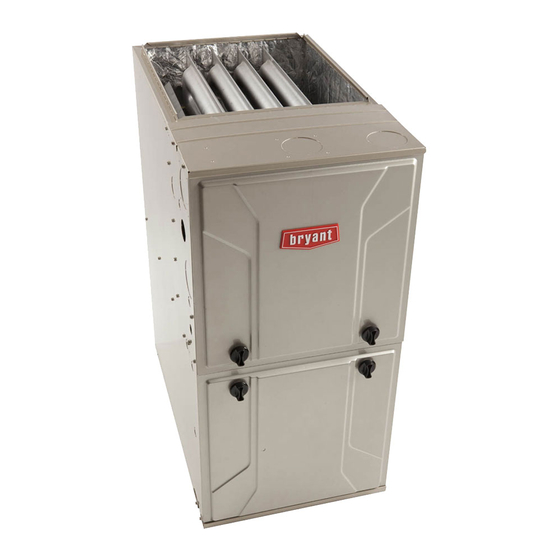

The 925TA Multipoise SEER Boost Condensing Gas Furnace
features two- -stage heating. The Perfect HeatR technology
two- -stage gas valve is at the heart of the comfort provided by this
furnace, along with the multi- -tap ECM blower motor, and
two- -speed inducer motor. With an Annual Fuel Utilization
Efficiency (AFUE) of up to 96.2%, the Preferred two- -stage gas
furnace provides exceptional savings when compared to standard
single- -stage furnaces. This Preferred Gas Furnace also features
4- -way multipoise installation flexibility, and available in six model
sizes. The 925TA can be vented for direct vent/two- -pipe,
ventilated combustion air, or single- -pipe applications. A Bryant
Preferred™ Control and Preferred or Preferred Air Conditioner or
Heat Pump, can be used to form a complete Preferred System. All
units meet California Air Quality Management District emission
requirements. All sizes are design certified in Canada.
STANDARD FEATURES
S Quiet operation. Compare for yourself at HVACpartners.com.
S All sizes meet ENERGY STARR Version 4.0 criteria for gas
furnaces: 95+ AFUE; AMACF electrical rating; 2% or less
cabinet airflow leakage.
Product Data
S Ideal height 35" (889 mm) cabinet: short enough for taller coils,
but still allows enough room for service.
S Preferred Features—match with the Preferred Control for
Preferred System benefits.
S Silicon Nitride Perfect Light™ Hot Surface Igniter.
S SmartEvap™ technology helps control humidity levels in the
home when used with a compatible humidity control system.
S Fan On Plus™ technology allows control of continuous fan
speed from a compatible thermostat.
S External Media Filter Cabinet included.
S 4- -way multipoise design for upflow, downflow or horizontal
installation, with unique vent elbow and optional
through- -the- -cabinet downflow venting capability.
S Approved for Twinning applications (42060 through 66120
sizes, only).
S Boost ECM multiple- -speed blower motor, two- -speed inducer
motor, and two- -stage gas valve.
S Self- -diagnostics.
A11264
S Adjustable blower speed for cooling, continuous fan, and
dehumidification.
S Aluminized- -steel primary heat exchanger.
S Stainless- -steel condensing secondary heat exchanger.
S Propane convertible (see Accessory list).
S Factory- -configured ready for upflow applications.
S Fully- -insulated casing including blower section.
S Convenient Air Purifier and Humidifier connections.
S Direct- -vent/sealed combustion, single- -pipe venting or
ventilated combustion air.
S Installation flexibility: (sidewall or vertical vent).
S Residential installations may be eligible for consumer financing
through the Retail Credit Program.
S Certified to leak 2% or less of nominal air conditioning CFM
delivered when pressurized to 1- -in. water column with all
present air inlets, air outlets, and condensate drain port(s) sealed.
Use of the AHRI Certified
manufacturer's participation in the program. For
verification of certification for individual products,
CERTIFIED
go to www.ahridirectory.org.
1
Mark indicates a
TM
Always Ask For
