- Page 1 Navigation system TravelPilot RGS 05 Operating Instructions...
- Page 2 Important information for road traffic safety Operation while driving As a driver you are solely responsible for your road safety. Use this equipment only in situations where you keep complete control of your vehicle at all times! Remember that, at a speed of 50 kph, you travel a distance of almost 14 m within one second. Route guidance The route guidance system provides you with driving recommendations only.
- Page 4 Control and display elements of the TravelPilot RGS 05 Select character, indication of current position when the Header line vehicle is stationary Input field Select character, page-by-page scrolling through lists, Cursor, press 6 and 8 to move alter zoom range for map display, increase volume of voice...

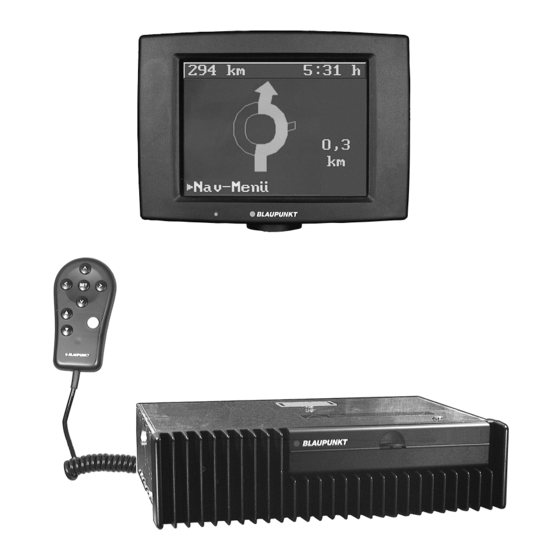

- Page 5 Product information Scope of delivery The TravelPilot RGS 05 is an active route guidance system. TravelPilot RGS 05 After having inserted the corresponding navigation CD containing the The navigation system comprises a high-performance processing area of the current vehicle position and the destination area, you can unit including a CD-ROM disc drive, a remote control, a 5-inch colour use this system in order to be guided to your destination.
-
Page 6: Table Of Contents
Table of contents Switching on the TravelPilot ............ 42 DSC menu (Direct Software Control) ........57 Destination memory ..............57 Entering the destination ............43 Delete curr. dest................59 Dest. from memory ..............44 Enter location ................59 City ....................44 Map info .................. -
Page 7: Switching On The Travelpilot
Switching on the TravelPilot The TravelPilot is activated when you turn on the ignition of your car. The navigation page selected last will appear on the monitor. If the monitor shows the map display, • press ENT to enter into the Nav menu. Nav menu The system will either prompt you to enter a destination or show the destination selected last (destination info). -
Page 8: Entering The Destination
Entering the destination • Use the keys to move the cursor to Enter destination • confirm with ENT. A selection of the possible ways to enter a destination appears on the display: Dest. from memory Prerequisite: You have stored at least one destination. City, if your destination does not correspond to the destination entered last. -
Page 9: Dest. From Memory
Dest. from memory Make sure that you have at least stored one destination in the destination memo- Use the keys to scroll through the list page by page. Select a destination with the cursor keys . Use to move to the left/right of the selected entry. -
Page 10: Centre
Use the keys to move the cursor to the desired destination. You can scroll through the list of cities page by page using the keys. Confirm the en- tered city by pressing the ENT key. Change city Use this item to alter a pre-selected city. Nav menu To abort the entry and return to the Nav menu. -
Page 11: Junction
Nav menu To abort the entry and return to the Nav menu. Junction By specifying a junction you can define your destination more precisely. This function shows you all streets either intersecting with or directly connected to the selected destination street. Choose the junction coming closest to your destination and confirm by pressing the ENT key. -
Page 12: Store Destination
Under Airport and Border crossing you can enter regional and international air- ports as well as border crossings. Store destination Before starting the route guidance func- tion, you can store the entered destina- tion. For this purpose, move the cursor to the line “Store destination”... - Page 13 When driving on a digitised road, you will be guided to your destination with the assistance of spoken driving recommen- dations and direction symbols after the route calculation pro-cess has been com- pleted. During the route guidance proc- ess you can use the keys to in- crease or reduce the voice output vol- ume.
-
Page 14: Destination On Map
100 metres travel to be able to output driving recommendations again. If you have reached your destination, the system displays the corresponding mes- sage and you will hear a voice saying “You have reached your destination”. Af- ter the symbol “destination reached” has disappeared from the display, the system will only show you the name of the cur- rently used street or display “Nav menu”... -
Page 15: Start Route Guidance
Depending on the selected function you can use the button to move the destination symbol to the position to approach next or to change the map scale with the button. When mov- ing the symbol beyond the map limits, the system will display a new map detail au- tomatically. -
Page 16: Information Displayed On Monitor
Information displayed on the monitor During route guidance, two basic monitor modes are available: • Directional symbols (pictograms showing driving recommenda- tions) • Map display Directional symbols If the map display mode is active, use the button to switch to the pictogram mode. -
Page 17: Map Display
Map display If the pictogram mode is active, use the button to switch to the map display mode. The map orientation depends on the scale selected. It is rotated to follow the direction of driving for all scale values up to 20 km; for all other scales as of 20 km, the map is orientated towards the destination. - Page 18 The individual road classes are displayed with the following colours: = Motorways yellow = Federal roads (scale < 100 km) green = Country roads (scale < 10 km) dark green = Major residential roads (scale < 2 km) light brown = Residential roads (scale <...
-
Page 19: Info Menu
Info menu Info menu Location map The map showing the current vehicle location is rotated towards the direc- tion of driving. Use the keys to change the scale from 100 m to 200 km. Vehicle is stationary: Back to the Nav menu with ENT. During the trip: By pressing the ENT key the TravelPi- lot will show the destination info for... -
Page 20: Route List
Route list Listing of all streets from the current position to the destination. Page through the list using the keys. Quit with Info menu. Autozoom Shows the location , destination and route using the largest possible scale. = current vehicle location = destination The map is generally oriented to mag- netic north. -
Page 21: Destination Area
Destination area This option shows the destination area with a scale of 100 m to 200 km to be selected with the keys. The map is oriented to magnetic north. Scale changes made using the Destination area function have no effects on the scale used in the nor- mal map mode. -
Page 22: Dsc Menu (Direct Software Control)
DSC menu (Direct Software Control) The DSC menu contains the following items: Nav menu Destination memory Delete curr. dest. Enter location Map info Audio GPS status Standby time Version Calibrate Demo Nav menu Back to the Nav menu. Destination memory Use this item to edit the destination memory. - Page 23 No sort Resets the sorting to the order of en- try. Store destination Stores the destination entered last. You can enter a short name in order to find the destination more quickly. If you do not want to record such a name, press the ENT key.
-
Page 24: Delete Curr. Dest
Delete curr. dest. The destination entered last (i.e. the current one) will be deleted. The TravelPilot will prompt you to en- ter a new destination. Enter location If the vehicle has been transported on a car-train or ferry, it will be necessary to re-position the system to the new vehicle location. - Page 25 Map location Using the menu items on the left side it is easily possible to change the function of the button. From top to bottom the menu items have the following functions: 1. Move vehicle symbol to the left, right or up,down 2.
-
Page 26: Map Info
Map info When selecting this menu, the follow- ing items will be available: DSC menu Back to the DSC menu. Distance Remaining distance to the destination. Travel time Remaining time until reaching the des- tination. Recommendation Pictogram showing the driving recom- mendation. -
Page 27: Audio
Audio Local language From the displayed list of languages you can select a language of your choice to be used for displaying the messages and for voice output. Note: When changing the language or se- lecting a new one, the system will au- tomatically re-boot the voice output. - Page 28 Switch off Use this option to switch off the voice output Switch on Use this option to switch on the voice output. Volume When this option is active, you can use the keys to adjust the basic volume (initial volume when turning on the system) while a spoken message is being output.
-
Page 29: Gps Status
GPS status Use this option for information on whether or not GPS correction is switched on or off, how many satel- lites are available and how many re- ceived. The TravelPilot shows the cur- rent location (geographical longitude and latitude). GPS on or GPS off The system indicates the currently active setting in the upper part of the... -
Page 30: Version
During the standby period the display will remain dark; however, the condi- tion adjusted last will remain stored. As soon as the vehicle is started again, the last status will be displayed and the route guidance function will be continued automatically. In order to avoid that the battery goes flat you should choose a max. -
Page 31: Example For Destination Entry
Example for destination entry Selected destination: Stuttgart, Karlstraße/Markstraße junction Use the cursor to select the following menu items one after the other and confirm with ENT: • Nav menu • Enter destination • City The header of the screen shows “Enter city”. Select the character “S”: •... - Page 32 Note: If you cannot find the desired place within the list of cities, you can use keys to scroll the listing page by page. In order to enter the destination “Karlstraße/Marktstraße junction”, • move the cursor to Street/Junction and • confirm with ENT.
- Page 33 Note: After the first scrolling a street called “KARL-STRASSE,KÖNI” will appear on the monitor. This street name is too long in order to be shown in one display. Press the key to read the rest of the name. The correct name of this street is “KÖNIG-KARL-STRASSE”, therefore continue to scroll forwards.
-
Page 34: Autonomous Route Guidance
Autonomous route guidance After entering the destination and activating the route guidance function, the system begins to calculate the route leading to your destination. You can now start to drive. The system provides you with an acoustic and visual message saying “the route (to destination) is being calculated”. -
Page 35: Demo Mode
Demo mode To activate the demo mode proceed as follows: 1. Select GPS status in the DSC menu and turn GPS off. 2. Select Enter location in the DSC menu and then city, street and the corresponding junction as usual. When you have entered the junction it is advisable to set the location to 50 m ahead. -
Page 36: Annex
Annex CD-ROM The data required for the route guidance function is digitally stored on the CD-ROM. For more information on the contents please refer to the CD booklet. Calibration Caution: A faulty calibration can lead to a complete failure of the system. -
Page 37: Changing The Cd
Changing the CD The CD-ROM can only be changed if the vehicle is stationary. The system must be switched on. Open the flap on the navigation computer and • press the button. The cartridge ejects. You can now put a different disc into the cartridge (label side facing up, cartridge in the direction of the arrow) and slowly insert it into the CD slot. - Page 38 Blaupunkt-Werke GmbH Bosch Gruppe 01/97 K7/VKD 8 622 400 441 (A7)
