  • Page 1 RACPWS4...

  • Page 2: Intended Use

    Safety, performance, and dependability have ■ Do not use the product if important parts, been given top priority in the design of your such as safety devices, high-pressure electric high pressure cleaner. hoses, or trigger gun, are damaged. ■ Exercise caution when opening the trigger. INTENDED USE Hold the trigger handle firmly with two hands to avoid injury when the trigger handle kicks...

  • Page 3: Additional Safety Warnings

    ■ Do not use the product if the power cord ■ Do not use the product in temperatures or other important parts, such as safety below 0°C. devices, are damaged. ■ Do not use acids, alkalines, solvents, ■ Check the power cord and the extension cord flammable material, bleaches, or industrial for damage before each use.

  • Page 4: Overload Protection

    TRANSPORTATION AND STORAGE ■ Regularly inspect and maintain the product for safe operation. RYOBI recommends CAUTION! Mind the weight of the product when selecting the storage location and during inspecting the product every 6 months. transportation to prevent accidents or injuries.

  • Page 5: Symbols On The Product

    SYMBOLS ON THE PRODUCT Read and understand Guaranteed sound power level all instructions before operating the product. Follow all warnings and safety Waste electrical products instructions. should not be disposed of with Wear a complete personal household waste. Recycle protective equipment when where facilities exist.
  • Page 6 Original Instructions...

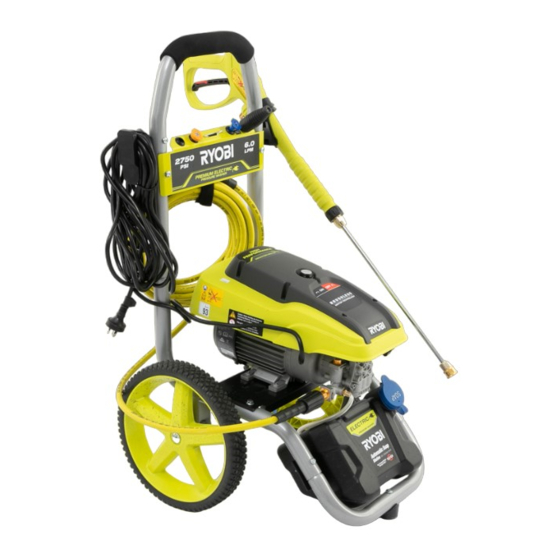

  • Page 7 RACPWS4 Water outlet port On/Off switch Hose adaptor Detergent tank cap Detergent tank Power cord holder Power cord Handle 15° nozzle Soap nozzle Turbo nozzle Trigger handle holder High pressure hose Spray wand Trigger handle Trigger lock out Trigger Operator's manual...
  • Page 8 Wear full eye and ear protection, Install the wheels on each side of the product. Insert the lock pins on both sides protective gloves, substantial footwear, to secure the wheels. and long trousers at all times while operating the product. Do not operate the product when barefoot or wearing open sandals.
  • Page 9 Push and hold the push-pin buttons on Connect the hose collar of the high pressure hose into the water outlet port and the rear side of the frame as you slide turn it clockwise to secure the hose. Avoid cross-threading the collar and the outlet the handle over the frame.
  • Page 10 Using the turbo Using the soap Using the high p.11 p.12 p.13 pressure washer nozzle nozzle Cleaning the Moving the Storing the p.14 p.15 p.16 product product product...
  • Page 11 USING HIGH PRESSURE WASHER 1. Connect the product to the power outlet. 2. Press the on/off switch to turn on the product. 3. Push down the trigger lock out until it clicks into place. Squeeze and hold the trigger to operate the product. WARNING: Check the work area before each use.
  • Page 12 USING THE TURBO NOZZLE 1. Engage the lock out on the trigger handle. Push the lock out upwards until it clicks into the slot. 2. Pull back the spray wand collar. Remove the soap nozzle from the collar. 3. Pull back the spray wand collar and insert the turbo nozzle into the collar until it clicks into place.
  • Page 13 USING THE SOAP NOZZLE 1. Engage the lock out on the trigger handle. Push the lock out upwards until it clicks into the slot. 2. Pull back the spray wand collar. Remove the turbo nozzle from the collar. 3. Pull back the spray wand collar and insert the soap nozzle into the collar until it clicks into place.

  • Page 14: Moving The Product

    MOVING THE PRODUCT 1. Press the on/off switch to the off position. Turn off the water supply. 2. Disconnect the product from the power outlet. Store the power cord properly. 3. Push down the trigger lock out until it clicks into place. Squeeze the trigger to release water pressure.

  • Page 15: Cleaning The Product

    CLEANING THE PRODUCT 1. Press the on/off switch to the off position. Disconnect the product from the power outlet. 2. Clean the product using a dry cloth. WARNING: Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents.

  • Page 16: Storing The Product

    STORING THE PRODUCT 1. Press the on/off switch to the off position. 2. Turn off the water supply. 3. Disconnect the product from the power outlet. Store the power cord properly. 4. Push down the trigger lock out until it clicks into place.
  • Page 17 6. Turn the high pressure hose collar counterclockwise and then disconnect the hose from the water outlet port. 7. Pull back the spray wand and disconnect the current nozzle from the collar. 8. Insert the nozzles into their designated holders. 9.

  • Page 18: Product Specifications

    Electric high pressure cleaner measured in accordance with a standardised Model RACPWS4 test and may be used to compare one tool with Rated voltage 220 - 240 V a.c. another. They may be used for a preliminary assessment of exposure.
  • Page 20 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961479073-01...
