Mackie Control C4 Note

The Mackie Control C4 provides easy editing of
DSP and virtual instrument plug-in parameters. Its
fl exibility allows you to make simple or complex
edits across multiple parameters quickly and pre-
cisely.
It can be used as a standalone controller, or in
conjunction with Mackie Control Universal, Logic
Control, or Extenders for complete analog-style
control over instruments and plug-ins.
The Mackie Control C4 is automatically detected
and set up by Logic Pro 7, simply by connecting
the unit and launching the application. To confi gure
it for optimum performance with Logic Pro 7, we
recommend you make the following simple modifi ca-
tions to the default software settings.

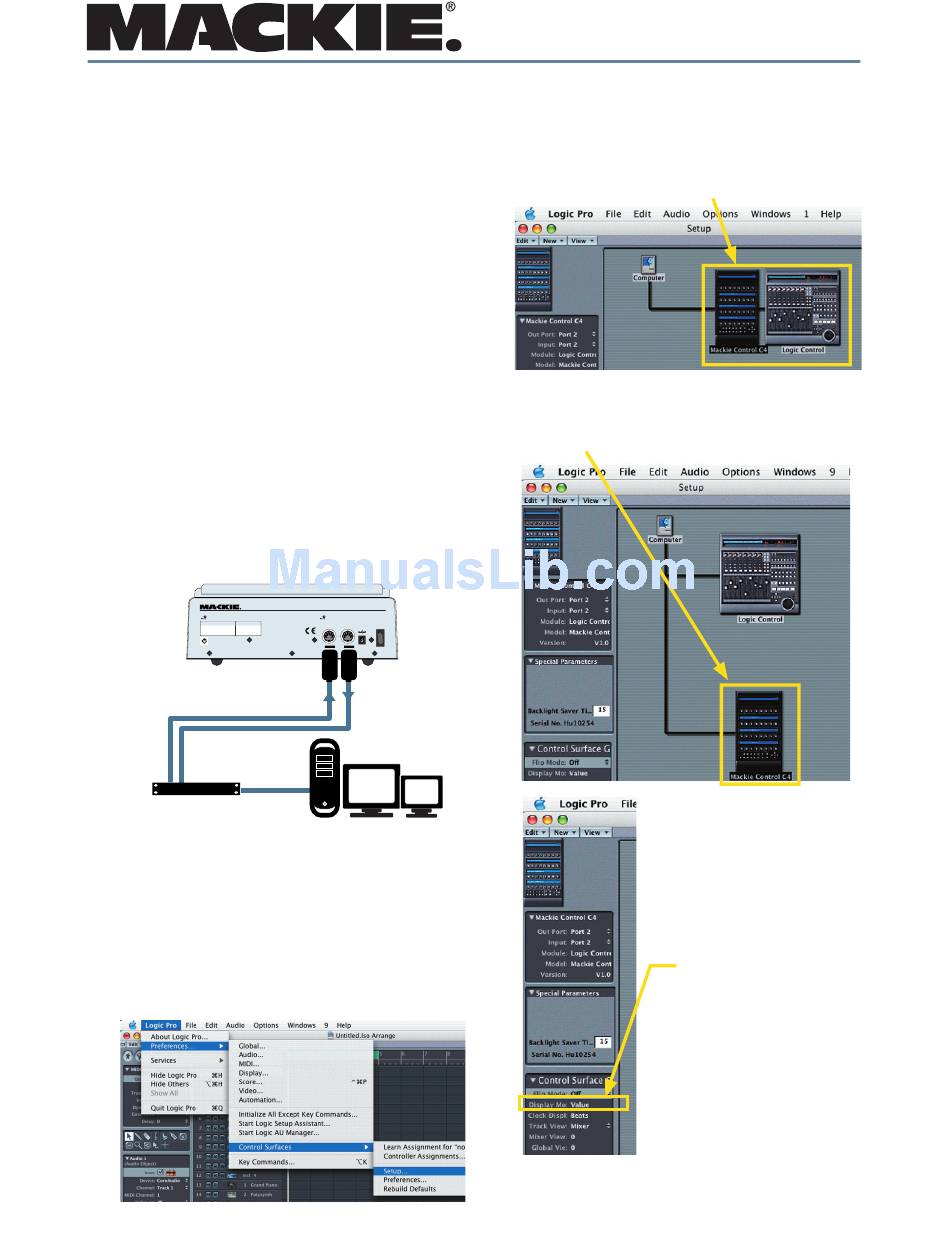

Installation
• Connect the Mackie Control C4 to your MIDI
interface via two MIDI cables (IN and OUT).
• Connect one end of the external power supply to
the Mackie Control C4, and the other end to an
AC power source between 90 V and 264 V AC
(50–60 Hz).
THE FOLLOWING ARE TRADEMARKS OR REGISTERED TRADEMARKS OF MACKIE DESIGNS INC "MACKIE" AND THE "RUNNING MAN" FIGURE
SERIAL NUMBER MANUFACTURING DATE
CONCEIVED, DESIGNED, AND MANUFACTURED BY MACKIE DESIGNS INC. • WOODINVILLE • WA • USA • MADE IN USA • FABRIQUE AU USA • COPYRIGHT ©2002
Serial or
USB Connection
Multiport
MIDI Interface
• Turn on the Mackie Control C4 POWER switch.
Setting up
• Launch Logic Pro 7.
• In the "Logic Pro" pulldown menu, select:
Preferences > Control Surfaces > Setup...
©2004 LOUD Technologies Inc. All Rights Reserved.
4
CONTROL C
IN MIDI OUT EXTERNAL POWER
POWER
–
+
MIDI MIDI
IN OUT
Digital Audio Workstation
Mackie Control C4 Tech Note:
Optimizing with Logic Pro 7
• The C4 icon will appear, as if by magic.
Note: If your setup includes a Mackie Control
Universal or Logic Control, the C4 will be auto-
matically confi gured by Logic Pro 7 as a part of
the Logic Control Surface Group.
It is recommended that you confi gure the C4 as
its own Control Surface Group. Simply click and
drag the C4 icon below the Logic Control icon.
•
•
•
•
"Mackie." and the "Running Man" are registered trademarks of LOUD Technologies Inc. All
other brand names mentioned are trademarks or registered trademarks of their respective
holders, and are hereby acknowledged.
Click once on the C4
icon to select it, and the
Setup Parameters menu
will appear to the left of
the Setup Window.
In this menu, change
the "Display Mode" to
VALUE (instead of the
default of NAME).
That's it, off you go!
Please read the Logic
Pro 7 owner's manual
for more details of the
application-specifi c
operation of the Mackie
Control C4.
Part No. SW00168 Rev A 11/04
®
