Mackie FR Series M.1400i Brochure

2/25/98

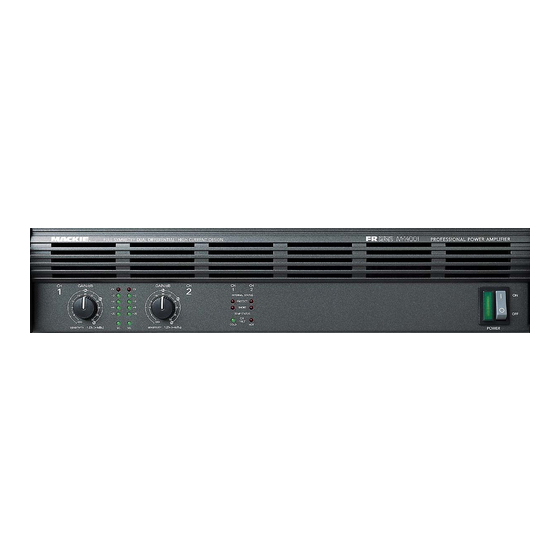

FAST RECOVERY SERIES HIGH CURRENT POWER AMPLIFIER
The world is full of amplifiers that do one thing –
amplify audio signals. But at Mackie Designs, we've
always put out the extra effort to provide more qual-
ity and more features than our competitors while
maintaining a comparable (or lower) price.
The FR Series™ power amplifiers are designed to
perform reliably under the most adverse conditions,
and we've added a bundle of extra features, so you
don't have to put out the extra bucks to buy a
bunch of add-ons or plug-ins to make your sound
system do what you want it to do.
FEATURES
Fast Recovery design
for improved tran-
sient response and
recovery from clip-
ping
Rack-mountable (2U)
with rear support
rails for extra support
Separate left and
right detented gain
controls, calibrated in
both dB and volts
Balanced XLR and
1/4" TRS input jacks
Balanced XLR thru
jacks
Heavy-duty binding
post output jacks in
parallel with 1/4" TS
output jacks
6 LED metering
including Signal
Present and Overload
Four levels of protec-
tion circuitry
1) Automatic turn-on
delay to prevent
thumps and pops
from reaching your
speakers
TM
2) Short-circuit
protection with
separate L/R indicat-
ing LEDs
3) Thermal protection
with combined CH1
and CH2 Cold and Hot
indicating LEDs
4) SCR Crowbar DC
offset protection
Low-cut filter with
variable frequency
control (Off – 170Hz)
Infrasonic 1 stabiliza-
tion eliminates ultra-
low-frequency noise
caused by micro-
phone handling,
stage rumble
Constant directivity
horn compensation
with variable high-
frequency boost
control (2kHz to
6kHz)
Amp Mode switch for
Stereo, Mono, or
Bridge modes
Limiter to eliminate
clipping in both
channels
1 a.k.a. Subsonic.
®
with Architects and
Engineers Specifications
MORE INFORMATION
CHECK OUT OUR
WEBSITE
WWW.MACKIE.COM
"IN YOUR FACE"
ALL PRODUCT
BROCHURE
Subwoofer mode
switch with dual-
frequency select
(63Hz/125Hz)
T-Design Constant
Gradient Cooling
Tunnel uses two
short tunnels instead
of one long tunnel
for improved cooling
efficiency and output
device reliability
Dual-speed cooling
fan
Toroidal transformer
for reduced EMI
emissions
