&RQQHFWLQJ#WKH#$HULDO#DQG#9&5 &RQQHFWLQJ#WKH#$HULDO#DQG#9&5
&RQQHFWLQJ#WKH#$HULDO#DQG#9&5 &RQQHFWLQJ#WKH#$HULDO#DQG#9&5
If connecting a VCR, follow A
If not connecting a VCR, follow 1.
To operate T-V LINK functions, a T-V LINK compatible VCR
must be connected to the EXT-2 terminal on the TV. For de-
tails about T-V LINK functions, see "T-V LINK FUNCTIONS"
on page 5.
Note:
• For further details, refer to the manuals provided with the
devices to be connected.
• The connecting cables are not provided.
• A video can be viewed from the VCR without performing
C . For details, refer to your VCR instruction manual.
• To connect additional external devices, please see "AD-
DITIONAL PREPARATION" on page 31.
• To connect speakers and amplifier, please see "Con-
necting Speakers/Amplifier" on page 32.
• When a decoder is connected to a T-V LINK compatible
VCR, set the DECODER (EXT-2) function to ON. For de-
tails, see "Using the DECODER (EXT-2) function" on
page 29. Otherwise, you will not be able to view scram-
bled channels.
&RQQHFWLQJ#WKH#SRZHU#FRUG#WR#WKH#$&#RXWOHW &RQQHFWLQJ#WKH#SRZHU#FRUG#WR#WKH#$&#RXWOHW &RQQHFWLQJ#WKH#SRZHU#FRUG#WR#WKH#$&#RXWOHW &RQQHFWLQJ#WKH#SRZHU#FRUG#WR#WKH#$&#RXWOHW
Caution:
• Operate only from the power source specified
(AC 220 – 240 V, 50 Hz) on the unit.
3XWWLQJ#%DWWHULHV#LQWR#WKH#5HPRWH#&RQWURO 3XWWLQJ#%DWWHULHV#LQWR#WKH#5HPRWH#&RQWURO
3XWWLQJ#%DWWHULHV#LQWR#WKH#5HPRWH#&RQWURO 3XWWLQJ#%DWWHULHV#LQWR#WKH#5HPRWH#&RQWURO
Use two AAA/R03 dry cell batteries.
Insert the batteries from the ó end, making sure the ô and ó
polarities are correct.
To open the battery compartment, slide the door downwards and
lift off. Replace the door by sliding it upwards until it is secure.
Note:
• Follow the warnings printed on the batteries.
• Battery life is about six months to one year, depending on
your frequency of use.
• If the remote control does not work properly, replace the
batteries.
• The batteries we supply are only for setting up and test-
ing your TV, please replace them as soon as necessary.
• Always use good quality batteries.

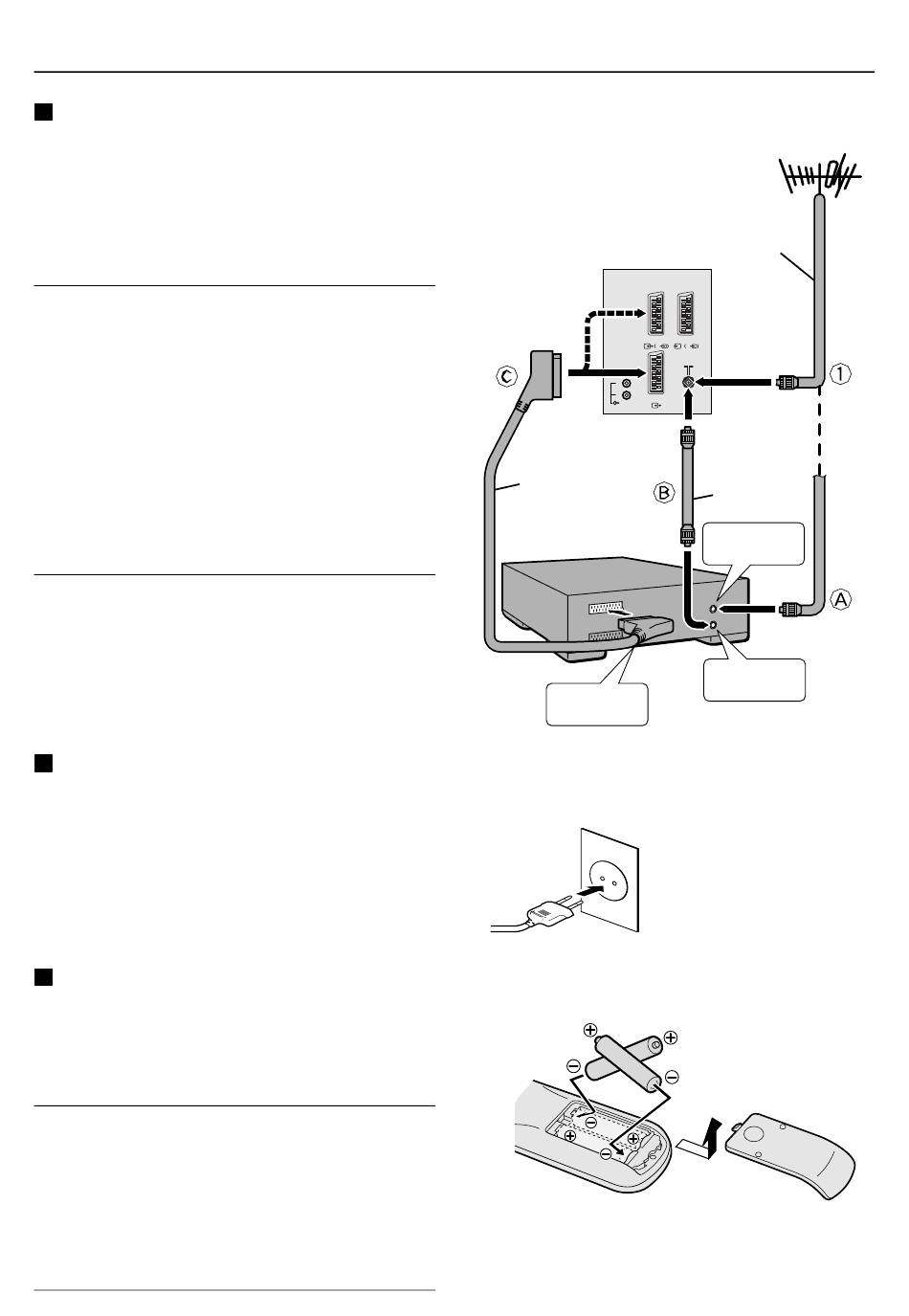

5
B C .
→ →
Back of the TV
2 3
EXT- EXT-
S S
L
R
1
EXT-
AUDIO OUT
21-pin SCART
Cable
VCR
AV IN/OUT
Terminal
Aerial
75-ohm
Coaxial
Cable
75-ohm
Coaxial
Cable
To Aerial
Input
To Aerial
Output
