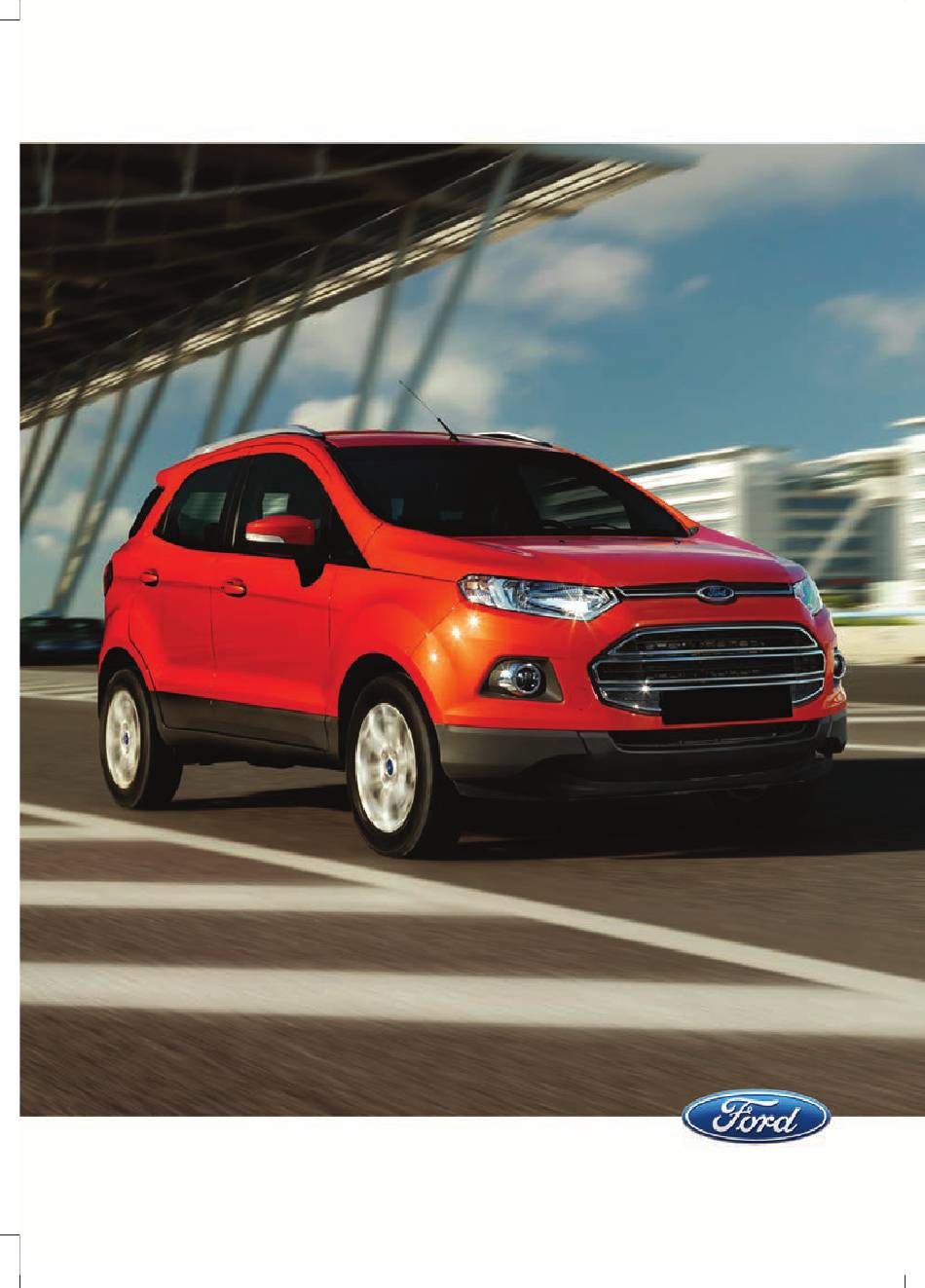

  • Page 1 FORD ECOSPORT Owner's Manual...
  • Page 2 No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted. © Ford Motor Company 2016 All rights reserved. Part Number: 20160311020047...

  • Page 3: Table Of Contents

    Table of Contents Doors and Locks Tailgate - Vehicles With: Keyless Vehicle System ..........3 (G1822003) Wipers and Washers Windshield Wipers ......4 (G1822875) Autowipers ...........4 (G1822879) Windshield Washers ......5 (G1822877) Rear Window Wiper and Washers ..............6 (G1822876) Lighting Lighting Control ........7 (G1822885) Direction Indicators ......7...
  • Page 4 Ecosport (CBY) Thailand, enTHA...

  • Page 5: Doors And Locks

    Doors and Locks Closing the Tailgate TAILGATE - VEHICLES WITH: KEYLESS VEHICLE SYSTEM Note: Your vehicle will remain unlocked when you have closed the tailgate. (G1822003) Press the lock button on the tailgate handle or remote control to lock your Opening the Tailgate vehicle.

  • Page 6: Wipers And Washers

    Wipers and Washers Intermittent Wipe WINDSHIELD WIPERS (G1822875) Note: Fully defrost the windshield before switching on the windshield wipers. Note: Make sure you switch off the windshield wipers before entering a car wash. Note: Install new wiper blades as soon as they begin to leave bands of water and smears on the windshield.

  • Page 7: Windshield Washers

    Wipers and Washers Note: During wet or winter driving Keep the outside of the windshield clean conditions with ice, snow or a salty road because the rain sensor is very sensitive. If mist, inconsistent or unexpected wiping or the area around the interior mirror is dirty, smearing may occur.

  • Page 8: Rear Window Wiper And Washers (G1822876)

    Wipers and Washers REAR WINDOW WIPER AND WASHERS (If Equipped) (G1822876) Intermittent Wipe E102053 Pull the lever toward you to operate the washers. When you release the lever, the wiper will operate for a short time. Note: The lever arrangement is mirrored in E102052 right-hand drive vehicles.

  • Page 9: Lighting

    Lighting High Beams LIGHTING CONTROL (G1822885) Lighting Control Positions E101829 Pull the lever fully toward you to switch the high beams on. Pull the lever fully toward you again to switch the high beams off. Note: The lever arrangement is mirrored in right-hand drive vehicles.
  • Page 10 Lighting Tap the lever up or down to make the direction indicators flash three times to indicate a lane change. Note: The lever arrangement is mirrored in right-hand drive vehicles. Note: For vehicles with an information display, you can change the number of times the direction indicators will flash.

  • Page 11: Information Displays

    Information Displays Press the button to scroll through the TRIP COMPUTER (If Equipped) (G1822887) displays: STANDARD total distance odometer trip odometer average fuel economy speed alarm average speed distance to empty outside ambient temperature (always displayed) E146272 You can reset the trip odometer, average fuel economy and average speed.
  • Page 12 Information Displays The speed alarm can be set to work with Note: The maximum selectable speed for the following speeds: 30, 40, 50, 60, 70, the alarm is 140 km/h. If you continue to 80, 90, 100, 110, 120, 130, 140 km/h. press the reset button with short presses the display will go back to the OFF mode The process to switch the speed alarm ON...
  • Page 13 Information Displays 4. To save this speed, wait five seconds 4. To save this speed, wait five seconds on this screen or press the button after on this screen or press the button at least two seconds. You will hear a during for at least two seconds.

  • Page 14: Fuel And Refueling

    Fuel and Refueling Fuels containing the octane booster FUEL QUALITY - E85, additive, methylcyclopentadienyl THAILAND (G1817838) manganese tricarbonyl (MMT). Leaded fuel (using leaded fuel is Choosing the Right Fuel - Flex Fuel prohibited by law). Vehicles Note: Flex fuel vehicles can be fueled with WARNING gasoline, ethanol or a mixture of both.

  • Page 15: Fuses

    Fuses FUSE SPECIFICATION CHART (G1824638) Engine Compartment Fuse Box E223999 (G1824638) Ecosport (CBY) Thailand, enTHA...
  • Page 16 Fuses Fuse Fuse rating Circuits protected 60 A Cooling fan high speed relay. 40 A Heater blower relay. 60 A Passenger junction box. Spare. Spare. 30 A Body control module - Locking. Low beam right-hand side, IP illumination (Head lamp switch/Hazard switch/Control module heated blower (Manual A/C)/Gear shift (AT)).
  • Page 17 Fuses Fuse Fuse rating Circuits protected Driving ignition coil. Cooling fan low speed relay coil/Cooling fan high speed relay coil/Powertrain control module Power supply/Canister purge valve. Variable camshaft timing 1&2/CMS/HEGO/VSS/ Mass air flow sensor. Spare. 7.5A A/C clutch relay. ABS+ESP. Fog lamp relay.
  • Page 18 Fuses Fuse Fuse rating Circuits protected Spare. Spare. Spare. Relay Circuits switched Powertrain control module. Spare. Cooling fan low speed. Spare. Backup lamp. High beam. A/C clutch. Dual horn. Fog lamp. Start inhibit. Cooling fan high. Heater blower. Fuel pump. Spare.
  • Page 19 Fuses Passenger Compartment Fuse Box E144835 Fuse Fuse rating Circuits protected 7.5 A A/C clutch. Rain sensor. Auto-dimming interior mirror. 10 A Brake lamp. 7.5 A Reversing lamp. 7.5 A Headlamp leveling. 20 A Windshield wipers. 15 A Rear window wiper. 15 A Windshield washer pump.
  • Page 20 Fuses Fuse Fuse rating Circuits protected Ignition switch or keyless ignition relay, keyless accessory 15 A relay. Instrument cluster. 15 A Data link connector. Heating control head (manual A/C), electronic auto- matic temperature control, receiver remote (vehicles 7.5 A with keyless system), integrated control panel, multi- function display.
  • Page 21 Fuses Fuse Fuse rating Circuits protected 20 A Front auxiliary power points. 20 A Rear auxiliary power points. Not used. 30 A Driver door window. Passenger door window. Rear door window right-hand side. Rear door window 30 A left-hand side. Not used.
  • Page 22 (G1824638) Ecosport (CBY) Thailand, enTHA...
  • Page 23 Index Autowipers ..........4 Tailgate - Vehicles With: Keyless Vehicle (G1822879) System ..........3 (G1822003) Closing the Tailgate..........3 Opening the Tailgate..........3 Direction Indicators ......7 Trip Computer ........9 (G1822884) (G1822887) Doors and Locks..........3 STANDARD...............9 TRIP COMPUTER OPTIONAL......9 Fuel and Refueling..........12 Fuel Quality - E85, Thailand ...12 Washers (G1817838)
