Nedis CSWI3702BK - 2-Port DisplayPort Switch. Bi-directional Manual
Intended use
The product is exclusively intended for switching between DisplayPort signals.
The product is not intended for professional use. Any modification of the product may have consequences for safety, warranty and proper functioning.

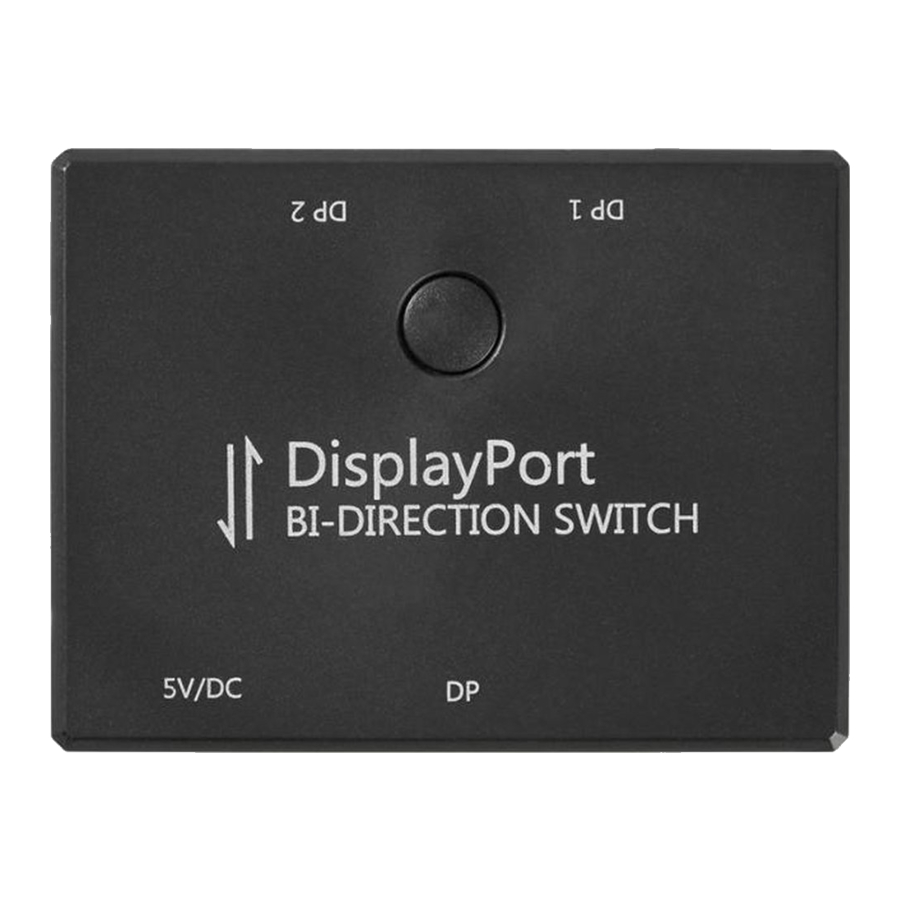

Parts list [Image A]
- DP 2
- DP 1
- Switch button
- DC connector
- DP
- Power cable
Safety instructions
- Only use the product as described in this manual.
- Do not use a damaged product.
- Do not expose the product to direct sunlight, naked flames or heat.
- Do not expose the product to water or moisture.
- Place the product on a stable and flat surface.
- Do not drop the product and avoid bumping.
- Do not open the product.
- Keep the product out of reach from children.
- Make a backup of your data prior to first use.
Connect the 2-port DisplayPort bi-direction switch
Depending on the configuration you want to use, follow the instructions accordingly.
Configuration A
Make sure all the devices you want to connect have been turned off.
- Plug a DisplayPort cable into the DP 1 port 2 of the DisplayPort bi-direction switch.
- Plug the other end of the DisplayPort cable into the PC.
Repeat these steps for every source you want to connect.
- Plug a DisplayPort cable into the DP port 5 of the DisplayPort bi-direction switch.
- Plug the other end of the DisplayPort cable into the monitor.
Configuration B
Make sure all the devices you want to connect have been turned off.
- Plug a DisplayPort cable into the DP 1 port 2 of the DisplayPort bi-direction switch.
- Plug the other end of the DisplayPort cable into the monitor.
Repeat these steps for every source you want to connect.
- Plug a DisplayPort cable into the DP port 5 of the DisplayPort bi-direction switch.
- Plug the other end of the DisplayPort cable into the PC.
Connect to the mains
- Plug the power cable 6 into the DC connector 4.
- Plug the power cable 6 into a power adapter or into a working USB-A female port.
- Plug the power adapter into the mains, when a power adapter is used.
Using the 2-port DisplayPort bi-direction switch
In configuration B, only one monitor can be used simultaneously.
Configuration A
- Switch on the PCs and the monitor. One of the PCs will now be shown on the connected monitor.
- Switch between the PCs using the switch button 3.
Configuration B
- Switch on the PC and the monitors.
One of the monitors will now show the PCs input.
- Switch between the monitors using the switch button 3.
Specifications
Product
|
2-port DisplayPort bidirection switch
|
Article number
|
CSWI3702BK
|
Dimensions (l x w x h)
|
80 x 60 x 17 mm
|
Resolution
|
Up to 4K2K at 60 Hz
|
Data rate
|
5.4 Gbps
|
Input voltage
|
5 V
|
Input current
|
0.5 A
|
Cable length
|
1 m
|
Configuration A |
Input |
2x DisplayPort female |
Output |
1x DisplayPort female |
Configuration B |
Input |
1x DisplayPort female |
Output |
2x DisplayPort female |
