Technical Information

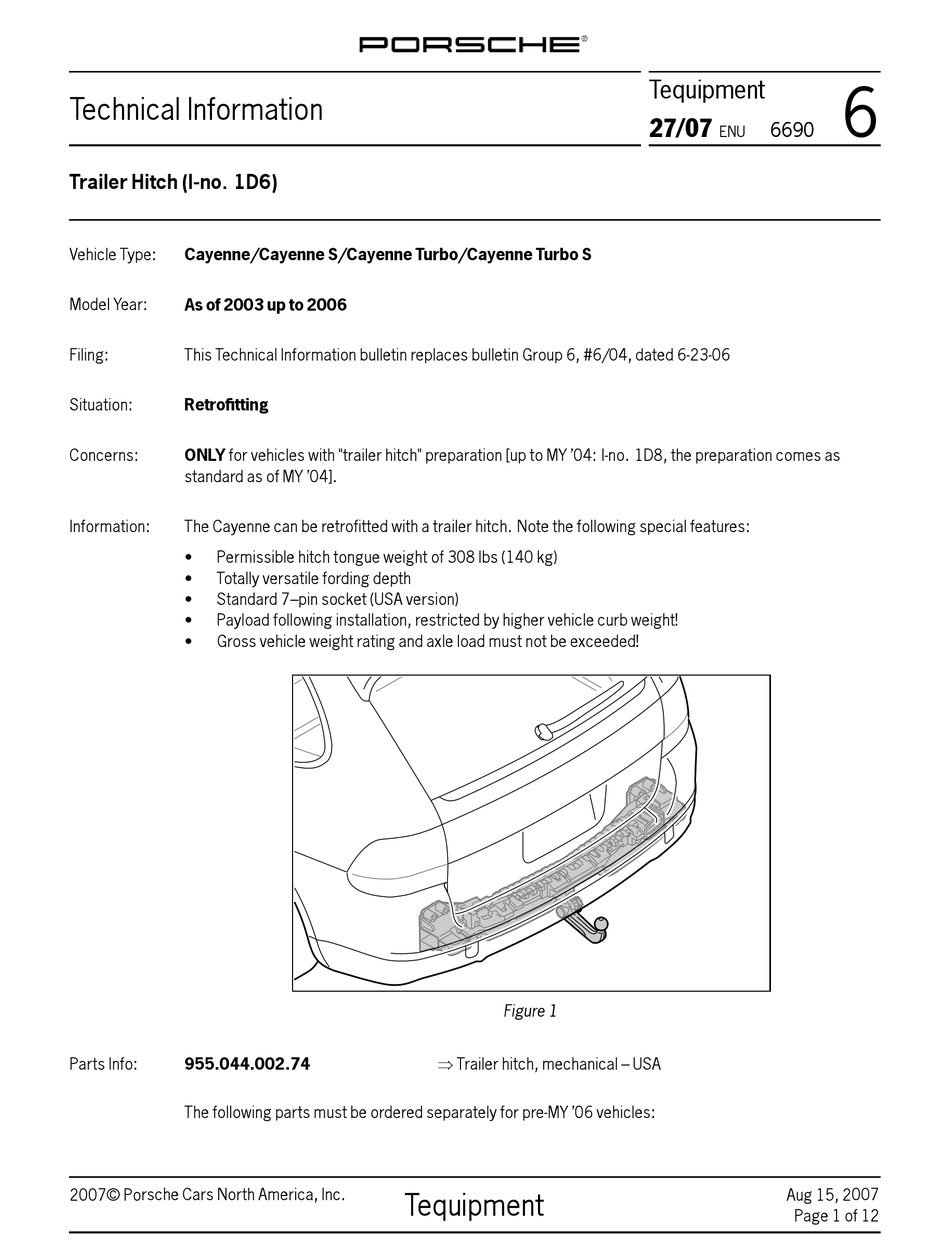

Trailer Hitch (I-no. 1D6)
Cayenne/Cayenne S/Cayenne Turbo/Cayenne Turbo S
Vehicle Type:
As of 2003 up to 2006
Model Year:
Filing:
This Technical Information bulletin replaces bulletin Group 6, #6/04, dated 6-23-06
Situation:
Retrofitting
Concerns:
ONLY for vehicles with "trailer hitch" preparation [up to MY '04: I-no. 1D8, the preparation comes as
standard as of MY '04].
Information:
The Cayenne can be retrofitted with a trailer hitch. Note the following special features:
•
Permissible hitch tongue weight of 308 lbs (140 kg)
•
Totally versatile fording depth
•
Standard 7–pin socket (USA version)
•
Payload following installation, restricted by higher vehicle curb weight!
•
Gross vehicle weight rating and axle load must not be exceeded!
Parts Info:
955.044.002.74
The following parts must be ordered separately for pre-MY '06 vehicles:
2007© Porsche Cars North America, Inc.
Figure 1
⇒ Trailer hitch, mechanical – USA
Tequipment
Tequipment
27/07
6690
ENU
Aug 15, 2007
Page 1 of 12
