Optoma ZK507-W User Manual

Hide thumbs Also See for ZK507-W:
Table of Contents

Advertisement

Quick Links

Download this manual
DLP
Projector
®
User manual

Advertisement

Table of Contents
loading

Related Manuals for Optoma ZK507-W

Summary of Contents for Optoma ZK507-W

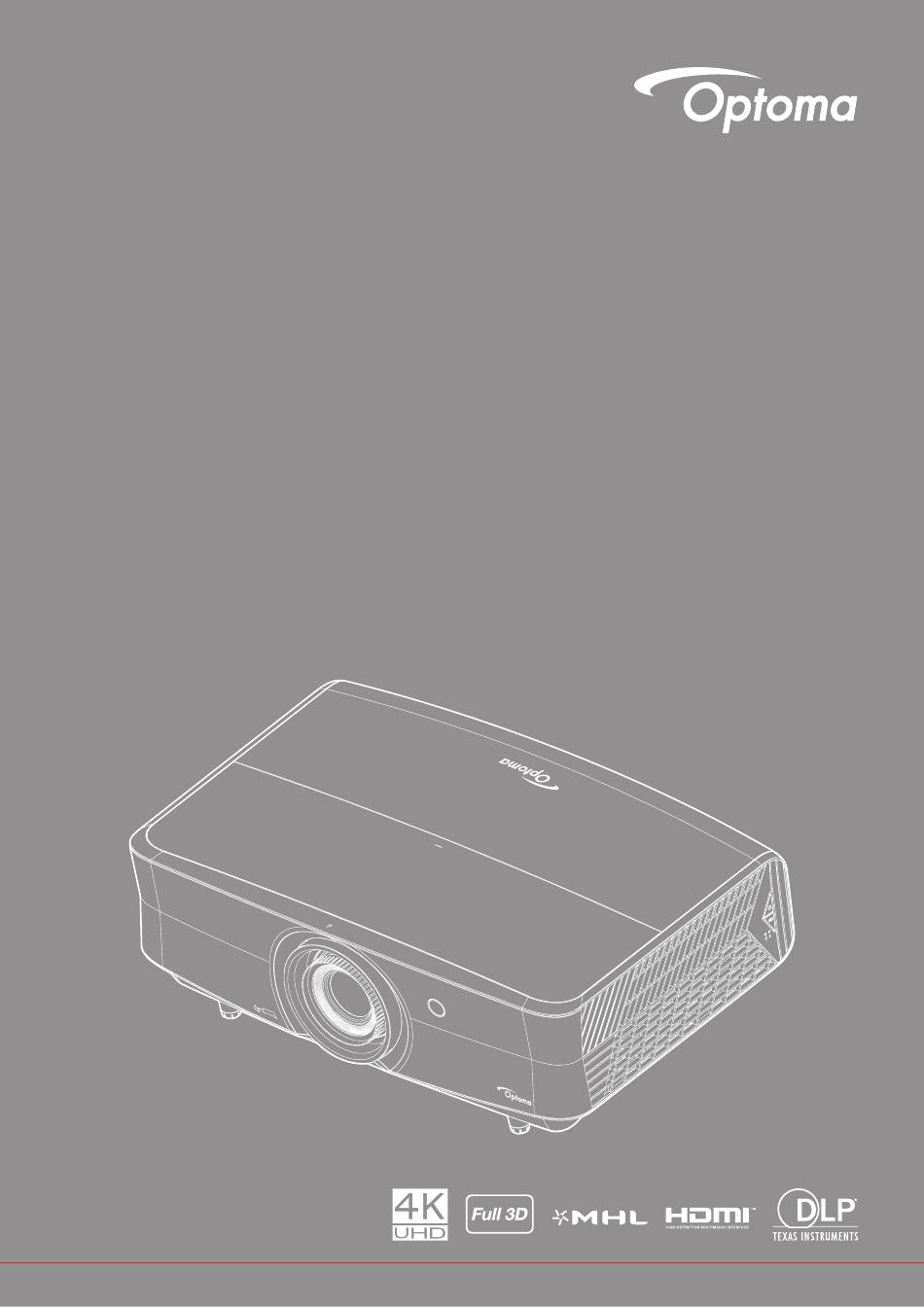

  • Page 1 Projector ® User manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ....................4 Important Safety Instruction....................... 4 Laser Radiation Safety Information ................... 5 3D Safety Information ........................ 6 Copyright ........................... 6 Disclaimer ..........................6 Trademark Recognition ......................7 FCC ............................7 Declaration of Conformity for EU countries ................8 WEEE ............................
  • Page 3 Compatible resolutions ......................53 Image size and projection distance ..................56 Projector dimensions and ceiling mount installation ..............57 IR remote codes ........................58 Troubleshooting ........................62 Warning indicators ........................64 Specifications ........................... 66 Optoma global offices ....................... 67 English...

  • Page 4: Safety

    ‡ Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. ‡ See projector enclosure for safety related markings.

  • Page 5: Laser Radiation Safety Information

    ‡ When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down. ‡ Turn off and unplug the power plug from the AC outlet before cleaning the product. ‡...

  • Page 6: 3D Safety Information

    ‡ IEC 60825-1: 2014 Class 1 RG2 IEC 62471-5:2015 RG2 ‡ Additional instructions to supervise children, no staring, and not use optical aids. ‡ Additional instructions to install above the reach of children. ‡ Notice is given to supervise children and to never allow them to stare into the projector beam at any distance from the projector.

  • Page 7: Copyright

    projection and rest. ‡ Do not use the 3D glasses for any other purpose than for watching 3D projection. ‡ Wearing the 3D glasses for any other purpose (as general spectacles, sunglasses, protective goggles, etc.) may be physically harmful to you and may weaken your eyesight. ‡...

  • Page 8: Declaration Of Conformity For Eu Countries

    Caution Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector. Operation Conditions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.

  • Page 9: Introduction

    Projector Remote control Power lead Documentation Note: ‡ The remote control is shipped with the battery. ‡ *For European warranty Information, please visit www.optoma.com. Optional accessories Lens cap CD user manual Carry bag VGA cable Note: ‡ Optional accessories vary depending on model, specification and region.

  • Page 10: Product Overview

    INTRODUCTION Product Overview Note: ‡ Do not block projector intake and exhaust vents. ‡ When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake and exhaust vents. Item Item Top Cover Ventilation (inlet) Focus Ring Zoom Lever Lens...

  • Page 11: Connections

    INTRODUCTION Connections SERVICE HDMI v1.4 HDMI v2.0 4K/MHL AC-IN RJ-45 RS232 HDMI 1 HDMI 2 AUDIO AUDIO S / PDIF POWER OUT 1.5A) Item Item Kensington Lock Port AUDIO IN Connector Power Socket 12V OUT Connector RJ-45 Connector 10. Service Connector (* RS232 Connector 11.

  • Page 12: Keypad

    INTRODUCTION Keypad Item Item Power and On/Standby LED Re-Sync Source Four Directional Select Keys Menu Laser LED Enter Temp LED English...

  • Page 13: Remote Control

    INTRODUCTION Remote control For Data Model Geometric Correction PIP/PBP Mode AV Mute ENTER Info. Source Re-Sync Volume D Zoom Menu Format Freeze Remote S-Video HDMI1 HDMI2 HDBaseT Video HDMI3 YPbPr DisplayPort Item Item Power on 18. YPbPr (not supported) Geometric Correction 19.
  • Page 14 INTRODUCTION Note: Some keys may have no function for models that do not support these features. For Home Model User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone Mute Sleep Timer Volume Source Re-sync Menu Volume HDMI1 HDMI2 VGA1 VGA2 Video YPbPr Item Item Power On...

  • Page 15: Setup And Installation

    Do not operate the projector in any orientation other than table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector light source or the projector itself. For none standard installation advise please contact Optoma. English...
  • Page 16 SETUP AND INSTALLATION Projector installation notice ‡ Allow at least 30 cm clearance around the exhaust vent. Minimum Minimum Minimum 100mm 300mm 300mm (3.94 inches) (11.81 inches) (11.81 inches) Minimum Minimum 100mm 100mm Minimum (3.94 inches) (3.94 inches) 100mm (3.94 inches) ‡...

  • Page 17: Connecting Sources To The Projector

    SETUP AND INSTALLATION Connecting sources to the projector SERVICE HDMI v1.4 HDMI v2.0 4K/MHL AC-IN RJ-45 RS232 HDMI 1 HDMI 2 AUDIO AUDIO S / PDIF POWER OUT 1.5A) Item Item HDMI Cable S/PDIF Out Cable HDMI / MHL Cable USB Power Cable RCA Component Cable 10.

  • Page 18: Adjusting The Projector Image

    SETUP AND INSTALLATION Adjusting the projector image Image height The projector is equipped with elevator feet for adjusting the image height. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector. Tilt-Adjustment Feet Tilt-Adjustment Ring Zoom, lens shift, and focus...
  • Page 19 SETUP AND INSTALLATION ‡ To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible. Focus Ring Focus adjustment Note: The projector will focus at a distance of 1.3m to 9.3m. English...

  • Page 20: Remote Setup

    SETUP AND INSTALLATION Remote setup Installing / replacing the batteries Two AAA size batteries are supplied for the remote control. Remove the battery cover on the back of the remote control. Insert AAA batteries in the battery compartment as illustrated. Replace back cover on remote control.
  • Page 21 SETUP AND INSTALLATION Approx. ±15° Approx. ±15° English...

  • Page 22: Using The Projector

    USING THE PROJECTOR Powering on / off the projector Geometric Correction PIP/PBP Mode AV Mute ENTER Geometric Correction PIP/PBP Info. Mode AV Mute Source Re-Sync ENTER Volume D Zoom Info. Source Re-Sync Volume D Zoom Menu Menu Format Freeze Remote S-Video HDMI1 HDMI2...

  • Page 23: Selecting An Input Source

    USING THE PROJECTOR Geometric Correction PIP/PBP Selecting an input source Mode AV Mute Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, push the source button on the projector keypad or the remote control to select the desired input.

  • Page 24: Menu Navigation And Features

    USING THE PROJECTOR Menu navigation and features The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. button on the projector keypad or the Menu button on the remote To open the OSD menu, press the control.

  • Page 25: Osd Menu Tree

    USING THE PROJECTOR OSD Menu tree Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Presentation [Default] Bright Note: HLG functions vary by model. HDR SIM. Display Mode Cinema Game sRGB DICOM SIM. HDR2 Off [Default] Blackboard Light Yellow Wall Color...
  • Page 26 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Film Video Graphics Standard(2.2) Gamma Blackboard DICOM SIM. BrilliantColor 1 ~ 10 Warm Standard Color Temperature Cool Cold Native HDTV Color Gamut Presentation Cinema Game Display...
  • Page 27 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Auto [Default] Color Space [Not HDMI Input] Color Settings Color Space Auto [Default] RGB(0~255) Color Space [HDMI Input] RGB(16~235) Automatic On [Default] -50 ~ 50 (depends on signal) Frequency [Default: 0] 0~31 (depends on signal)
  • Page 28 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Off [Default] 3D Mode 3D Sync Invert Off [Default] Auto [Default] 3D Format Top and Bottom Frame Sequential Frame Packing Display 16:9 Aspect Ratio Superwide Native Auto...
  • Page 29 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu 300hr Filter Reminder 500hr [Default] Filter Settings 800hr 1000hr Cancel [Default] Filter Reset Off [Default] Direct Power On Auto Power Off 0 ~ 180 (5 min increments) (min.) [Default: 0] 0 ~ 990 (30 min increments)
  • Page 30 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Test Pattern Brightness Contrast Sleep Timer Color Temp Gamma Projection Remote Settings [depends on Test Pattern remote] Brightness Contrast Sleep Timer Color Temp Gamma Projection Projector ID...
  • Page 31 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Off [Default] High Altitude Off [Default] Display Mode Lock Off [Default] Keypad Lock Off [Default] Information Hide Options Default [Default] Logo Setup Neutral None [Default] Blue Background...
  • Page 32 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Regulatory Serial Number Source Resolution 00x00 Refresh Rate 0.00Hz Display Mode Power Mode (Standby) Light Source Hours Network Status Info IP Address Projector ID 00 ~ 99 Color Depth Note:...

  • Page 33: Display Image Settings Menu

    USING THE PROJECTOR Display menu Display image settings menu Display Mode There are many factory presets optimized for various types of images. ‡ Presentation: This mode is suitable for showing in front of public in connection to the PC. Bright: Maximum brightness from PC input. ‡...
  • Page 34 USING THE PROJECTOR  HLG Picture Mode ‡ Bright: Choose this mode for brighter more saturated colors. ‡ Standard: Choose this mode for natural looking colors with a balance of warm and cool tones. ‡ Film: Choose this mode for improved detail and image sharpness. ‡...
  • Page 35 USING THE PROJECTOR ‡ Color Gamut: Select this menu to optomize the color gamut color range for Native, HDTV, Presentation, Cinema, and Game. ‡ CMS: Select the following options: ± Color: Select one of the colors (R/G/B/C/Y/M/W) to adjust its x/y offset and brightness. ±...
  • Page 36 USING THE PROJECTOR PureEngine Adjust the PureEngine parameters. ‡ PureContrast: Use to automatically optimize the brightness of the display during dark / light movie scenes to be shown in incredible detail. ‡ PureColor: Use to significantly increase the image’s vividness. ‡...

  • Page 37: Display 3D Menu

    USING THE PROJECTOR Display 3D menu Note: ‡ This projector is a 3D ready projector with DLP-Link 3D solution. ‡ Please make sure your 3D glasses are use for DLP-Link 3D before enjoy your video. ‡ This projector supports frame sequential (page-flip) 3D via HDMI1/HDMI2/VGA ports. ‡...
  • Page 38 USING THE PROJECTOR Note: ‡ Detailed informations about LBX mode: ± Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image will not look right when displaying image in 16:9 mode. In this situation, please try to use the 4:3 mode to view the DVD.

  • Page 39: Display Edge Mask Menu

    USING THE PROJECTOR Display edge mask menu Edge Mask Use this function to remove the video encoding noise on the edge of video source. Display digital zoom menu Digital Zoom Use to reduce or magnify an image on the projection screen. Display image shift menu Image Shift Adjust the projected image position horizontally (H) or vertically (V).

  • Page 40: Audio Internal Speaker Menu

    USING THE PROJECTOR Audio menu Audio internal speaker menu Internal Speaker Use this option to temporarily turn off the sound. ‡ Auto: Choose “Auto” to automatically turn off the internal speaker when an external speaker is connected to the projector ‡...

  • Page 41: Setup Projection Menu

    USING THE PROJECTOR Setup menu Setup projection menu Projection Select the preferred projection between front, rear, ceiling-top, and rear-top. Setup filter settings menu Filter Usage Hours Display the filter time. Optional Filter Installed Set the warning message setting. ‡ Yes: Display warning message after 500 hours of use. Note: “Filter Usage Hours / Filter Reminder / Filter Reset”...

  • Page 42: Setup Security Menu

    USING THE PROJECTOR Setup security menu Security Enable this function to prompt for a password before using the projector. ‡ On: Choose “On” to use security verification when the turning on the projector. ‡ Off: Choose “Off” to be able to switch on the projector without password verification. Security Timer Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used.

  • Page 43: Setup 12V Trigger Menu

    USING THE PROJECTOR Setup 12V trigger menu 12V Trigger Use this function to enable or disable the trigger. Reserved IR_IN & detect ‡ Off: Choose “Off” to disable the trigger. ‡ On: Choose “On” to enable the trigger. Setup options menu Language Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, simplified Chinese, Japanese, Korean, and Russian.

  • Page 44: Setup Reset Osd Menu

    USING THE PROJECTOR Background Color Use this function to display a blue, red, green, or gray screen when no signal is available. Note: If the background color is set to “None”, then the background color is black. Setup reset OSD menu Reset OSD Return the factory default settings for OSD menu settings.

  • Page 45: Network Control Menu

    USING THE PROJECTOR Making a direct connection from your computer to the projector* Turn “Off” the DHCP option on the projector. Configure the IP address, Subnet Mask, Gateway, and DNS on projector (“Network > LAN”). Open Network and Sharing Center page on your PC, and assign the identical network parameters to your PC as set on projector.

  • Page 46: Setup Network Control Settings Menu

    USING THE PROJECTOR Setup network control settings menu LAN_RJ45 function For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, brightness, and contrast settings.
  • Page 47 USING THE PROJECTOR LAN RJ45 Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop). SERVICE HDMI v1.4 HDMI v2.0 4K/MHL AC-IN RJ-45 RS232 HDMI 1 HDMI 2 AUDIO AUDIO S / PDIF POWER OUT 1.5A) On the PC (Laptop), select Start >...
  • Page 48 USING THE PROJECTOR Click “Properties”. Type in the IP address and Subnet mask, then press “OK”. Press the “Menu” button on the projector. Open on projector Network > LAN. Enter the following connection parameters: ± DHCP: Off ± IP Address: 192.168.0.100 ±...
  • Page 49 USING THE PROJECTOR The projector is setup for remote management. The LAN / RJ45 function displays as follows: Information page Main page Tool page Contact IT helpdesk English...
  • Page 50 USING THE PROJECTOR RS232 by Telnet Function There is alternative RS232 command control way, in projector so called “RS232 by TELNET” for LAN / RJ45 interface. Quick Start-Guide for “RS232 by Telnet” ‡ Check and get the IP address on OSD of the projector. ‡...

  • Page 51: Info Menu

    USING THE PROJECTOR Info menu Info menu View the projector information as listed below: ‡ Regulatory ‡ Serial Number ‡ Source ‡ Resolution ‡ Refresh Rate ‡ Display Mode ‡ Power Mode (Standby) ‡ Light Source Hours ‡ Network Status ‡...

  • Page 52: Maintenance

    MAINTENANCE Installing and cleaning the dust filter Installing the dust filter Note: Dust filters are only required/supplied in the selected regions with excessive dust. Cleaning the dust filter We recommend you to clean the dust filter every three months. Clean it more often if the projector is used in a dusty environment.

  • Page 53: Additional Information

    ADDITIONAL INFORMATION Compatible resolutions Digital (HDMI 1.4) Native resolution: 3840 x 2160 @ 30Hz B0/Established B0/Standard Timing Descriptor Timing B1/Video Mode B1/Detail Timing Timing 720 x 400 @ 70Hz 1280 x 720 @ 60Hz 3840 x 2160 @ 30Hz 720 x 480i @ 60Hz 16:9 1920 x 1080p @ 60Hz [Default] 640 x 480 @ 60Hz...
  • Page 54 ADDITIONAL INFORMATION B0/Established Timing B0/Standard Timing B1/Video Mode B1/Detail Timing 3840 x 2160 @ 60Hz 4096 x 2160 @ 24Hz 4096 x 2160 @ 25Hz 4096 x 2160 @ 30Hz 4096 x 2160 @ 50Hz 4096 x 2160 @ 60Hz Analog (VGA) Native resolution: 1920 x 1080 @ 60Hz B0/Established Timing...
  • Page 55 ADDITIONAL INFORMATION PC 3D timing Timing Format HDMI 1920 x 1080 @ 120Hz Frame Sequential 1280 x 800 @ 120Hz Frame Sequential 1024 x 768 @ 120Hz Frame Sequential 800 x 600 @ 120Hz Frame Sequential 640 x 480 @ 120Hz Frame Sequential 1280 x 800 @ 120Hz Frame Sequential...

  • Page 56: Image Size And Projection Distance

    ADDITIONAL INFORMATION Image size and projection distance Desired Image Size Projection Distance (C) Diagonal Width Height Wide Tele inch inch inch feet feet 0.91 0.80 31.38 0.45 17.65 1.77 5.80 1.02 0.89 34.86 0.50 19.61 1.97 6.45 1.27 1.11 43.58 0.62 24.51 1.54...

  • Page 57: Projector Dimensions And Ceiling Mount Installation

    ADDITIONAL INFORMATION Projector dimensions and ceiling mount installation To prevent damage to your projector, please use the Optoma ceiling mount. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications: ‡...

  • Page 58: Ir Remote Codes

    ADDITIONAL INFORMATION IR remote codes For Data Model Geometric Correction PIP/PBP Mode AV Mute ENTER Info. Source Re-Sync Volume D Zoom Menu Format Freeze Remote S-Video HDMI1 HDMI2 HDBaseT Video HDMI3 YPbPr DisplayPort Key code Printing-key BYTE1 BYTE2 BYTE3 BYTE4 Repeat definition customer 0...
  • Page 59 ADDITIONAL INFORMATION Key code Printing-key BYTE1 BYTE2 BYTE3 BYTE4 Repeat definition customer 0 customer 1 data 0 data 1 Laser Laser Source Source #BYTE3 #BYTE3 Re-Sync Re-Sync #BYTE3 Volume + #BYTE3 Volume Volume - #BYTE3 D Zoom + #BYTE3 D Zoom D Zoom - #BYTE3 Menu...
  • Page 60 For Home Model User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone Mute Sleep Timer Volume Source Re-sync Menu Volume HDMI1 HDMI2 VGA1 VGA2 Video YPbPr Custom code Key code Printing-key Description definition Byte 1 Byte 2 Byte 3 Byte 4 Power on Press to turn on the projector.
  • Page 61 Custom code Key code Printing-key Description definition Byte 1 Byte 2 Byte 3 Byte 4 Sleep timer Sleep Timer Sets the countdown timer interval. Volume + Volume + Adjust to increase volume. ▲ ◄ Four direction ▲, ◄, ►, or ▼ to select items or keys make adjustments to your selection.

  • Page 62: Troubleshooting

    ADDITIONAL INFORMATION Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen ‡ Ensure all the cables and power connections are correctly and securely connected as described in the "Installation"...
  • Page 63 ADDITIONAL INFORMATION Other problems The projector stops responding to all controls ‡ If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power. Remote control problems If the remote control does not work ‡...

  • Page 64: Warning Indicators

    ADDITIONAL INFORMATION Warning indicators When the warning indicators (see below) light up or flash, the projector will automatically shutdown: ‡ “Laser” LED indicator is lit red and if “Power” indicator flashes red. ‡ “Temp” LED indicator is lit red and if “Power” indicator flashes red. This indicates the projector has overheated.
  • Page 65 ADDITIONAL INFORMATION ‡ Power off: Power Off Press power key again. ‡ Temperature warning: Warning TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 45 degree C. If the problem persists in spite of the above.

  • Page 66: Specifications

    ADDITIONAL INFORMATION Specifications Optical Description Maximum resolution 4K UHD Native resolution 2716 x 1528 Lens Manual zoom and manual focus adjustment Image size (diagonal) 26.45”~302.2” (focus range, optimized @ wide 60” image size) Projection distance 1.3m ~ 9.3m (focus range, optimized @ wide 1.846m) Color temperature Standard D65: (0.313, 0.329) Electrical...

  • Page 67: Optoma Global Offices

    ADDITIONAL INFORMATION Optoma global offices For service or support, please contact your local office. Japan 47697 Westinghouse Drive, 888-289-6786 東京都足立区綾瀬3-25-18 Fremont, CA 94539, USA 510-897-8601 info@os-worldwide.com 株式会社オーエス www.optomausa.com services@optoma.com 0120-380-495 www.os-worldwide.com コンタク トセンター: Canada Taiwan 47697 Westinghouse Drive, 888-289-6786 12F., No.213, Sec. 3, Beixin Rd.,...
  • Page 68 *36.7F701G001-A* P/N:36.7F701G001-A www.optoma.com...
