Page 1: Instruction Manual

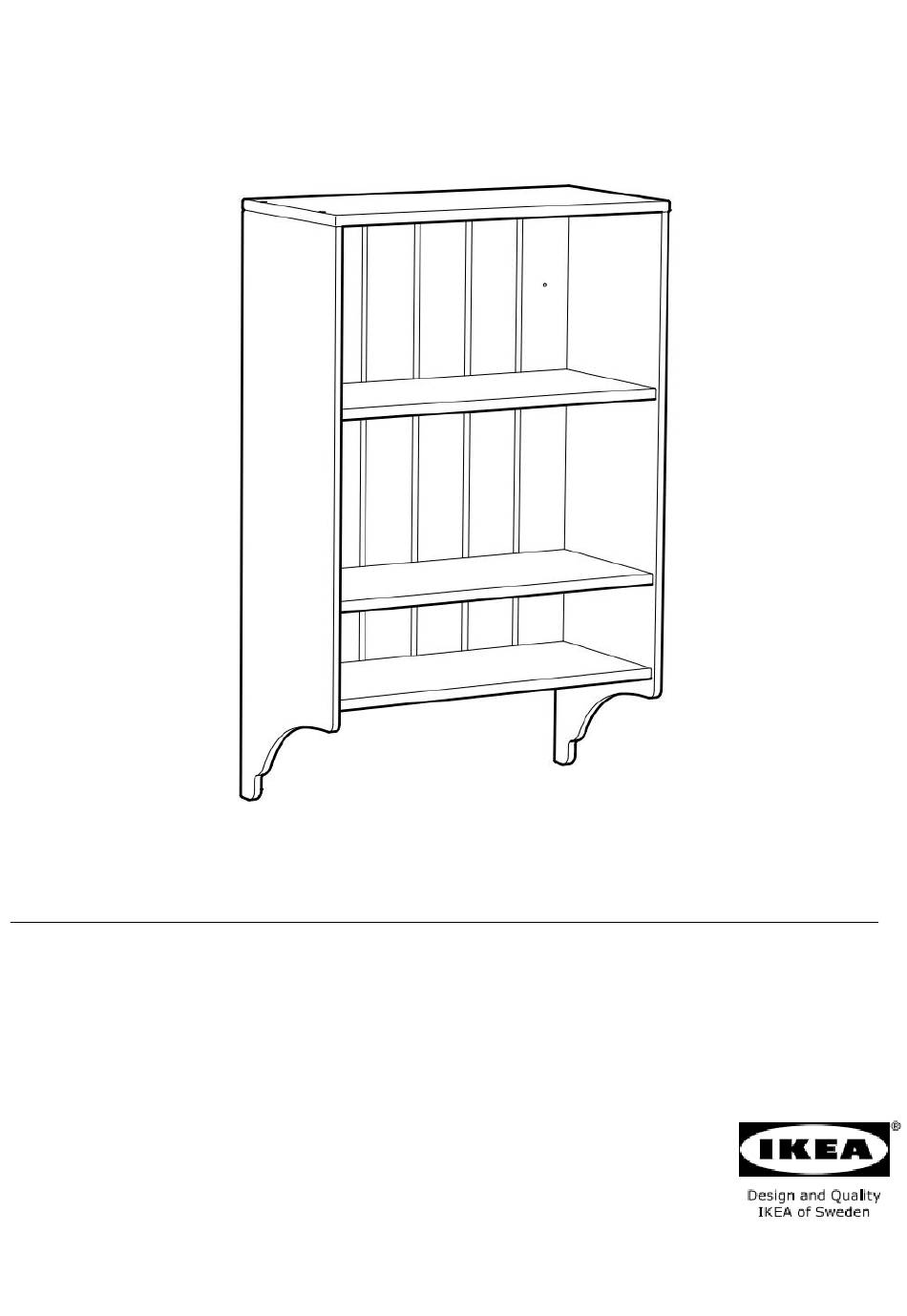

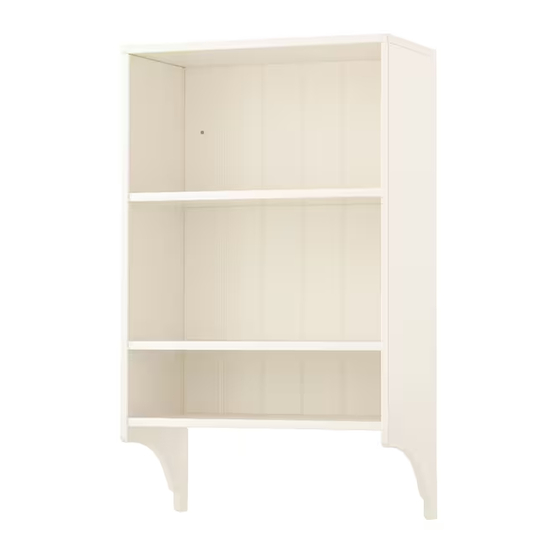

Céline SELLIER, Master CAWEB (2021) TORNVIKEN INSTRUCTION MANUAL Keep this information for further reference... -
Page 2: Table Of Contents
Summary INSTRUCTION MANUAL .........................1 INTRODUCTION .............................3 Important Safety Instructions ......................4 Warning : fastening devices not included ..................4 Tips before you start .........................5 Tips ..........................5 Essentials ........................5 ASSEMBLY .............................6 Parts listing............................7 Structure ........................7 Screws and fixings ...................... 7 Step 1 ..............................8 Step 3 ..............................9 Step 3 ..............................9... -
Page 3: Introduction
INTRODUCTION Important information: read carefully... -
Page 4: Important Safety Instructions
Important Safety Instructions Assembly should be carried out by a qualified person: wrong assembly may lead to the furniture falling down and causing injury or damage Serious or fatal crushing injuries can occur from furniture falling down To prevent this furniture from falling down it must be permanently fixed to the wall with a non-included wall attachment devices Warning : fastening devices not included... -
Page 5: Tips Before You Start
- A flathead screwdriver - A crosshead screwdriver - A carpenter’s level 2-Person Assembly To prevent any damage, please place the product on a protected surface during assembly Should anything be unclear Do not hesitate to contact Ikea Customer Service... -
Page 6: Assembly
ASSEMBLY Follow each step of the instruction carefully... -
Page 7: Parts Listing
Right side panel Second inner panel Bottom panel Screws and fixings x 10 Cam Lock x 10 x 22 Flat Head Socket Ikea Cam Bolt Wood Dowels Screws Phillips Mod Truss Self Pan Head Self Tapping Allen Wrench Piercing Screws Screws... -
Page 8: Step 1
Step 1 You will need : Instructions: Place Left Side Panel (A) and Right Side Panel (B) on a flat covered area with the holes facing up Insert the 10 supplied Cam Bolt into the pre-threaded holes as shown (5 on each panel) ... -
Page 9: Step 3
Step 2 You will need : Bottom Panel Left Side Panel Instructions: Insert 2 wood dowels into the Left Side Panel (A) holes (bottom of the panel) Carefully push the Bottom Panel (C) onto the dowels Insert 2 wood dowels into the Bottom Panel (C) holes Step 3 You will need : First Inner Panel... -
Page 10: Step 4
Instructions: Insert 2 wood dowels into the Left Side Panel (A) holes (top of the panel) Carefully push the First Inner Panel (D) onto the dowels Insert 2 wood dowels into the First Inner Panel (D) holes Caution: ... -
Page 11: Step 5
Please, notice the Cam Lock has a "C" -Shaped back. Insert the Cam Lock so the opening of the "C" fits over the head of the Cam Bolt Use a flat screwdriver to turn the Cam Lock clockwise on half a turn so it locks onto the head of the Cam Bolt Caution: ... -
Page 12: Step 6
Step 6 You will need : Support Board Left Side Panel First Inner Panel Instructions: Insert 2 wood dowels into the Left Side Panel (A) holes (top right of the panel) Carefully push the Support Board (F) onto the dowels ... -
Page 13: Step 7
Step 7 You will need : Support Board Instructions: Insert the Cam Lock into the large hole on the Support Board (F) (the closest hole to the floor) Please, notice the Cam Lock has a "C"-shaped back Insert the Cam Lock so the opening of the "C" fits over the head of the Cam Bolt ... -
Page 14: Step 8
Step 8 Right Side Panel Support Board Instructions: Lift, turn and align the Right Side Panel (B) over the wood dowels Carefully push the Right Side Panel (D) onto the dowels Step 9 Right Side Panel Back Panel Support Board... - Page 15 Instructions: Slide the Back Panel (G) into the notches provided Caution: Make sure the plain side of the Back Panel (G) will ultimately face the wall Step 10 You will need : Right Side Panel Back Panel Support Board Instructions: ...
-
Page 16: Step 12
Step 11 You will need : Right Side Panel Left Side Panel Instructions: Insert 2 wood dowels into the Left Side Panel (A) holes (upper edge) Insert 2 wood dowels into the Right Side Panel (F) holes (upper edge) Step 12 Top Panel Back Panel... -
Page 17: Step 13
Instructions: Lift, turn and align the Top Panel (H) over the wood dowels Carefully push the Top Panel (H) onto the dowels Caution: Make sure you turn the Top Panel (H) so that the notch (1) fits together with is on the side of the Support Boad (F) and the Back Panel (G) Step 13... -
Page 18: Step 14
Step 14 You will need : Back Panel Instructions: Insert the 4 Pan Head Screws in the provided holes on the Back Panel (H) (1 for each corner) Tighten the screws with the crosshead screwdriver Caution: Make sure you take and use Pan Head Screws. Please, do not confuse them with Phillips Mod Truss Screws. -
Page 19: Tips: Best Fastening Device
TIPS: BEST FASTENING DEVICE Please remember: fastening devices are not included... -
Page 20: Step 1
Step 1 You will need : Instructions: Place a French cleat against your wall. Please note : a French cleat is a coving with a 30–45 degree slope used to hang cabinets or other objects Position a carpenter’s level where you want the bottom of the cleat on your wall, and draw a line along the level’s top edge ... - Page 21 Instructions: Lift and position the assembled furniture so that the provided holes in the Back Panel (G) are placed on the French cleat Screw the Back Panel (G) to the French cleat with 2 Phillips Mod Truss Self Piercing Screws...
