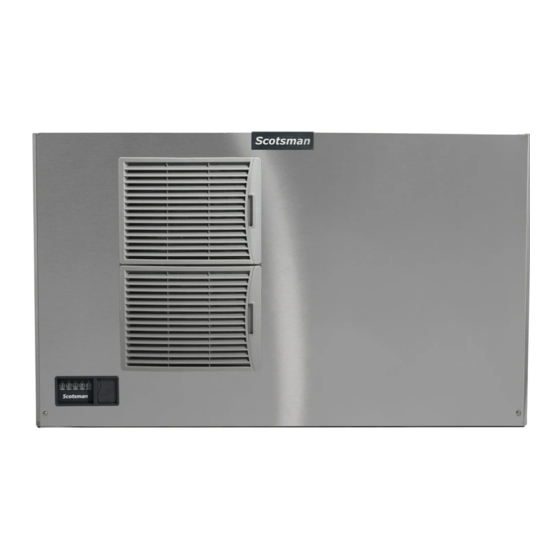

Scotsman Prodigy ELITE A Series Installation And User Manual
Air and water cooled modular cube
Hide thumbs
Also See for Prodigy ELITE A Series:
- Installation and user manual (22 pages) ,
- Installation and user manual (22 pages) ,
- Installation and user manual (22 pages)
Related Manuals for Scotsman Prodigy ELITE A Series
Summary of Contents for Scotsman Prodigy ELITE A Series
- Page 1 Installation and User’s Manual for Air and Water Cooled Modular Cube Prodigy ELITE® A Series Models MC1448, MC1848...
-
Page 2: Table Of Contents
. In addition, which provides the user with the information to use the Scotsman ICELINQ® app allows users to connect the product; and Maintenance, which provides the to the machine via Bluetooth® to monitor, control, and user with the information needed keep it operating maintain the ice machine. -
Page 3: Installation: Product Specifications
MC1448 and MC1848 Air and Water Cooled User Manual Installation: Product Specifications Location Limitations: Environmental Limitations The product is designed to be installed indoors, in a Minimum Maximum controlled environment . Air cooled models discharge Air temperature very warm air into the room out the back . Space must Water temperature be allowed at the sides and back for air discharge . -
Page 4: Model Number Description
. They include: approved by Scotsman . • KVS, Vari-Smart Adjustable ice level system . Scotsman reserves the right to make design changes • KBILC, Basic Ice Level Control and/or improvements at any time. Specifications and •... -
Page 5: Product Description & Electrical Requirements
MC1448 and MC1848 Air and Water Cooled User Manual Product Description & Electrical Requirements Dimensions w" x d" x h" Model Series Electrical Condenser Minimum Maximum volts/Hz/phase Circuit Fuse Size* Ampacity 48 .6** x 24 x 29 MC1448SA-32 208-230/60/1 Air 17 .7 MC1448SW-32 208-230/60/1 Water 16 .0... -
Page 6: Cabinet Layout
MC1448 and MC1848 Air and Water Cooled User Manual Cabinet Layout June 2022 Page 5... -
Page 7: Water
A triple head filter is recommended for the potable purge rate can also be set manually . water. Either the Scotsman SSM3 taste and odor filter Adjustments of purge due to local water conditions system, or the ADS-AP3 AquaPatrol™ system . RO are not covered by warranty . -
Page 8: Panel Removal
MC1448 and MC1848 Air and Water Cooled User Manual Panel Removal 1 . Locate and disengage the two quarter turn captured screws at the bottom of the front panel . 2 . Pull the front panel out at the bottom . 3 . -
Page 9: Uncrate And Set Up
MC1448 and MC1848 Air and Water Cooled User Manual Uncrate and Set Up Begin with unpacking the ice storage bin . Remove the • The used bin should be the proper size for the ice carton, and using part of the carton as a cushion, tip machine head . -
Page 10: Plumbing Requirements
Connection A triple head filter is recommended. Either the Scotsman SSM3 taste and odor filter system, or the ADS-AP3 AquaPatrol™ system . Drains All models require drain tubing to be attached to... -
Page 11: Electrical
MC1448 and MC1848 Air and Water Cooled User Manual Electrical The machine is not supplied with a power cord, the machine should be hard-wired . The dataplate on the back of the cabinet details the power requirements, including voltage, phase, minimum circuit ampacity and maximum fuse size . -
Page 12: Final Check List
MC1448 and MC1848 Air and Water Cooled User Manual Final Check List After connections, 1 . Wash out the bin . If desired, the interior of the bin could be sanitized . 2 . Locate the ice scoop (if supplied) and have it available for use when needed . -
Page 13: Initial Start Up
12 . Fill out and mail warranty registration form or device will return to its standby position . Warm air will register on line at www .scotsman-ice .com . be discharged from air cooled models . Typical Ice Making Cycle Times (minutes). -
Page 14: Adjustments
MC1448 and MC1848 Air and Water Cooled User Manual Adjustments 1/8 - 3/16” bridge Bridge Thickness - For Service Tech Only 1 . Push and hold Off till the machine stops. 2 . Remove evaporator cover . 3 . Remove curtain . 4 . -
Page 15: Use And Operation
Preservation mode, which the machine . initiates a timed freeze in response to short freeze errors . Contact an authorized Scotsman service agent Indicator Lights: to service the machine immediately . It is likely that the machine needs to be cleaned (de-scaled and •... -
Page 16: Switches
On button . The machine will go through a start up off the Bin Full indicator light will be On. process and then resume ice making . Scan QR code to download the Scotsman ICELINQ™ App: Control Options Connect to this machine via Bluetooth to access additional machine operations, The cuber drops ice in large sections . -
Page 17: Cleaning, Sanitation And Maintenance
Preparing to Clean: Clean internal parts: 1 . Remove the front panel . 6 . Mix a cleaning solution of 6oz of Scotsman Clear 1 scale remover with 9 cups (72oz) of 105-115° F 2 . Remove the evaporator cover . - Page 18 Do not operate the machine without the filter in place Want more detail? except during cleaning . Scan QR Code to download the Scotsman IcelinQ™ App to connect to this machine via Bluetooth and Condenser (air-cooled models) access the self-guided cleaning process .
-
Page 19: What To Do Before Calling For Service
