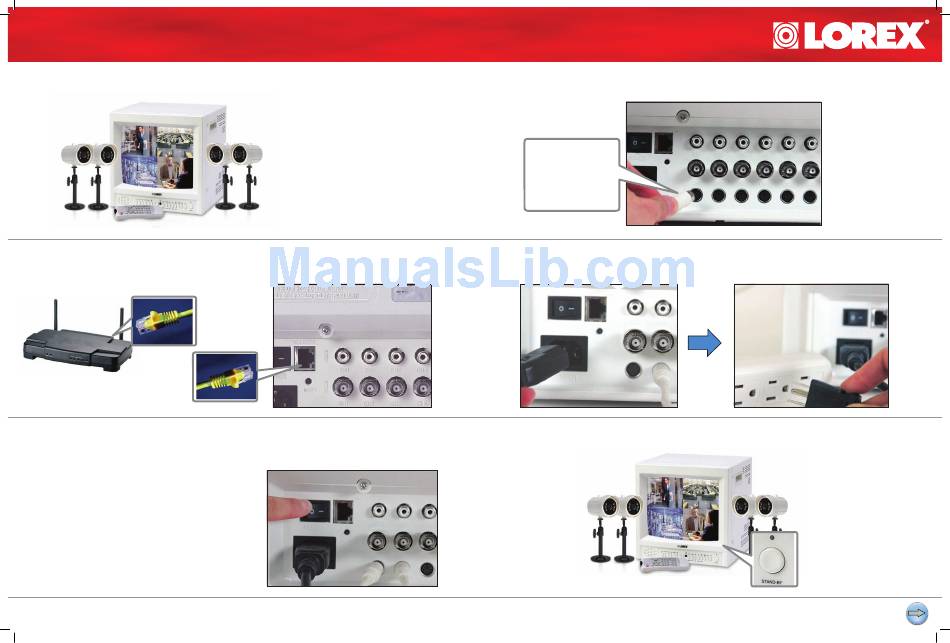

Lorex L14Q684C Setup Manual

STEP
SET UP YOUR MONITOR FIRST
PACKAGE CONTENTS
2
|
CONNECT THE ETHERNET CABLE TO A BROADBAND ROUTER
(NOT INCLUDED) FOR REMOTE VIEWING CAPABILITY
ROUTER NOT INCLUDED
4
|
TURN THE MASTER POWER SWITCH ON
(LOCATED ON THE BACK OF THE MONITOR)
WWW.LOREXCCTV.COM
1
1 - 14" Color Quad Monitor
4 - Color Cameras
4 - 57 ft. Extension Cables
4 - Camera Brackets
1 - Remote Control with Batteries
1 - Ethernet Network Cable
1 - Set-up CD ROM
1 - Quick Installation Guide
1 - Owner's Manual
1 - Power Cord
3
5
|
CONNECT CAMERAS TO MONITOR
Connect the first camera
to the CH1 input. Follow
the same steps to
connect the other three
cameras to the CH2,
CH3, CH4 camera
inputs.
|
CONNECT ONE END OF THE POWER CORD TO THE MONITOR;
THE OTHER END TO AN ELECTICAL OUTLET
|
PRESS STAND-BY BUTTON TO VIEW PICTURE IMAGES
STAND-BY BUTTON
