Lorex L104000 Quick Start Manual

L104 Series
Quick Start Guide

PACKAGE CONTENTS & MENU CONTROLS:
System Contents:
1 x Compact Digital Video Recorder
1 x Power Adaptor
1 x Power Adaptor Cable
1 x USB Cable (male to male)
1 x Remote Control
1 x Hardware Manual
1 x Quick Start Guide
1 x Software CD
*Channel/ Port configuration and HDD (hard disk drive) capacity may vary
by model. Check your package for specific content information.
For detailed setup information, please refer to your User's manual.

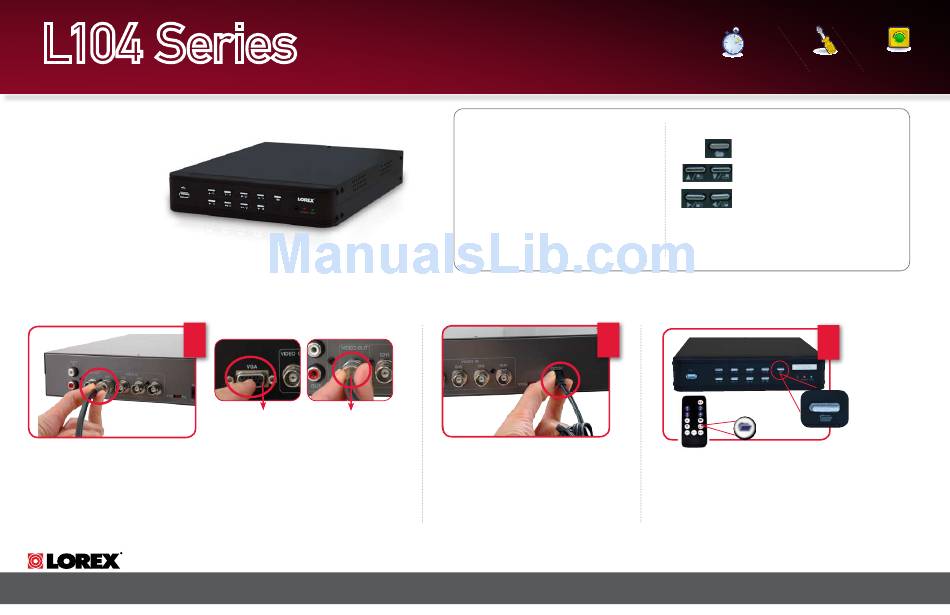

STEP 1 - SET uP Your DIGITAL VIDEo rECorDEr FIrST
1
Connect Cameras & Monitor (not included) to the DVR:
Connect the first camera (with BNC connection type. Requires
additional power adaptor) to the CH1 input. Follow the same
steps 1 to connect the additional cameras*.
* NOTE: Test the cameras prior to selecting a permanent mounting location by
temporarily connecting the Cameras and Cables to your DVR.
NOTE: IN ORDER TO ACCESS THE DVR MENU WHILE THE UNIT IS RECORDING, YOU HAVE TO FIRST STOP THE RECORDING AND ACCESS THE MENU.
L104 Series Quick Start Guide_R1
Page 1
VGA VIDEO OUTPUT (L104V BNC VIDEO OUT
SERIES ONLY) - Video Output - Video Output port to
port to connect the unit to a connect the unit to a
Computer Monitor. DVR or TV.
SYSTEM SET UP CONTROLS:
• Enter the MENU screen by pressing the MENU button
(). Enter the password to display the Menu Selection
Screen. The Default password is <111111> - press MENU
to accept the password.
• Scroll through the 7 options by pressing the UP & DOWN
() buttons on the Front Panel or Remote Control.
• To enter a sub-menu, navigate to the option and press the
RIGHT button (). To exit a SUBMENU, press the MENU
button ().
• To change the options, press the RIGHT and LEFT buttons
().
• Press the MENU Button () to accept the setting change,
and return to the previous menu.
• To exit the MAIN MENU, press the MENU button ().
2
Connect Power Cable to the DVR:
Connect one end of the Power cable to
the DVR, the other end to an electrical
outlet. This unit powers ON once it is
plugged in to the power outlet.
Hand Tools
Time Tools Skills - Easy
Under 20 Minutes* Hand Tools
* Installation time may vary based
on application and camera cabling
Skill Level
easy
MENU NAVIGATION CONTROLS:
• MENU Button () - Accesses the setup menu, and
returns to previous menu options.
• UP / DOWN Controls () - Move Up/Down to
move through the Menu Options
• LEFT / RIGHT Controls () - Move Left / Right
to enter a Menu Option, and press left and right to
change the Menu Settings.
3
DVR - FRONT PANEL
DVR - REMOTE CONTROL
Set the Time and Date:
Click the MENU button from the front panel of the DVR (or the remote
control) to enter DVR SETUP (default password is 111111). From the MAIN
MENU select the SYSTEM SETUP by pusing the right arrow key (channel
3). Scroll down to the DATE/TIME MENU. Press the right arrow key to enter
into the menu to set Time and Date.
Congratulations! You have completed Step 1 successfully.
You can now view (when connected to a monitor), record
and playback images on your DVR.
www.lorexcctv.com
