- Page 1 HUAWEI B535-232a LTE CPE V100R001 Product Description Issue Date 2022-04-21 Huawei Device Co., Ltd.
- Page 2 Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS"...
- Page 3 The features and functions of certain products may vary with the requirements of customers. History Issue Date Details 2022-01-13 Initial official release. 2022-04-21 Windows 11 is added to the operating system. Huawei Proprietary and Confidential Issue 02 (2022-04-21) Copyright © Huawei Device Co., Ltd.
- Page 4 E-UTRA Evolved Universal Terrestrial Radio Access Network Frequency Division Duplex HOTA Huawei Firmware Over the Air HSPA High Speed Packet Access HSPA+ High Speed Packet Access Evolution Huawei Proprietary and Confidential Issue 02 (2022-04-21) Copyright © Huawei Device Co., Ltd.
- Page 5 Primary Component Carrier PDN Gateway Personal Identification Number PLAT Provider-side Translator PPTP Point-to-Point Tunneling Protocol Quadrature Amplitude Modulation Quick Response Request For Comments RTCP Real-time Transport Control Protocol Huawei Proprietary and Confidential Issue 02 (2022-04-21) Copyright © Huawei Device Co., Ltd.
- Page 6 UPnP Universal Plug and Play Universal Serial Bus USIM UMTS Subscriber Identity Module Virtual Private Network Wide Area Network Wireless Encryption Protocol Wi-Fi Wireless Fidelity Wi-Fi Multimedia Huawei Proprietary and Confidential Issue 02 (2022-04-21) Copyright © Huawei Device Co., Ltd.
- Page 7 About This Document Acronym or Abbreviation Full Spelling WPA/WPA2-PSK Wi-Fi Protected Access/Wi-Fi Protected Access II - Pre-Shared Key WPA2-PSK Wi-Fi Protected Access II - Pre-Shared Key Wi-Fi Protected Setup Huawei Proprietary and Confidential Issue 02 (2022-04-21) Copyright © Huawei Device Co., Ltd.
-
Page 8: Table Of Contents
3.6.2 IPv6 Only (CLAT) ..............................16 3.7 Multi-APN .................................. 17 3.8 5GHz Preferred ................................. 17 3.9 HiLink ..................................18 3.10 Customer management ............................18 3.10.1 WebUI ................................... 18 Huawei Proprietary and Confidential Issue 02 (2022-04-21) Copyright © Huawei Device Co., Ltd. - Page 9 HUAWEI B535-232a LTE CPE Product Description Contents 3.10.2 HUAWEI AI Life app ............................18 3.11 Operator maintenance ............................18 3.12 HOTA ..................................18 4 System Structure and Scenario Constraints ................19 4.1 System Architecture ..............................19 4.2 Scenario Constraints ..............................20 5 Technical References ........................
-
Page 10: Product Overview

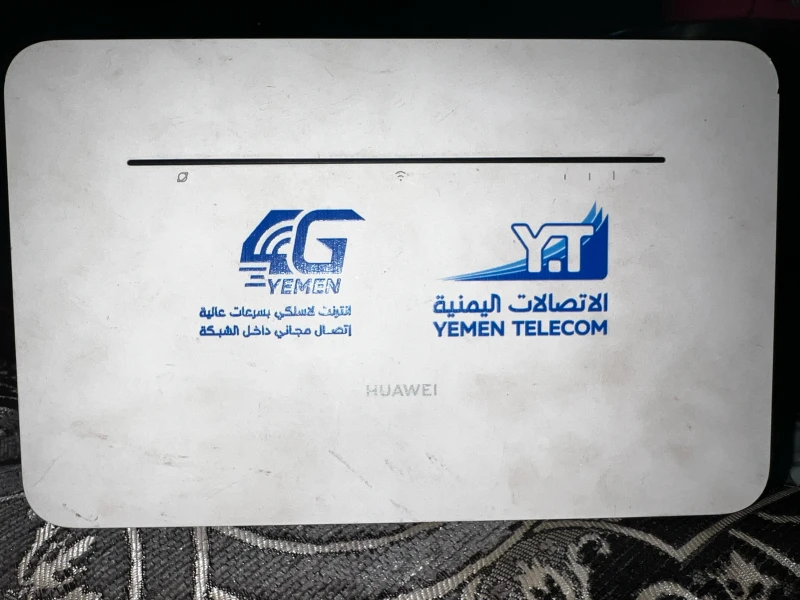

1 Product Overview Product Description Product Overview The HUAWEI LTE CPE B535-232a is a Long Term Evolution (LTE) wireless gateway for multiple users in household or small office environments. It enables users to access the Internet. The B535-232a supports 3GPP Release 11 with LTE CAT 7. The supported service... - Page 11 HUAWEI B535-232a LTE CPE 1 Product Overview Product Description Figure 1-1 B535-232a appearance Issue02 (2022-04-21) Huawei Proprietary and Confidential Copyright © Huawei Device Co., Ltd.
-
Page 12: Technical Specifications
HUAWEI B535-232a LTE CPE 2 Technical Specifications Product Description Technical Specifications 2.1 Hardware Specifications Table 2-1 Technical specifications of the B535-232a main unit Item Description Technical 3GPP Release 11 standard IEEE 802.3/802.3u Wi-Fi IEEE 802.11a/b/g/n/ac Working B1/B3/B7/B8/B20/B28/B32/B38 band/frequenc UMTS B1/B8 Wi-Fi 2.4 GHz: 2401-2483MHz,... - Page 13 Flash slowly: A pairable HiLink device is detected. Flash quickly: HiLink pairing is in progress/WPS connection is in progress. Off: Wi-Fi is disabled. The indicator starts to flash slowly only when B535-232a detects a new HiLink device. One group of signal strength indicators ...
- Page 14 (dBm) (dBm) (dBm) -100. -97.3 -95.5 -94.3 -102 -97.3 -94.3 -92.5 -91.3 -98.3 -95.3 -93.5 -92.3 -102.5 -99.5 -97.3 -94.3 -97.3 -94.3 -91.5 -90.3 -100.5 -98.8 -95.8 -91.3 Issue02 (2022-04-21) Huawei Proprietary and Confidential Copyright © Huawei Device Co., Ltd.
- Page 15 Weight < 330 g (excluding the power adapter) Temperature Working temperature: 0° C to 40°C Storage temperature: -20° C to +70°C Humidity 5% – 95% (non-condensing) Issue02 (2022-04-21) Huawei Proprietary and Confidential Copyright © Huawei Device Co., Ltd.
-
Page 16: Antenna Specifications
Input impedance 50 Ω Standing wave ratio < 3 Main antenna efficiency B1: -1.5 dB B3: -1.4 dB B7: -1.7 dB B8: -2.6 dB Issue02 (2022-04-21) Huawei Proprietary and Confidential Copyright © Huawei Device Co., Ltd. -
Page 17: Build-In Wi-Fi Antenna
B8: 0.8 dBi Diversity antenna gain B1/B3/B7/B8/B20/B28/B32/B38: 1~2 dBi TX/RX 1T2R Polarization Linear polarization 2.2.2 Build-in Wi-Fi Antenna Table 2-3 Wi-Fi 2.4 GHz antenna specifications Item Description Frequency 2401-2483MHz Issue02 (2022-04-21) Huawei Proprietary and Confidential Copyright © Huawei Device Co., Ltd. -
Page 18: Software Specifications
APN management network APN auto adapter Gateway Router Supports the default route: 0.0.0.0. Supports manual configuration of LAN IP addresses. Supports Address Resolution Protocol (ARP). Issue02 (2022-04-21) Huawei Proprietary and Confidential Copyright © Huawei Device Co., Ltd. - Page 19 HSPA: DL 14.4 Mbps, UL 5.76 Mbps WCDMA PS: DL 384 Kbps, UL 384 Kbps Wi-Fi 802.11b/g/n/a/ac Supports multi APNs (Optional, one for data and one for TR-069). Issue02 (2022-04-21) Huawei Proprietary and Confidential Copyright © Huawei Device Co., Ltd.
- Page 20 Supports TR-143 Amendment I (Optional) USIM PIN management and USIM card authentication Supports daylight saving time (DST) (Optional). Maintenance Supports export of current diagnosis results and operation logs. Issue02 (2022-04-21) Huawei Proprietary and Confidential Copyright © Huawei Device Co., Ltd.
- Page 21 Safari 10.0 with latest updates. Opera 51.2 with latest upgrades. Your computer's hardware system should meet or exceed the recommended system requirements for the installed OS version. Issue02 (2022-04-21) Huawei Proprietary and Confidential Copyright © Huawei Device Co., Ltd.
-
Page 22: Services And Applications
3.1 Data Services The B535-232a can access the Internet through mobile networks and Ethernet networks. By connecting to the B535-232a using Wi-Fi or a network cable, users can obtain access to high-speed Internet services and establish a local area network (LAN). -
Page 23: Accessing The Internet Through An Ethernet Network
3 Services and Applications Product Description 3.1.2 Accessing the Internet through an Ethernet Network The B535-232a's LAN/WAN port can be connected to a wall-mounted Ethernet port using a network cable. Figure 3-2 Accessing the Internet through an Ethernet network 3.2 SMS The B535-232a supports message writing/sending/receiving and group sending (up to 50 -contacts at a time). -
Page 24: Firewall Service
3 Services and Applications Product Description 3.3.1 Firewall Service The B535-232a supports the enabling or disabling of a firewall on the network connection, which protects the device and network from attacks by hackers on the Internet and controls access to the Internet. -
Page 25: Ip Pass-Through
3.6 IPv6 Only and IPv4v6 Dual Stack 3.6.1 IPv4v6 Dual Stack CPE provides dual stack function. 3.6.2 IPv6 Only (CLAT) The LTE CPE supports IPv6 only with the transition solution CLAT for IPv4 device. Issue02 (2022-04-21) Huawei Proprietary and Confidential Copyright © Huawei Device Co., Ltd. -
Page 26: Multi-Apn
When an IPv4 device accesses the Internet, the performance is degraded because packets need to be packetized and unpacked. However, IPv6 devices are not affected. 3.7 Multi-APN The B535-232a supports the establishment and maintenance of two APNs. These two APN connections isolate data and remote management services on an operator's network. -
Page 27: Hilink
3 Services and Applications Product Description 3.9 HiLink Supports up to 5 HiLink devices to connect to B535-232a through the H button to create an expanded network. Supports quick connection between a HiLink device and B535-232a through the H ... -
Page 28: System Structure And Scenario Constraints
4.1 System Architecture Figure 4-1 System structure The following describes the modules shown in Figure 4-1. LTE access function: The B535-232a adopts the LTE access technology at the WAN side. LAN access function: One 10/100/1000 Mbps high-speed Ethernet ports are ... -
Page 29: Scenario Constraints
(SOHOs). The B535-232a is not an enterprise-grade product. It cannot be used by medium- or large-sized enterprises or in scenarios with high network reliability requirements, such as banks, securities agencies, traffic control, and communications device backhaul. -
Page 30: Technical References
RFC792, RFC950, RFC1256 RFC793 RFC768 DHCP RFC1531, RFC1533 RFC1631, RFC2663, RFC3022, RFC3027 5.1.2 Standards and Communication Protocols of the Wireless Uu Interface This device supports 3GPP Release 11. Issue02 (2022-04-21) Huawei Proprietary and Confidential Copyright © Huawei Device Co., Ltd. -
Page 31: Packing List
Wireless Gateway Standard Socket Standard Power supply adapter Standard Quick Start Standard Ethernet cable Optional Warranty card Optional The HUAWEI B535-232a wireless gateway has an optional external antenna. Issue02 (2022-04-21) Huawei Proprietary and Confidential Copyright © Huawei Device Co., Ltd.
