FRONT PANEL OVERVIEW

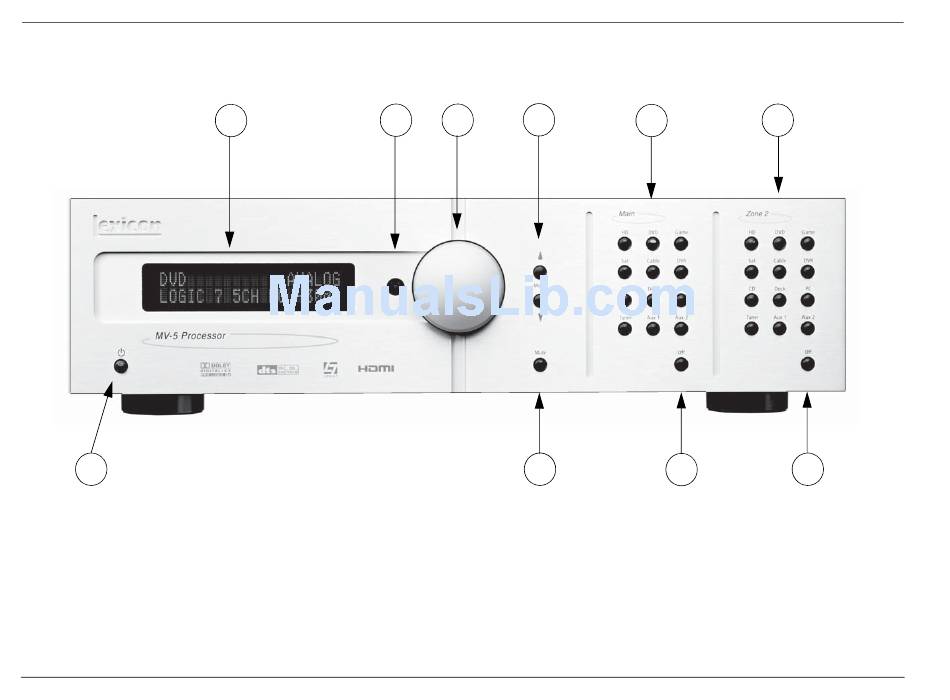

The MV-5 is shown below. The numbers in the front panel illustration correspond with the numbered items in the text.
10
1. Front Panel Display
2. IR Receiver
3. Volume Knob
4. Mode Buttons
5. Main Zone Input Selection Buttons
2-2
1 2
4
3
9
6. Zone 2 Input Selection Buttons
7. Zone 2 Off Button
8. Main Zone Off Button
9. Mute Button
10. ON/Standby Button
5 6
8 7
