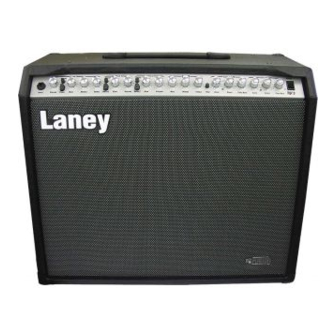

Summary of Contents for Laney TFX3
- Page 1 TFX3 Service Information Service Information Laney Classic British Amplification Newlyn Road, Cradley Heath, West Midlands. B64 6B£ www.laney.co.uk...
- Page 2 DRIVEFXFET +15V Drive 2 Active FXRETURN2 NOTE: TFX2 - FIT U1, MISS OUT LN1 FXRETURN1 LED3MMRHB CD4069UBE NOTE: TFX3 - FIT LN1, MISS OUT U1 FXSEND 22KSM 3K3SM LED7 CD4069UBE 10KSM HD10WLSJ NOTE: All resistors to be 1/4W unless otherwise stated...
- Page 3 -15V 680R 5W -45V -45V2 NOTE: Title TFX3 OUTPUT Set VR2 to give 20mV across TP1 and TP2 Flame proof resister Must only be replaced with same type and rating Refer to service manual before adjusting bias preset Size Number...
- Page 4 CLEAN FX LEVEL HD10WLSJ DRIVE FX LEVEL 22KB6S CLEAN REVERB LEVEL 22KB6S DRIVE REVERB LEVEL 22KB6S BRKT2 BR16BU Title Revision History TFX3 FX Control Board R3/R4/R5/R6 100K > 10K Size Number Revision 9393 Industries 9393_4.Sch Date: 05/09/2003 Sheet of Rich Thompson File: D:\9393_4\9393_4.Sch...
- Page 5 PIGGY BACK PUSH SWITCH 3.0000 005503 7.5mm ROUND BLACK BUTTON 4.0000 009390 TFX2/TFX3 PREAMP PCB ISSUE 3 1.0000 007987 9393 TFX3 FX CONTROL PCB ASSY 1.0000 003022 3mm GREEN LED 2.0000 004061 6mm 22K LIN POT 2.0000 005036 6 WAY LOCKING HEADER 2.0000...
- Page 6 005134 680R 2W5 WIREWOUND RESISTOR 1.0000 005135 65MM HEATSINK FINNED EXTRUSION 2.0000 005686 4.8MM TERMINAL SPADE 5.0000 009391 TFX3 OUTPUT PCB ISSUE 3 1.0000 007991 9394 TFX2/TFX3 TUBE PCB ASSY 1.0000 001000 470K .25W RESISTOR 2.0000 001003 1K .25W RESISTOR 1.0000...
- Page 7 BLT Industries 15/05/2003 10231 No8x1/2" FLANGE POZI 2.0000 10234 No 8 X 3/4 CSK POZI 12.0000 10240 10 * 1 CSK POZI 4.0000 10241 NO.8x1 1/4" FLANGE Z/B 4.0000 10245 No4*1/2 CSK POZI Z/B 2.0000 10249 NO 8*1 1/2 CSK POZI 4.0000 10260 M5*30 RSD POZI STEEL BLACK...
