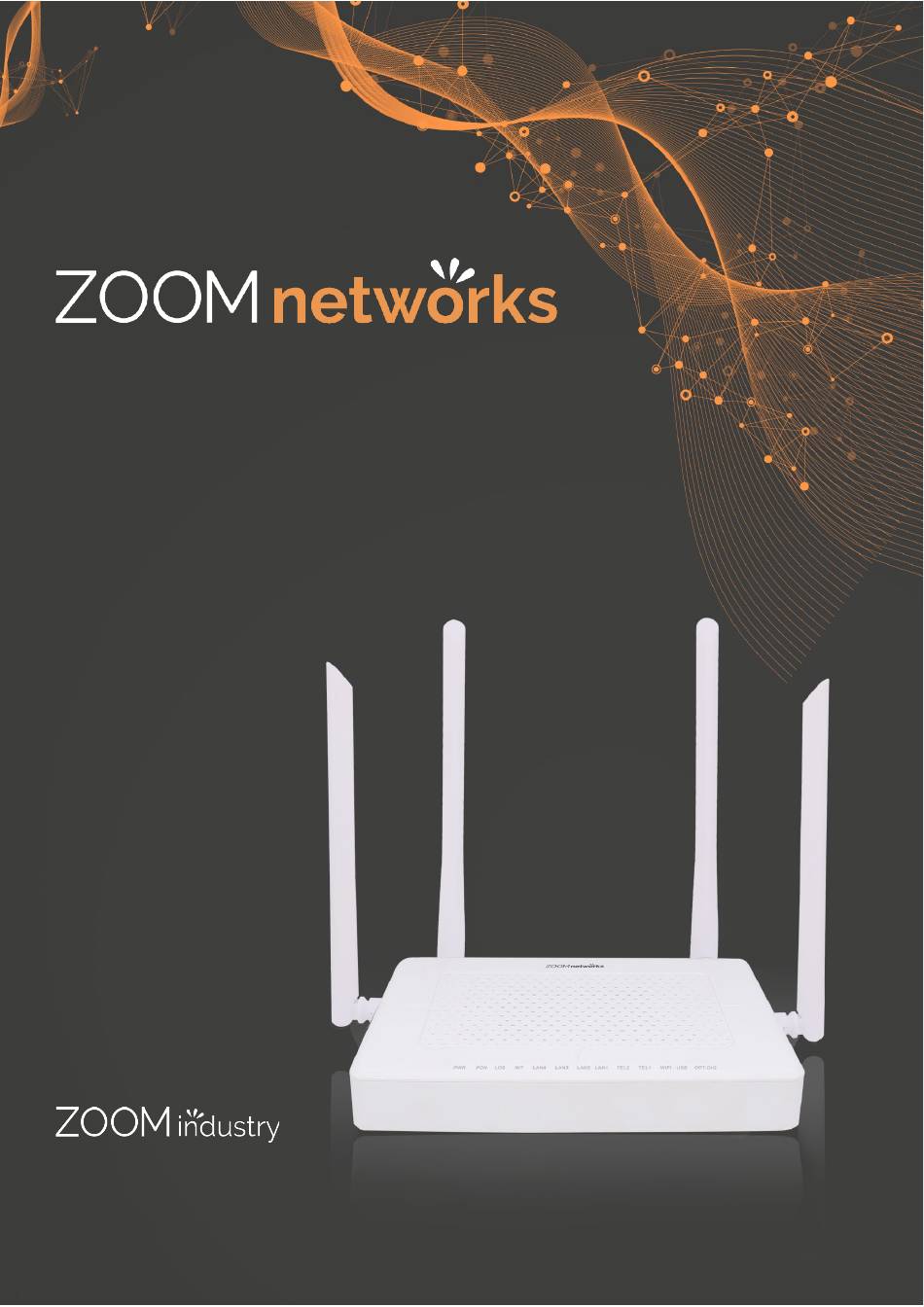

GPON HGU | 4GE+WIFI（Dual-Band) + Voice
User Guide
Version：V1.0

Advertisement

Table of Contents
loading

Related Manuals for Zoom Realtek Series

Summary of Contents for Zoom Realtek Series

  • Page 1 GPON HGU | 4GE+WIFI（Dual-Band) + Voice User Guide Version：V1.0...

  • Page 2: Table Of Contents

    Content Note ............................1 Installation Precautions ..................... 1 Precautions for Use ....................1 Brief ............................2 Product Features ......................2 Product Operation Introduction ................3 Product Specifications ....................3 Device Interface Definition ..................3 LED Definitions ......................4 Device Connection ....................4 Applications ........................
  • Page 3 TR069 Remote Management ..................22 Configure Channel for TR069 Remote Management ......... 22 10.1 TR069 Client Configuration ..................22 10.2 11 The Configuration for VoIP ..................... 23 11.1 SIP Settings ........................23 11.2 Check the VoIP Register Status and VOIP Call History .......... 24 12 Device Management .......................

  • Page 4: Note

    1 Note 1.1 Installation Precautions  Do not place the equipment near flammable or conductive items, high temperatures (such as direct sunlight) or in wet conditions, or on a PC chassis, and check that the surrounding appliances are stable.  Check the cable for aging. Check and verify that the AC or DC input voltage is within the permissible range of the device and that the polarity of the DC is correct.

  • Page 5: Brief

    (QoS) guarantee with technical performance of equipment meet the ITU- T G. 984 requirements and have good compatibility with third party manufacturers OLT. Realtek series GPON ONU can integrate wireless function with meet 802.11 n/b/g/ac technical standards and built-in high gain directional antenna, the wireless transmission rate up to 867 Mbps.

  • Page 6: Product Operation Introduction

    2.2 Product Operation Introduction The dual-mode ONU is a "combination" of GPON and EPON ONU. Compared with the single-mode EPON/GPON ONU, the main difference lies in the registration process. The dual-mode ONU adds a pre-judgment to the current application system (EPON/GPON). That is, the dual-mode ONU first switches mode, and then starts and completes registration process in the corresponding mode.

  • Page 7: Led Definitions

    2.5 LED Definitions Indicator Description On: The ONU is power on Power status Off: The ONU is Power off Blinking：Data is being transmitted WIFI WIFI On：WIFI function Opens On: Ethernet connection is normal Blinking: Data is being transmitted through the LAN1-4 GE port status Ethernet port...

  • Page 8: Applications

    Applications 3 Login Web Management Locally 3.1 Physical Connection of ONU and PC a) Local NIC of PC connects to LAN port or ETH port of ONU via wires. b) Set the IP address of PC’s local NIC as 192.168.101.X (X：2-254).

  • Page 9: Pc Access The Web Of Onu

    3.2 PC Access the WEB of ONU Make sure you can ping the ONU like #3.1. Open the IE Web browser (IE, Fir efox, Google), copy and paste URL: http: //192.168.101.1, the following pop-up Prom pt landin-g page: adminisp adminisp Input Username：...

  • Page 10: Onu Register Information Config (When Adaptive To Gpon Mode)

    You can start further configuration. 4 ONU Register Information Config (When adaptive to GPON mode) 4.1 View ONU Status 1. Login ONU WEB, select Status -> Network information -> PON, view the ONU PON status...

  • Page 11: View Onu Optical Power Information

    4.2 View ONU Optical Power Information 1. Login ONU WEB, select Status ->Network information-> PON, view Rx power and Tx power of ONU： 4.3 LOID Authentication Config LOID of ONU is mainly applicable of the authentication mode of LOID and LOID + Password for ONU.

  • Page 12: Onu Register Information Config(When Adaptive To Epon Mode)

    5 ONU Register Information Config (When adaptive to EPON mode) 5.1 View ONU Status 2. Login ONU WEB, select Status ->Network information-> PON, view the ONU status： 5.2 View ONU Optical Power Information 1. Login ONU WEB, select Status ->Network information-> PON, view Rx power and Tx power of ONU：...

  • Page 13: Loid Authentication Config

    5.3 LOID Authentication Config LOID of ONU is mainly applicable of the authentication mode of LOID and LOID + Password for ONU. By default, EPON ONU registers for the OLT by MAC and rarely uses LOID for register. Normally, we needn’t to configure LOID. But the configuration as follows: 1.

  • Page 14: Route Mode Configuration

    6.1 Route Mode Configuration 6.1.1 Configure PPPoE WAN Connection for Internet in Route Mode 1. Login ONU WEB, select Network -> WAN->WAN, and then there are some parameters for us to configure as follows: 【Enable Vlan】We can set this option according to your network plan. If there is vlan in the network for internet, we have to check ‘Enable VLAN ‘...

  • Page 15: Configure Dhcp Wan Connection For Internet In Route Mode

    2. After configuring the parameters of PPPoE WAN connection as above, click ‘ A pply Changes’ to finish the setting. 6.1.2 Configure DHCP WAN Connection for Internet in Route Mode 1．Login ONU WEB, select Network -> WAN->WAN, and then there are some parameters for us to configure as follows: 【Enable Vlan】We can set this option according to your network plan.
  • Page 16 【Vlan ID】Configure this option according to our network plan. 【802.1p_Mark】Set the priority of vlan, The same as "enable Vlan", depending on the network vlan planning to configure. The default priority is 0. 【Service Type】Choose IPOE. 【Eable NAPT】 Check ‘ NAPT ’ feature； NAPT is mainly used for address translation function of local network and external network.

  • Page 17: Configure Static Ip Address Wan Connection For Internet In Route Mode

    6.1.3 Configure Static IP Address WAN Connection for Internet in Route Mode 1．Login ONU WEB, select Network->WAN->WAN, and then there are some parameters for us to configure as follows: 【Enable Vlan】We can set this option according to your network plan. If there is vlan in the network for internet, we have to check ‘Enable VLAN ‘option.
  • Page 18 enable status. If you do not check this option, maybe you can’t surf the internet. 【Admin Status】default is Enable. 【Connect Type】Choose Internet. 【MTU】The default is 1500; we have to change to lower MTU, such as 1400, if we can ping the DNS but not access the website via WEB broswer. 【IP Protocol】Select ‘Ipv4’;...

  • Page 19: Configure Bridge Wan Connection For Internet

    2. After configuring the parameters of Static IP WAN connection as above, click ‘ A pply Changes’ to finish the setting. 6.2 Configure Bridge WAN Connection for Internet 1．Login ONU WEB, select Network -> WAN->WAN, and then there are some parameters for us to configure as follows: 【Enable Vlan】We can set this option according to your network plan.

  • Page 20: View The Wan Connection Status

    2．After configuring the parameter of Bridge WAN connection as above, click ‘ A pply Changes’ to finish the setting. 6.3 View the WAN Connection Status 1．Login ONU WEB, select Status ->Network Information->WAN. In here, we can view WAN connection status, check the route WAN connection if it gets an IP address and Bridge WAN connection if it is UP.

  • Page 21: Delete The Wan Connection

    6.4 Delete the WAN Connection Login ONU WEB, select Network ->WAN->WAN, select a WAN connection in the icon in the box of Note 4, and then click the "Delete" button at the bottom of the page to complete the deletion: 7 ONU LAN Configuration 7.1 LAN IP Address Configuration 1．Login ONU WEB, select Network->LAN->IPV4 and then there are some...

  • Page 22: View Lan Client

    【IP address】Set local management IP address of ONU. The default IP address is 192.168.101.1. 【Subnet mask】Set the mask of local management IP address of ONU. 【Ethernet to Wireless Blocking】default is Disable. 2．After configuring the parameters of LAN address as above, click ‘ A pply Changes’ to finish the setting：...

  • Page 23: Multicast/Iptv Configuration

    8 Multicast/IPTV Configuration Multicast/IPTV Service Setting RTK solution ONU multicast / IPTV service settings are mainly through the OLT to configure, including multicast vlan, snooping configuration can be configured through the OLT. The specific configuration can refer to each manufacturer's OLT to configure. 8.2 IGMP Snooping Setting 1．Login ONU WEB, select Application ->...

  • Page 24: Wireless 5G Wi-Fi Configuration

    2. After setting wireless configuration, click ‘ A pply Changes’ button to finish setting. Wireless 5G Wi-Fi configuration 5G WLAN Advance Configuration 9.2.1 1. Login ONU WEB, select Network->WLAN->5G Advance, and then there are some parameters for us to configure as follows: 【Band】The default is 5GHz(A+N+AC).

  • Page 25: Tr069 Remote Management

    TR069 Remote Management ONU TR069 remote management is mainly used for some network that support TR069 server centralized remote management, the current management is mainly used in many large networks, ONU as TR069 remote management of the client need to do the following settings.

  • Page 26: The Configuration For Voip

    11 The Configuration for VoIP 11.1 SIP Settings Firstly, login onu’s web and configure a WAN connection to carry Voice service according to #6.1 or 6.2 and select “VOICE” or “VOICE_INTERNET” or “VOICE_TR069” or “VOICE_INTERNET_TR069”in Service List. Then select Voip Settings->PORT 1(the operation of Port 2 is the same as Port 1), and then there are some parameters for us to configure as follows: 【Display name】Fill in the Auth User name that can register to the voice server.

  • Page 27: Check The Voip Register Status And Voip Call History

    11.2 Check the VoIP Register Status and VOIP Call History 1. Login onu’s web, select VoIP -> Register Status .
  • Page 28 2．Login onu’s web, select VoIP Status->VIP Call History...

  • Page 29: Device Management

    12 Device Management 12.1 Restore Default Setting Login the ONU WEB. Select Admin -> Device Management ->Backup/Restore. Click ‘Reset’ button. The device will restore the factory defaults after the application. Note: Restore Setting on the ONU WEB is taken effect to WIFI information of ONU and LAN port configuration only.

  • Page 30: Device Reboot

    12.3 Device Reboot Login the ONU WEB. Select. Click ‘Reboot’ . Restart the device immediately after application.

  • Page 31: Concluding Remarks

    Concluding Remarks Thanks for using products of ZOOM TECNOLOGIA LTDA Company Address: Edifício Office Green - 816 R. da Praça, 241 - Pedra Branca, Palhoça - SC, 88137-086 Contact Information: Telephone: (48) 3279-0400 | 0800 643 5890 Email: contato@zoomindustry.com.br Website:...
