STEP 1: Assembling the front speakers
Leave the space of
about 80 mm (3
STEP 2: Attaching the sticker to the speaker cables
e.g., Front speaker Lch
FRONT
Lch
→
1
WHITE
Speaker
P PC

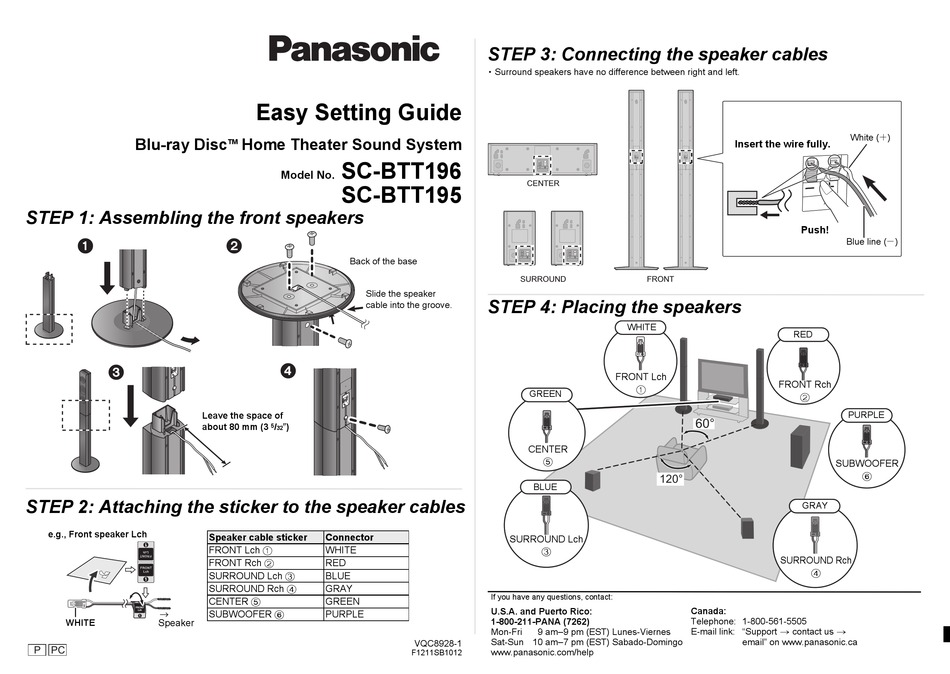

Easy Setting Guide
Home Theater Sound System
TM
SC-BTT196
Model No.
SC-BTT195
Back of the base
Slide the speaker
cable into the groove.
/
5
)
32
Speaker cable sticker
Connector
FRONT Lch
WHITE
FRONT Rch
RED
SURROUND Lch
BLUE
SURROUND Rch
GRAY
CENTER
GREEN
SUBWOOFER
PURPLE
STEP 3: Connecting the speaker cables
・ Surround speakers have no difference between right and left.
CENTER
SURROUND
STEP 4: Placing the speakers
GREEN
CENTER
BLUE
SURROUND Lch
If you have any questions, contact:
U.S.A. and Puerto Rico:
1-800-211-PANA (7262)
Mon-Fri
9 am–9 pm (EST) Lunes-Viernes
Sat-Sun 10 am–7 pm (EST) Sabado-Domingo
VQC8928-1
www.panasonic.com/help
F1211SB1012
Insert the wire fully.
FRONT
WHITE
RED
FRONT Lch
FRONT Rch
60°
120°
SURROUND Rch
Canada:
Telephone: 1-800-561-5505
E-mail link: "Support contact us
email" on www.panasonic.ca
White (
)
Push!
Blue line (
)
PURPLE
SUBWOOFER
GRAY
