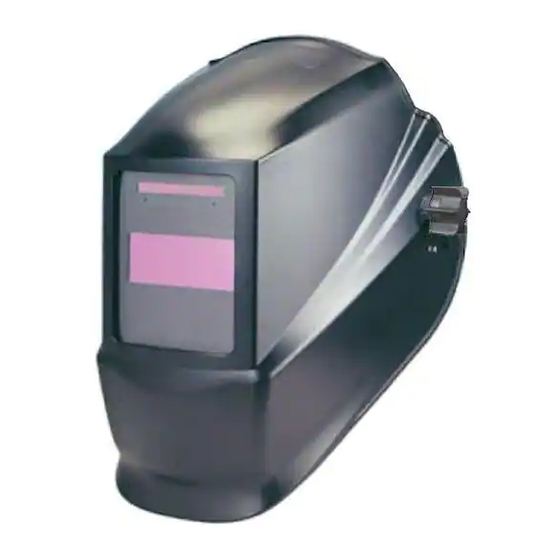

Lincoln Electric SHADE 11 Operator's Manual

Auto-darkening helmet
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
SHADE 11 AUTO-DARKENING HELMET

TABLE OF CONTENTS

• Sales and Service through Subsidiaries and Distributors Worldwide •
Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com
OPERATOR'S MANUAL
• World's Leader in Welding and Cutting Products •
Page
1
2
3
4
5
6
7
Copyright © Lincoln Global Inc.
IM10086
January, 2011

Advertisement

loading

Related Manuals for Lincoln Electric SHADE 11

Summary of Contents for Lincoln Electric SHADE 11

  • Page 1: Table Of Contents

    IM10086 SHADE 11 AUTO-DARKENING HELMET January, 2011 TABLE OF CONTENTS Page SAFETY WARNINGS – READ BEFORE USING HELMET INFORMATION, SPECIFICATIONS OPERATING INSTRUCTIONS SHADE GUIDE SETTINGS HELMET CARE AND MAINTENANCE TROUBLE SHOOTING PARTS LISTS, WARRANTY INFORMATION OPERATOR’S MANUAL Copyright © Lincoln Global Inc.

  • Page 2: Safety Warnings - Read Before Using

    SAFETY WARNINGS – READ BEFORE USING WARNING ARC Rays can injure eyes and burn skin • Before welding, always inspect helmet and filter lens to be sure they are fitted properly, in good condition and not damaged. • Check to see that the clear lens is clean and securely attached to the helmet. •...

  • Page 3: Helmet Information, Specifications

    HELMET INFORMATION This Auto-Darkening Welding Helmet will automatically change from a light state (shade 3) to a dark state (Shade 11) when arc welding starts. The filter automatically returns to a light state when the arc stops. Match your welding application to the shade indicated on the shade chart. (See Page 4) •...

  • Page 4: Operating Instructions

    OPERATING INSTRUCTIONS WARNING BEFORE FIRST USE: The Auto-Darkening welding helmet needs to be charged prior to use and after extended storage. Face the solar cell on the helmet toward sun light or light bulb for at least 1 hour before use. HEADGEAR ADjUSTMENT: TILT ADJUSTMENT P I N H O L E S F O R...

  • Page 5: Shade Guide Settings

    ALWAYS TEST TO BE SURE THE ADF CARTRIDGE IS CHARGED BEFORE WELDING. The helmet needs to be charged prior to first use and after extended storage. Face the solar cell on the helmet toward sun light or light bulb for at least 1 hour before use. P L A T E T H I C K N E S S i n .

  • Page 6: Helmet Care And Maintenance

    HELMET CARE AND MAINTENANCE Replacing Front Clear Cover Lens: Replace the front cover lens if it is damaged. Remove ADF holder assembly per Figure 1. Remove front cover lens from helmet assembly. Carefully remove gasket from cover lens. Install new cover lens into gasket and assemble to helmet shell. Make sure to assemble cover lens and gasket to helmet shell in the same way as it was removed.

  • Page 7: Trouble Shooting

    TROUBLE SHOOTING GUIDE Test your shade cartridge prior to welding by directing the front of the car- tridge toward a bright source of light, then using your fingers rapidly cover and uncover the sensors. The cartridge should darken momentarily as the sensor is exposed.

  • Page 8: Parts Lists, Warranty Information

    PARTS LIST ITEM DESCRIPTION SHELL OUTSIDE CLEAR COVER LENS SEAL OUTSIDE CLEAR COVER LENS ADAPTOR ADF CARTRIDGE ADF HOLDER HEADGEAR ASSEMBLY WARRANTY INFORMATION WARRANTY INFORMATION: These helmets are warranted for a period of two years. Please contact us at 1 (800) 833-9353 for any service or warranty questions. SPATTER DAMAGE IS NOT COVERED BY WARRANTY: Do not use this product without the correct protective clear cover lens installed properly.
