Casio AQ-47-1E2 Operation Manual

MA0905-EA
About This Manual
General Guide
• Press C to change from mode to mode.
Timekeeping Mode
Timekeeping
Use this mode to set the current time. An incorrect digital time setting will cause
incorrect operation of the calendar.
To set the digital time
Hour hand
PM
indicator
Hour
Seconds
Minutes
1. In the Timekeeping Mode, hold down B until the seconds digits start to flash,
which indicates the setting screen.
2. Press C to reset the seconds to
3. Press B to move the selection to the hour digits.
4. Press C to increase the hour digits.
5. Press B to move the selection to the minutes digits.
6. Press C to increase the minutes digits.
7. Press B to move the selection to 12/24.
8. Press C to toggle the timekeeping format between 12-hour and 24-hour.
9. Press B to exit the setting screen.
• Resetting the seconds to
causes the minutes to be increased by 1. In the range of 00 to 29, the seconds are
reset to 00 without changing the minutes.
• With the 12-hour format, the P (PM) indicator appears on the display for times in the
range of noon to 11:59 p.m. and no indicator appears for times in the range of
midnight to 11:59 a.m.
• With the 24-hour format, times are displayed in the range of 0:00 to 23:59, without
any indicator.
To set the hands
In any mode, press A with a thin object to advance the analog time setting. Each
press of A advances the time by 20 seconds. Three presses advance by one minute.
Holding down A advances the analog setting at high speed. You can only advance
the setting. You cannot reverse it.
Calendar
Use this mode to set today's date (month, day, day of the week).
To set the date
Month Day of week
Day
1. In the Calendar Mode, hold down B until the month digits start to flash, which
indicates the setting screen.
2. Press C to increase the month digits.
3. Press B to move the selection to the day digits.
4. Press C to increase the day digits.
5. Press B to move the selection to the day of the week.
6. Press C to advance to the next day.
7. Press B to exit the setting screen.
• The watch does not make any allowance for leap years. Be sure to manually set
February 29 when one occurs during a leap year.

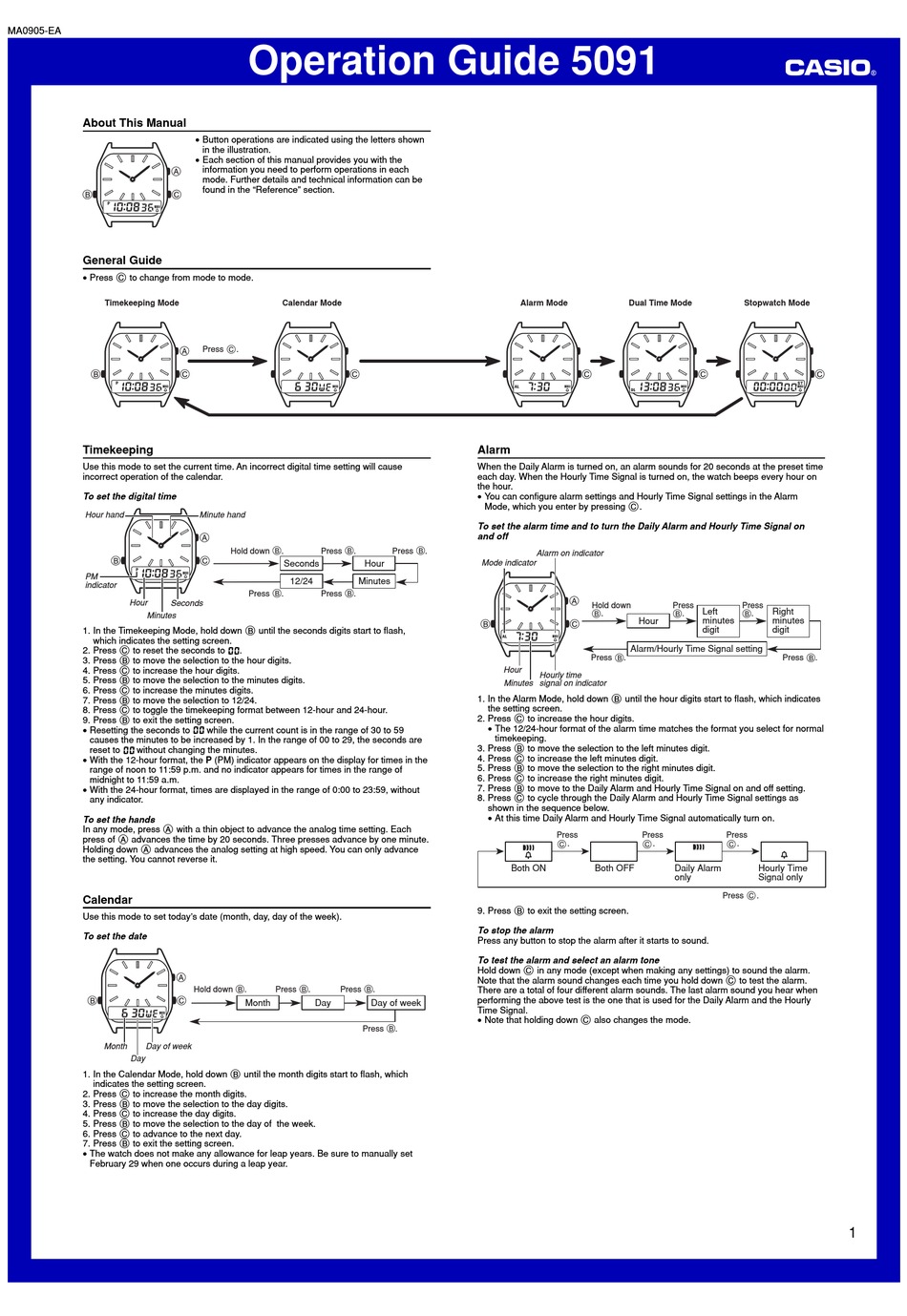

Operation Guide 5091
• Button operations are indicated using the letters shown
in the illustration.
• Each section of this manual provides you with the
information you need to perform operations in each
mode. Further details and technical information can be
found in the "Reference" section.
Calendar Mode
Press .
Minute hand
Hold down . Press .
Seconds
12/24 Minutes
Press . Press .
00 .
00 while the current count is in the range of 30 to 59
Hold down . Press . Press
Month Day
Press
Alarm Mode
Alarm
When the Daily Alarm is turned on, an alarm sounds for 20 seconds at the preset time
each day. When the Hourly Time Signal is turned on, the watch beeps every hour on
the hour.
• You can configure alarm settings and Hourly Time Signal settings in the Alarm
Mode, which you enter by pressing C.
To set the alarm time and to turn the Daily Alarm and Hourly Time Signal on
and off
Press .
Hour Mode indicator
Hour
Minutes
1. In the Alarm Mode, hold down B until the hour digits start to flash, which indicates
the setting screen.
2. Press C to increase the hour digits.
• The 12/24-hour format of the alarm time matches the format you select for normal
timekeeping.
3. Press B to move the selection to the left minutes digit.
4. Press C to increase the left minutes digit.
5. Press B to move the selection to the right minutes digit.
6. Press C to increase the right minutes digit.
7. Press B to move to the Daily Alarm and Hourly Time Signal on and off setting.
8. Press C to cycle through the Daily Alarm and Hourly Time Signal settings as
shown in the sequence below.
• At this time Daily Alarm and Hourly Time Signal automatically turn on.
Both ON
9. Press B to exit the setting screen.
To stop the alarm
Press any button to stop the alarm after it starts to sound.
To test the alarm and select an alarm tone
Hold down C in any mode (except when making any settings) to sound the alarm.
Note that the alarm sound changes each time you hold down C to test the alarm.
.
There are a total of four different alarm sounds. The last alarm sound you hear when
performing the above test is the one that is used for the Daily Alarm and the Hourly
Day of week
Time Signal.
• Note that holding down C also changes the mode.
.
Dual Time Mode
Alarm on indicator
Hold down Press
Left
. .
minutes
Hour
digit
Alarm/Hourly Time Signal setting
Press .
Hourly time
signal on indicator
Press Press
. .
Both OFF Daily Alarm
only
Stopwatch Mode
Press
Right
.
minutes
digit
Press .
Press
.
Hourly Time
Signal only
Press .
1
