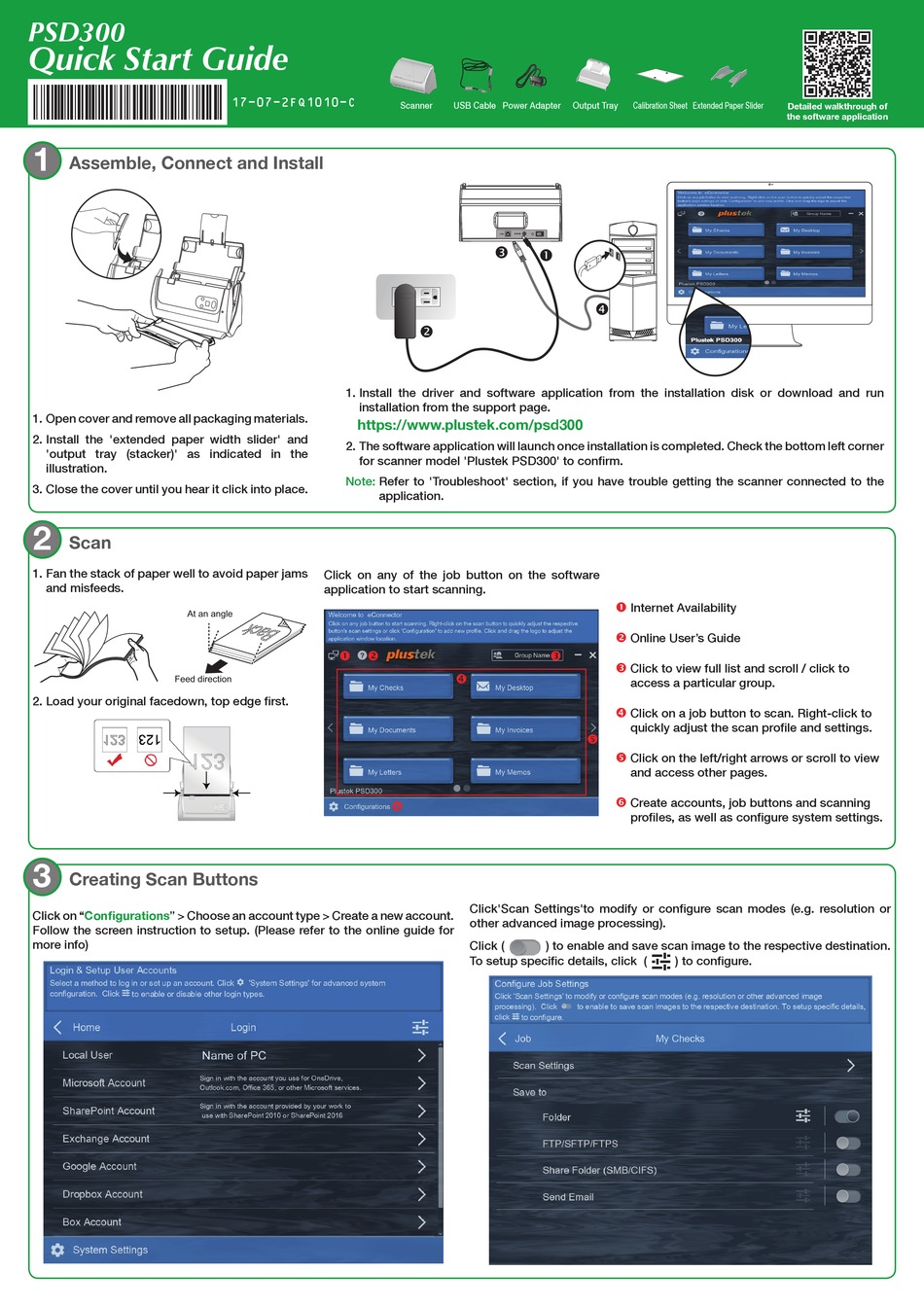

Plustek PSD300 Quick Start Manual

PSD300
Quick Start Guide
1
Assemble, Connect and Install
1. Open cover and remove all packaging materials.
2. Install the 'extended paper width slider' and
'output tray (stacker)' as indicated in the
illustration.
3. Close the cover until you hear it click into place.
2
Scan
1. Fan the stack of paper well to avoid paper jams
and misfeeds.
At an angle
Feed direction
2. Load your original facedown, top edge first.
3
Creating Scan Buttons
Click on "Configurations" > Choose an account type > Create a new account.
Follow the screen instruction to setup. (Please refer to the online guide for
more info)
Scanner USB Cable Power Adapter
1. Install the driver and software application from the installation disk or download and run
installation from the support page.
https://www.plustek.com/psd300
2. The software application will launch once installation is completed. Check the bottom left corner
for scanner model 'Plustek PSD300' to confirm.
Note: Refer to 'Troubleshoot' section, if you have trouble getting the scanner connected to the
application.
Click on any of the job button on the software
application to start scanning.
 


Click'Scan Settings'to modify or configure scan modes (e.g. resolution or
other advanced image processing).
Click (
To setup specific details, click (
Output Tray Calibration Sheet Extended Paper Slider
Internet Availability

Online User's Guide


Click to view full list and scroll / click to

access a particular group.
Click on a job button to scan. Right-click to

quickly adjust the scan profile and settings.

Click on the left/right arrows or scroll to view

and access other pages.
Create accounts, job buttons and scanning

profiles, as well as configure system settings.
) to enable and save scan image to the respective destination.
) to configure.
Detailed walkthrough of
the software application
