用户手册 有关本设备所有功能的信息, 请参阅参考手册。 您可从TASCAM网站上下载参考手册的电 子版。 OWNER’S MANUAL Please see the Reference Manual for information about all the unit’s functions. You can download the Reference Manual from the TASCAM website. Mixcast 4 https://tascam.jp/int/product/mixcast_4/docs 使用说明书发行日期: 2022 年1月 生产商︰蒂雅克株式会社 地址︰ 东京都多摩市落合一丁目 47 番地...
Page 2
TASCAM is a registered trademark of TEAC Corporation. o SDXC Logo is a trademark of SD-3C, LLC. o The Bluetooth® word mark and logo are the property of Bluetooth SIG, Inc. and are used by TEAC Corporation with permission.
将交流电源适配器的 DC 插头连接到本设备后面的 DC IN 12V 连 接器。 注意 旋转 DC 插头上的螺母,将其固定到 DC IN 12V 连接器上。 o 请勿连接兼容插入式电源的麦克风。否则可能因此造成损坏。 将交流电源适配器连接到插座。 o 选择“电容式”作为 MIC INPUT 插孔的麦克风设置时,会打 开幻象电源(+48V) 。如果连接动圈式麦克风,会损坏麦克风。 V 注意 连接耳机 始终连接指定用于本设备的随附交流电源适配器(PS-P1220E NUT) 。 使用其他类型的适配器可能导致故障、火灾或触电。 将耳机连接到后面的 PHONES 1–4 插孔。 TASCAM Mixcast 4...
动圈式 : 连接动圈式麦克风。 o 电容式 : 连接电容式麦克风。 点击 Home 画面上的菜单 ( )图标以打开菜单画面。 注意 o 选择“电容式”时,提供 + 48V 电源以供给该 MIC 输入。断开 电容式麦克风前,将设置更改为“动圈式”以关闭 +48V 电源。 o 将动圈式麦克风连接到设置为“电容式”的 MIC INPUT 插孔 可能会损坏麦克风。 在 Home 画面上,前一个画面上设置为“电容式”的 MIC 输入 声道编号旁边将出现红点。 Home 画面 麦克风类型选为“电容式” 带有电容式指示灯的画面 TASCAM Mixcast 4...
如果本设备靠近电视机、收音机、功放或其他带有大型变压器的 设备,则本设备或附近的其他设备可能会产生噪音。 (参见第 17 页的放置和使用时的注意事项。 ) 蓝牙发出的声音中断或出现噪声 o 附近是否有无线 LAN 设备、其他蓝牙设备、微波炉或类似设备? 在使用过程中,请尽量远离此类设备。 o 尝试缩短本设备和其他设备间的距离。尝试改变本设备和其他蓝 牙设备的位置。 o 在智能手机上播放音乐以外的其他应用程序可能会导致声音中断。 在这种情况下,请停止播放音乐以外的应用程序。 使用蓝牙时无法连接或通信中断 o 确认其他蓝牙设备的电源已打开并且已开启蓝牙功能。 o 确认另一台蓝牙设备位于本设备不远处。 本设备和另一台蓝牙设备之间是否有墙壁或其他障碍物? o 尝试改变本设备和其他蓝牙设备的位置。 o 关闭设备一次,然后重新启动。 o 从另一台蓝牙设备上删除“TASCAM Mixcast”配对记录,然后尝 试再次将本设备与该蓝牙设备配对。 (详见第 12 页的“与蓝牙 设备连接” ) TASCAM Mixcast 4...

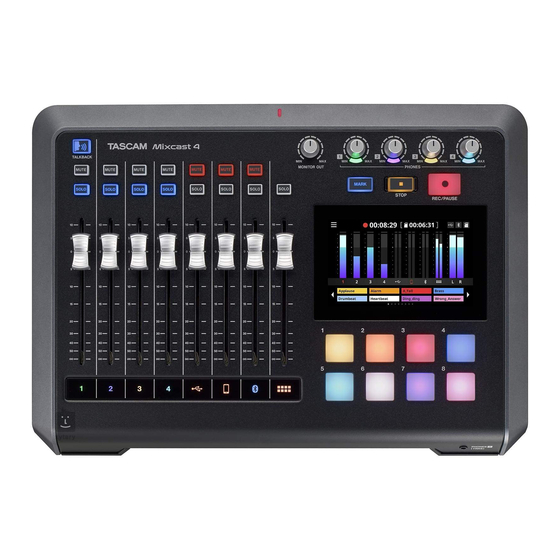

Introduction Introduction ..................21 Included items ..................21 Names of Parts ..................24 Thank you very much for purchasing the TASCAM Mixcast 4. Top ..........................24 This USB audio interface designed for podcasting includes built-in sound Back ..........................25 pad functions and allows effect sounds, for example, to be added to conversations with multiple participants.
Page 22
(volume) from earphones or headphones can cause hearing loss. o If you are experiencing problems with this product, contact TEAC for a service referral. Do not use the product until it has been repaired. TASCAM Mixcast 4...
Page 23
Band. Maximum output power: Bluetooth® Class 2 (less than 2.5 mW) Please use only in the country where you purchased the product. Depending on the country, restrictions on the use of Bluetooth wireless technology might exist. TASCAM Mixcast 4...
Press these buttons to play the effect sounds, background music and other audio assigned to them. OUT jacks on the back. Use the TASCAM Podcast Editor software to set the audio sources. 6 PHONES 1–4 knobs (See TASCAM Podcast Editor overview page 32 and SOUND PAD Use these to adjust the output levels of headphones connected to button overview page 33.)
Connect monitor speakers (powered speakers or an amplifier and speaker system) or recording equipment to these. (See Connecting monitor speakers page 26 and Connecting re- cording equipment page 26.) o Use the MONITOR OUT knob on the top to adjust the output level. TASCAM Mixcast 4...
Do not connect mics that are compatible with plug-in power. Doing so could cause damage. i When “Condenser” is selected as the mic setting for a MIC INPUT jack, phantom power (+48V) will be turned on. Doing so could damage dynamic mics if they are connected. TASCAM Mixcast 4...
TEAC Global Site (https://teac-global. Use of a different adapter could cause malfunction, fire or electric shock. com). Check the page for this product. You can also contact TASCAM customer support service. Turning the power on and off Open the SD card slot cover on the back and insert the card in the slot until it clicks into place.
5 Bluetooth icon icon appears when a Bluetooth device is connected. The Date Time Adjust Screen icon blinks when waiting to pair. 6 SD card icon When an SD card is loaded, the icon appears. TASCAM Mixcast 4...
Tap the type for the selected mic. o Sound pad settings ( This opens the Sound Pad Settings Screen. o Hardware settings ( This opens the Hardware Settings Screen. o SD card settings ( This opens the SD Card Settings Screen. Level Screen TASCAM Mixcast 4...
MIC inputs set to “Condenser” on the previous screen. Pairing button on Level Screen Select “TASCAM Mixcast” on the Bluetooth device to be paired. After pairing completes, inputting sound from the Bluetooth device and outputting sound from the unit to the Bluetooth device will be possible.
Home Screen. Press the REC/PAUSE (0) button on the top when stopped to start recording. Click “Properties” for “Mixcast 4” to open the Microphone Properties When recording starts, the REC/PAUSE ( 0 ) button will light red, screen.
Tap the name of the podcast you want to play to select it. Podcast Editor) on the App Store. Then, download and install it. On an Android device For Android devices, please get the APK file from the TASCAM website. Then, download and install it. https://tascam.cn/cn/product/tascam_podcast_editor/download Play Screen Some functions have limits with Android devices.
Assigning sounds to SOUND PAD buttons Pad Sounds Screen TASCAM Podcast Editor (hereafter “Podcast Editor”) must be used to assign sounds to pads. Depending on the Android device, some func- NOTE tions might have limits. For details, see the TEAC Global Site (https:// The Podcast Editor default effect sounds are assigned to the Bank 1 teac-global.com/).
Turn the unit off once and restart it. No sound is output p Remove the “TASCAM Mixcast” pairing record from the other Blue- p Are the faders and knobs raised to suitable levels? tooth device, and try pairing the unit with that Bluetooth device p Check the settings of the connected equipment again.
When transporting them, put them into cases, for example. To receive support after purchase, on the TASCAM Distributors list page of the TEAC Global Site (https://teac-global.com/), search for the local SD card write protection company or representative for the region where you purchased the product and contact that organization.
Number of inputs: 14 channels (Output from this unit) LINE OUT (TRRS) jack (CTIA standard) Number of outputs: 2 channels (Input to this unit) Connector: 3.5 mm (1/8") 4-pole mini jack Maximum output level: −25 dBu Nominal output level: −45 dBu Output impedance: 100 Ω TASCAM Mixcast 4...
Windows Supported operating systems Windows 10 64-Bit Computer hardware requirements Windows computer with a USB 2.0 (or higher) *Operation is not guaranteed using the TASCAM driver with ARM64 CPUs. Supported operating systems macOS Big Sur (11) macOS Catalina (10.15) Computer hardware requirements Mac with a USB 2.0 (or higher)
Dimensional drawings 374.8 mm 71.2 mm 56.5 mm p Illustrations in this manual might differ in part from the actual product. p Specifications and external appearance might be changed without notification. TASCAM Mixcast 4...
