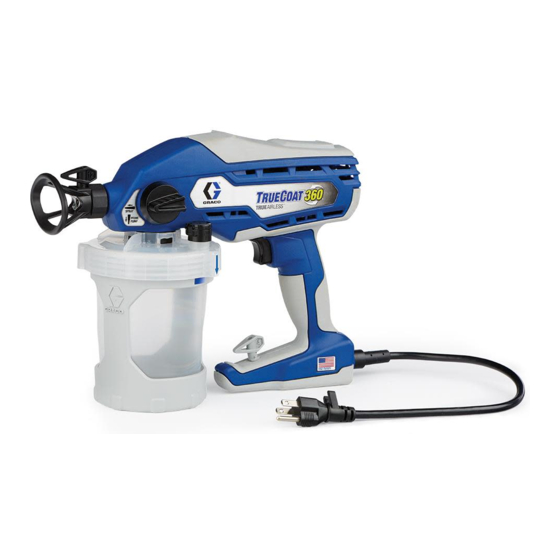

Graco TrueCoat 360 Quick Manual

QUICK GUIDE
WARNING
Read Owner's Manual (3A9014) for complete instructions and
warnings. This quick guide is not a substitute for reading and
understanding all instruction manuals and warning labels supplied
with the equipment. Manuals are available at
Follow pressure relief procedure and wear protective
equipment including but not limited to protective eye wear.
SKIN INJECTION HAZARD: Keep clear of spray tip and leaks.
FIRE AND EXPLOSION HAZARD: Use only non-flammable or
water-based materials. Follow fire and explosion warnings
as listed in your manual.
FAILURE TO FOLLOW ALL WARNINGS CAN RESULT IN SERIOUS
INJURY, AMPUTATION, OR DEATH.

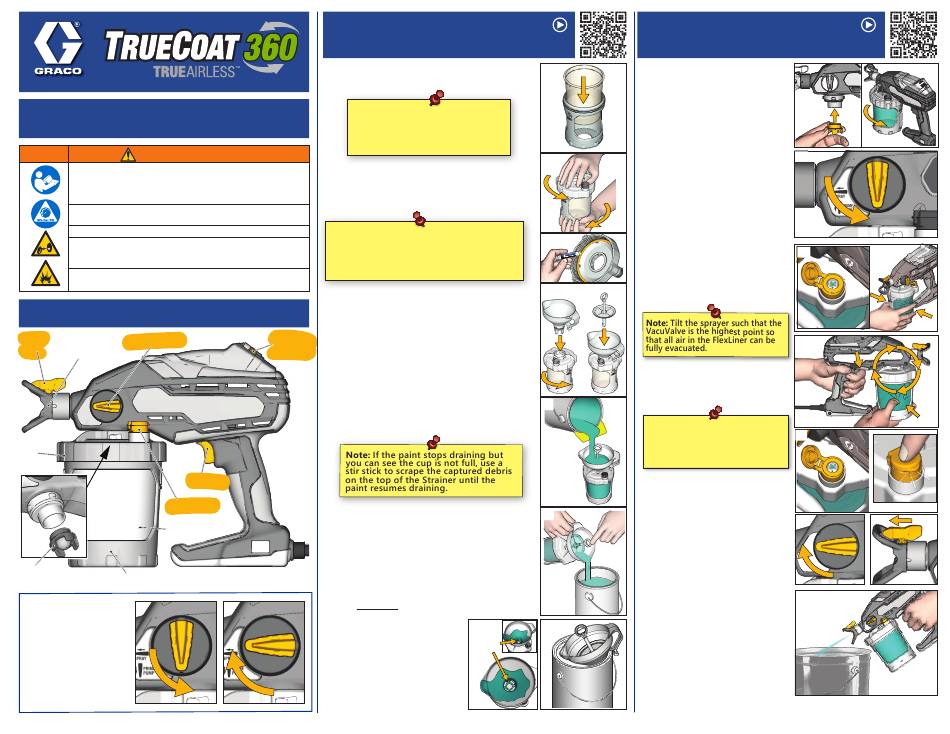

KNOW YOUR SPRAYER
Spray Spray Tip
Prime Knob
Tip
Guard
Cup
Lid
Trigger
VacuValve
FlexLiner
Pump
Filter
Cup Support
*Speed control available on select models only.
Prime Knob
Turn Prime knob down
to PRIME position to
relieve system pressure.
Turn Prime Knob
forward to SPRAY
position to spray fluid.
SETUP
1
Insert one FlexLiner™ into
the Cup Support.
Note: Verify there is no damage to
the top sealing edge of the FlexLiner,
such as a crease or fold. If damaged it
will leak air and lose prime.
2
Firmly tighten the Cup Lid onto the Cup
Support to ensure an air tight seal.
graco.com
Note: To ensure an airtight seal, the gasket
inside the Cup Lid is lubricated by the factory.
If lubrication has washed away, apply Seal
Lube (included) to the gasket.
3
Insert the Funnel into the Cup Lid, twist to
lock. Snap the Strainer into the Funnel to
strain your paint as you fill the cup.
Speed
Control*
4
The Strainer's Air Tube will prevent paint from
overfilling the cup. Fill the cup as follows:
4a . Watching the Funnel (not the cup) slowly
pour paint into the Funnel. When the
paint stops draining down, the cup is full.
™
4b. With Funnel and Strainer
™
still attached to cup, pour
excess paint from the
Funnel back into paint can.
4c. Lift up the Strainer and
look to verify you can see
crossbars in the bottom of
Funnel. If not, the cup is
overfilled, pour excess
paint from the Funnel
back into paint can.
4d. Remove the Funnel/Strainer
from the cup and hook on
edge of paint can.
SCAN TO WATCH
SETUP VIDEO
1
1
2
2
3 Strainer
Funnel
4a
Note: This will purge all
air from the pump and cup.
Paint will not spray out, but will
recirculate through the pump and
back into the cup.
4b
3
4
4c 4d
Crossbars
STARTUP
SCAN TO WATCH
STARTUP VIDEO
Install the cup onto the 1
sprayer as follows:
1a . Verify Pump Filter is
installed and clean.
1b . Align VacuValve ™
(on Cup Lid) with Prime
Knob (on sprayer).
1c . Push cup assembly onto
2a
sprayer, twist to lock.
Prime the pump as follows:
2a . Verify Prime Knob is pointed
down to PRIME position.
2b . Plug the sprayer into a
grounded power source.
2c
2c . Open the VacuValve cap and
gently squeeze the FlexLiner
until no more air bubbles
appear in the VacuValve.
2d
2d. Continue to squeeze the
FlexLiner while pulling the
Trigger for 10 seconds.
2e
2e. When no more air bubbles
appear in the VacuValve,
release the Trigger and
close the VacuValve cap.
3
Turn Prime Knob forward to
SPRAY position. Verify Spray
Tip is forward in SPRAY
position.
4
Point the sprayer into a
waste pail and pull the
Trigger for 5 seconds to
spray out storage fluid.
• To avoid pump damage,
if the sprayer does not
spray after 5 seconds
STOP and repeat STARTUP.
You are now ready to spray!
