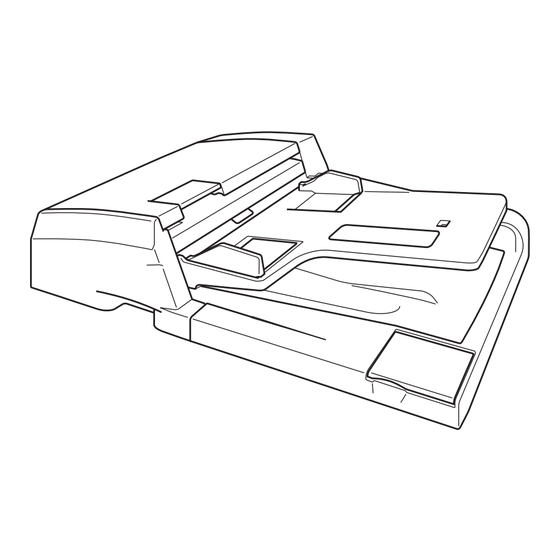

INSTALLATION GUIDE FOR THE DOCUMENT PROCESSOR
GUIDE D'INSTALLATION POUR LE PROCESSEUR DE DOCUMENT
GUIA DE INSTALACIÓN PARA EL PROCESADOR DE DOCUMENTOS
INSTALLATIONSANLEITUNG FÜR DOKUMENTENPROZESSOR
GUIDA ALL'INSTALLAZIONE DEL PROCESSORE DI DOCUMENTI
原稿自動送り装置設置手順書
DP-710

Advertisement

loading

Summary of Contents for Kyocera KM-C3225

  • Page 1 INSTALLATION GUIDE FOR THE DOCUMENT PROCESSOR GUIDE D’INSTALLATION POUR LE PROCESSEUR DE DOCUMENT GUIA DE INSTALACIÓN PARA EL PROCESADOR DE DOCUMENTOS INSTALLATIONSANLEITUNG FÜR DOKUMENTENPROZESSOR GUIDA ALL’INSTALLAZIONE DEL PROCESSORE DI DOCUMENTI 原稿自動送り装置設置手順書 DP-710...
  • Page 3 English Supplied parts A DP... 1 B Original mat ... 1 C Label “Operation procedure” (except for 100 V models) ... 2 D Caution label “Remove original!” (except for 100 V models) ... 1 Français Pièces fournies A DP... 1 B Plaque d’original ...
  • Page 4 Remove fixing tape and spacer. 1. Remove the fixing tape (1) from the original feed unit cover of DP (A). 2. Open original feed unit cover (2). 3. Remove spacer (3). Retirer la bande adhésive de fixation et l’entretoise. 1. Retirer la bande adhésive de fixation (1) du couvercle de l’unité...
  • Page 5 Connect the signal lines. 7. Connect signal line (5) of DP (A) to the MFP and turn fixing knobs (6) at the both sides of the connecter clockwise to secure the line. Connecter les circuits de transmis- sion. 7. Connecter le circuit de transmission (5) du DP (A) au MFP et tourner les boutons de fixation (6) de chaque côté...
  • Page 6 Adhere the label “Operation proce- dure” (except for 100 V models) 8. Clean the label surface of the original feed unit cover with alcohol. 9. Adhere label “Operation procedure” (C) of which the language corresponding to the destination of the MFP on to the existing label of the original feed unit cover.
  • Page 7 [Operation check] 1. To check the machine operation, prepare original (a) where 4 lines (b) are drawn 20 mm from the edges of the A3 sheet and 1 line (c) is drawn at its center. 2. Connect the power plug of the MFP into the wall outlet and turn the main power on. 3.
  • Page 8 Be sure to adjust in the following order. If not, the adjustment cannot be performed correctly. ● For the adjustment of DP oblique position, see page 7. ● For the adjustment of DP original size, see page 9. ● For the adjustment of DP leading edge timing, see page 11. <Reference value> within ±2.5 mm ●...
  • Page 9 [Checking DP oblique position] 1. Check the horizontal gap between line (1) of original (a) and line (2) of copy example positions. If the gap exceeds the reference value, adjust the gap according to the following procedure. <Reference value> For single copying: The horizontal gap of line (2) should be within ±3 mm. For duplex copying: The horizontal gap of line (2) should be within ±4 mm.
  • Page 10 Adjusting the DP oblique position. 1. Turn screw (3) at the side of the right hinge and turn adjusting screw (4) at the rear side of the right hinge to adjust the DP position. For copy example (d): Turn the adjusting screw clockwise and move the DP to the inner side.
  • Page 11 [Checking DP original size] 1. Check the gap between line (1) of original (a) and line (2) of copy example. If the gap exceeds the reference value, adjust the gap according to the following procedure. <Reference value> Vertical gap of line (2): within ±1.5% [Vérification du format d’original du DP] 1.
  • Page 12 2. Adjust the values. For the shorter length copy example (f): Increases the value. For the longer length copy example (g): Decreases the value. Change per step: 0.15 mm 2. Régler les valeurs. Pour l’exemple de copie dont la longueur est plus courte (f) : augmen- ter la valeur.
  • Page 13 [Checking the DP leading edge timing] 1. Check the gap between line (1) on original (a) and line (2) of copy example. If the gap exceeds the reference value, adjust the gap according to the following procedure. <Reference value> Vertical gap of line (2): within ±2.5 mm [Vérification de la synchronisation du bord avant du DP] 1.
  • Page 14 2. Adjust the values. For the faster leading edge timing, copy examples (h): Decreases the value. For the slower leading edge timing, copy examples (i): Increases the value. Change per step: 0.19 mm 2. Régler les valeurs. Pour les exemples de copie dont la synchronisation du bord avant est plus rapide (h) : diminuer la valeur.
  • Page 15 [Checking the DP original center line] 1. Check the gap between center line (1) on original (a) and center line (2) of copy example. If the gap exceeds the reference value, adjust the gap according to the following procedure. <Reference value> Horizontal difference of center line (2) for the sin- gle copying: ±2 mm Horizontal difference of center line (2) for the duplex copying: ±3 mm...
  • Page 16 2. Adjust the values. If the center moves more front, copy example (j): Increases the value. If the center moves inner, copy sample (k): Decreases the value. Change per step: 0.085 mm 2. Régler les valeurs. Pour l’exemple de copie (j) dont l’axe se déplace davantage vers l’avant : augmenter la valeur.
  • Page 17 [Adjustment using the DP auto adjustment original] 1. Set maintenance mode U76 and press the START key. 2. Face F and R of the DP auto adjustment original up, and place the original from the edge where F and R are marked. Press the START key. 3.
  • Page 18 MEMO...
  • Page 19 MEMO...
  • Page 20 2006. 2 303J956710 Rev.1.0...
