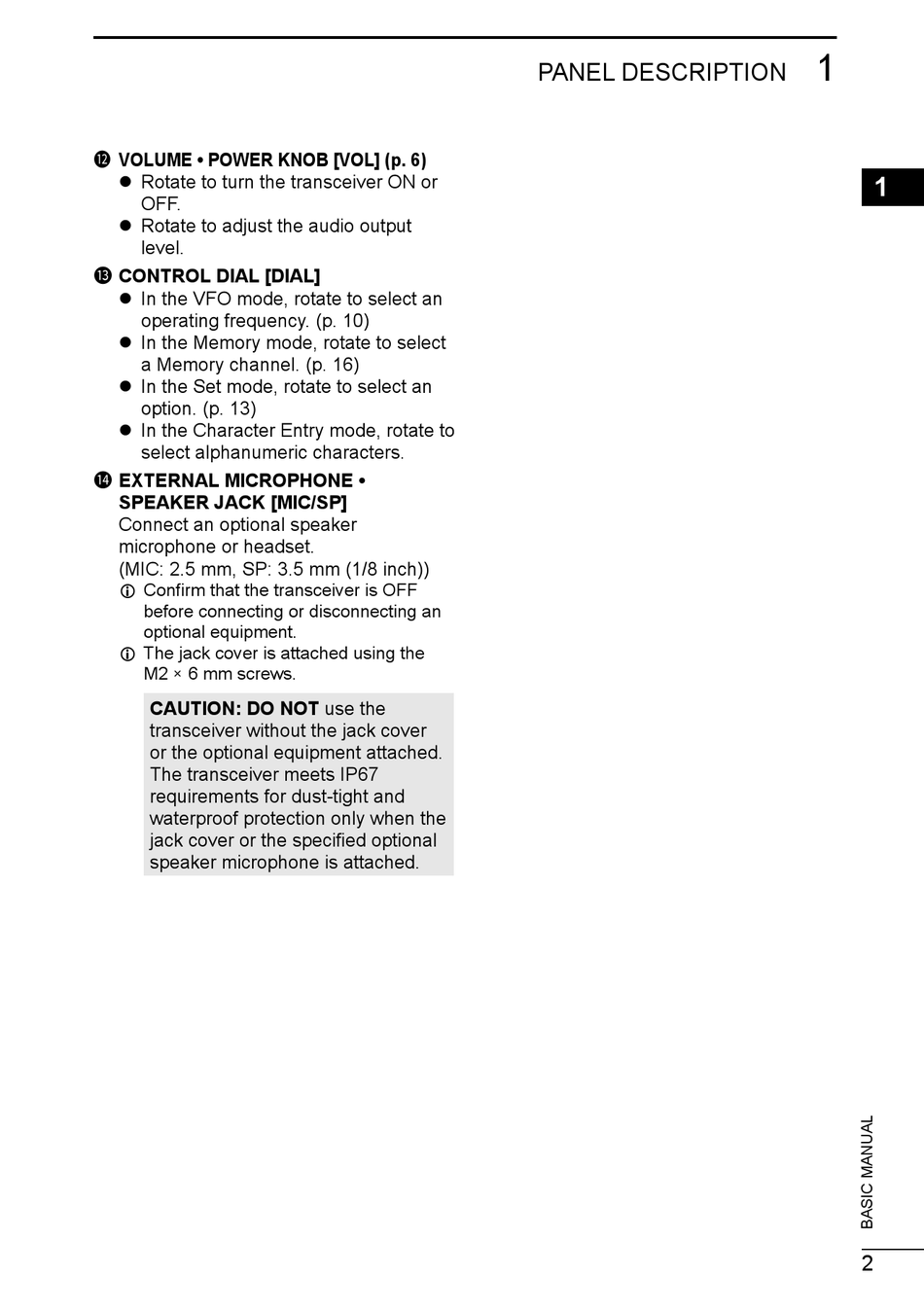

12 VOLUME • POWER KNOB [VOL] (p� 6)
z Rotate to turn the transceiver ON or
OFF.
z Rotate to adjust the audio output
level.
13 CONTROL DIAL [DIAL]
z In the VFO mode, rotate to select an
operating frequency. (p. 10)
z In the Memory mode, rotate to select
a Memory channel. (p. 16)
z In the Set mode, rotate to select an
option. (p. 13)
z In the Character Entry mode, rotate to
select alphanumeric characters.
14 EXTERNAL MICROPHONE •
SPEAKER JACK [MIC/SP]
Connect an optional speaker
microphone or headset.
(MIC: 2.5 mm, SP: 3.5 mm (1/8 inch))
L Confirm that the transceiver is OFF
before connecting or disconnecting an
optional equipment.
L The jack cover is attached using the
M2 × 6 mm screws.
CAUTION: DO NOT use the
transceiver without the jack cover
or the optional equipment attached.
The transceiver meets IP67
requirements for dust-tight and
waterproof protection only when the
jack cover or the specified optional
speaker microphone is attached.
