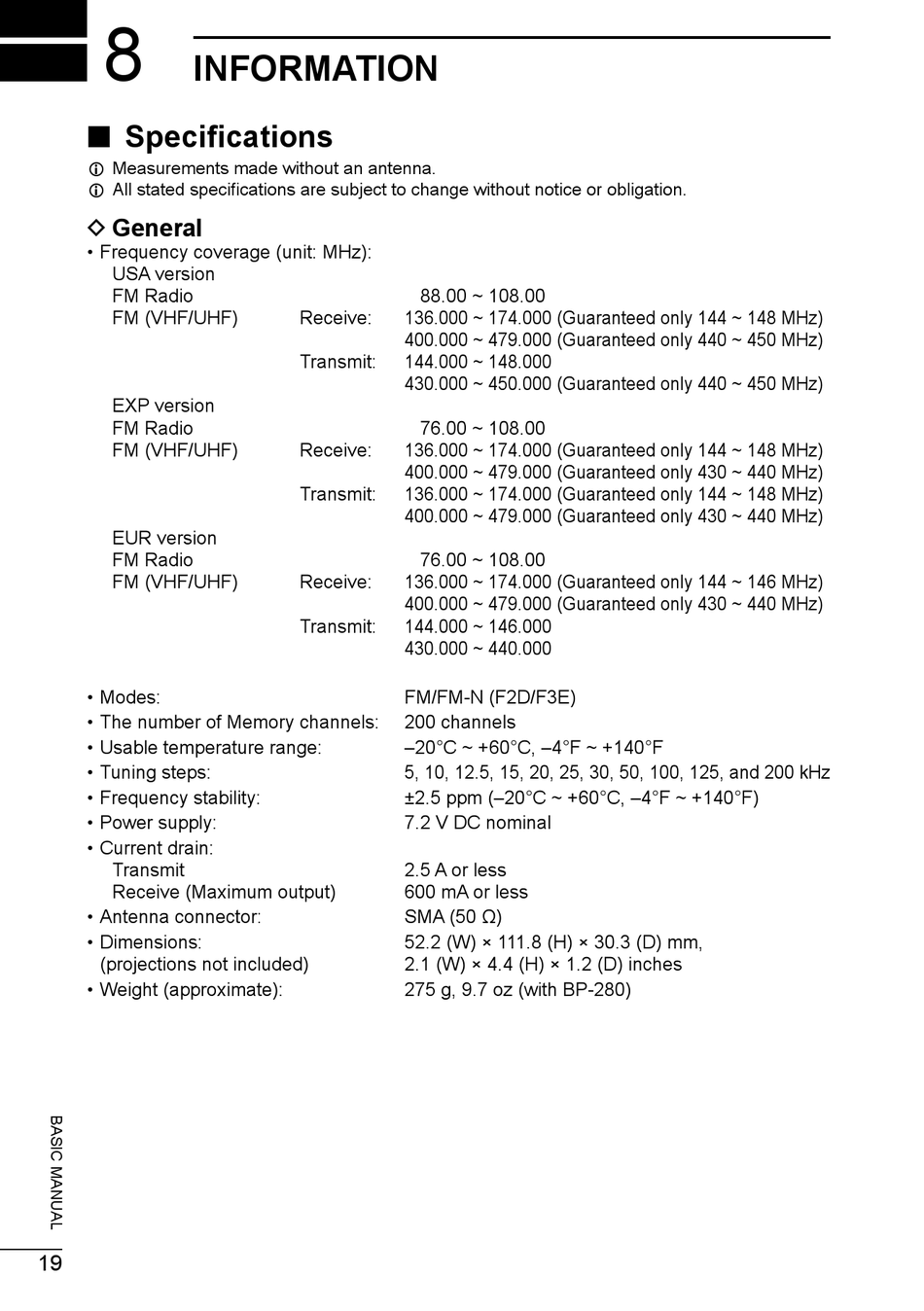

8
INFORMATION
■ Specifications
L Measurements made without an antenna.
L All stated specifications are subject to change without notice or obligation.
D General
• Frequency coverage (unit: MHz):
USA version
FM Radio
FM (VHF/UHF)
EXP version
FM Radio
FM (VHF/UHF)
EUR version
FM Radio
FM (VHF/UHF)
• Modes:
• The number of Memory channels:
• Usable temperature range:
• Tuning steps:
• Frequency stability:
• Power supply:
• Current drain:
Transmit
Receive (Maximum output)
• Antenna connector:
• Dimensions:
(projections not included)
• Weight (approximate):
19
88.00 ~ 108.00
136.000 ~ 174.000 (Guaranteed only 144 ~ 148 MHz)
Receive:
400.000 ~ 479.000 (Guaranteed only 440 ~ 450 MHz)
144.000 ~ 148.000
Transmit:
430.000 ~ 450.000 (Guaranteed only 440 ~ 450 MHz)
76.00 ~ 108.00
136.000 ~ 174.000 (Guaranteed only 144 ~ 148 MHz)
Receive:
400.000 ~ 479.000 (Guaranteed only 430 ~ 440 MHz)
136.000 ~ 174.000 (Guaranteed only 144 ~ 148 MHz)
Transmit:
400.000 ~ 479.000 (Guaranteed only 430 ~ 440 MHz)
76.00 ~ 108.00
136.000 ~ 174.000 (Guaranteed only 144 ~ 146 MHz)
Receive:
400.000 ~ 479.000 (Guaranteed only 430 ~ 440 MHz)
144.000 ~ 146.000
Transmit:
430.000 ~ 440.000
FM/FM-N (F2D/F3E)
200 channels
–20°C ~ +60°C, –4°F ~ +140°F
5, 10, 12.5, 15, 20, 25, 30, 50, 100, 125, and 200 kHz
±2.5 ppm (–20°C ~ +60°C, –4°F ~ +140°F)
7.2 V DC nominal
2.5 A or less
600 mA or less
SMA (50 Ω)
52.2 (W) × 111.8 (H) × 30.3 (D) mm,
2.1 (W) × 4.4 (H) × 1.2 (D) inches
275 g, 9.7 oz (with BP-280)
