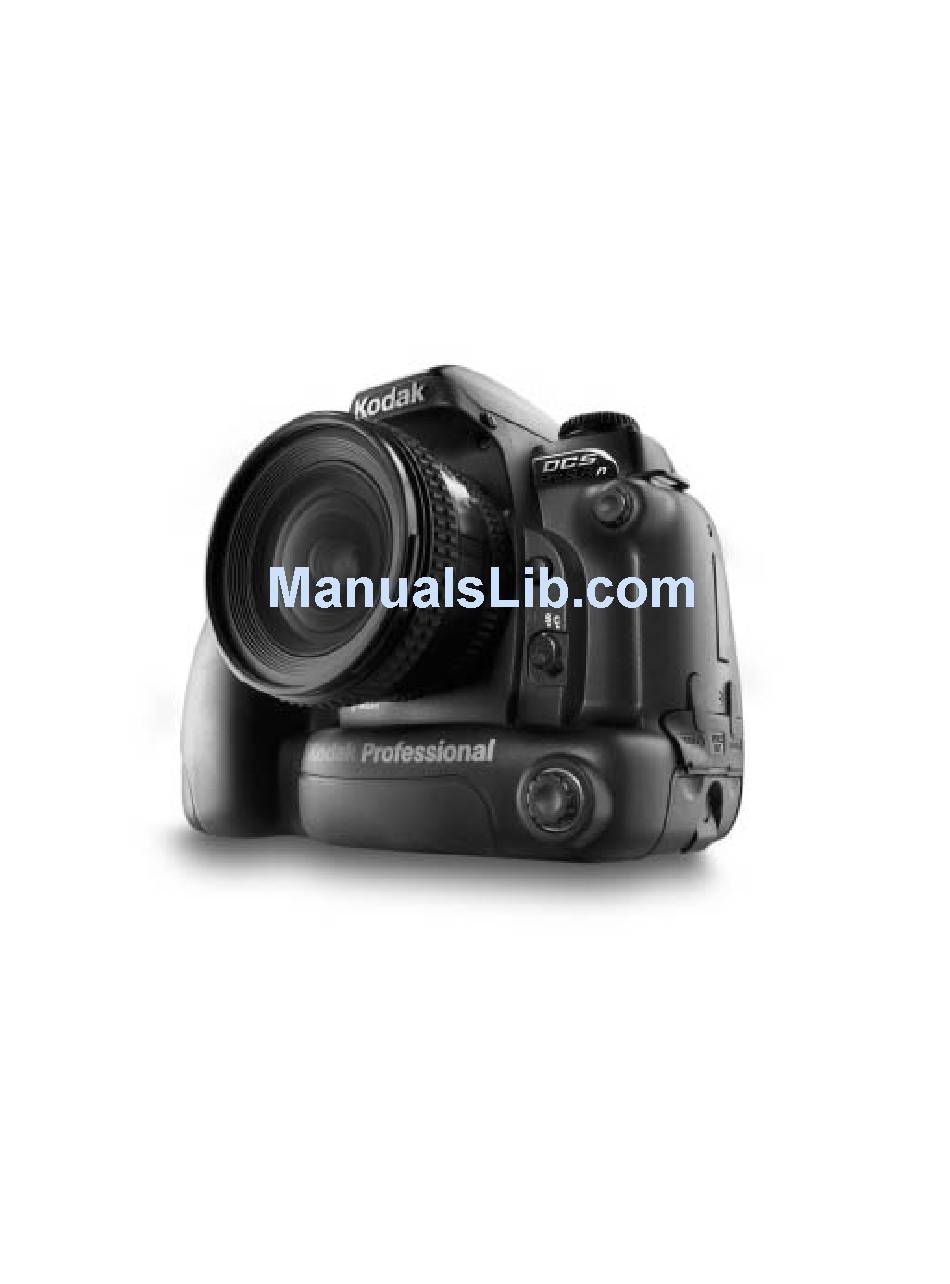

- Page 1 KODAK PROFESSIONAL DCS Pro SLR/n Digital Camera User’s Guide – Lens Optimization Section P/N 4J1533...
-
Page 2: Table Of Contents
Lens Optimization Overview ...…………………………………………………………………………...…. 5-27 Selecting the Method of Lens Optimization ... 5-28 Auto ...…………………………………………………………………………...… 5-28 Manual ..…………………………………………………………………………...… 5-29 Select a Lens from the User List ... 5-29 When you Change Lenses ... 5-30 Maintaining the User List ...… 5-31 Adding Lenses from the Master List ...…... -
Page 3: Lens Optimization
Lens Optimization Overview May 12, 2004 Some lenses produce a color shift in the corners of images. Your camera has a feature that corrects this color shift to create a more uniform image. There are three methods for controlling the strength of this correction. Method one: Auto—(see page determines the correction strength for each image based on analysis of the... -
Page 4: Selecting The Method Of Lens Optimization
Configuring your Camera Selecting the Method of Lens Optimization Auto 5-28 There are three methods for optimizing your lens: 1. Choose Lens Optimization from the Capture menu. 2. Choose Auto. 3. Press the OK button. NOTE: Auto is the factory default. If you reset defaults, the camera resets to the Auto method. -
Page 5: Manual
Manual Select a Lens from the User List May 12, 2004 1. Choose Lens Optimization from the Capture menu, then choose Manual. 2. Press the right side of the Four-way switch to display the edit boxes. 3. Press the right or left side of the Four-way switch to highlight a box. Press the top or bottom of the Four-way switch to change a value. -
Page 6: When You Change Lenses
Configuring your Camera When you Change Lenses 5-30 If you have selected a lens from the user list and you later change the lens, you should select the new lens before shooting. If you capture an image and the lens does not match your selection, the camera will attempt to automatically select the new lens. -
Page 7: Maintaining The User List
Maintaining the User List Adding Lenses from the Master List May 12, 2004 The camera maintains a master list of lenses. You can create your own user list of frequently used lenses. You can do the following with the user list: •... -
Page 8: Configuring Your Camera
Configuring your Camera 3. Choose the lens that is mounted on your camera. NOTE: If your lens does not appear in the master list, add a new fixed (see page 5-35), or a new zoom lens (see page 5-36). 4. Press the OK button. The lens is moved from the master list to the user list. -
Page 9: Removing Lenses From The User List
Removing Lenses from the User List May 12, 2004 Use this option to move a lens from the user list to the master list. 1. Choose Lens Optimization from the Capture menu, choose Setup, then choose Remove Lens. 2. Select the lens to be removed. 3. -
Page 10: Saving A List
If your camera needs repair and the original list cannot be saved, your backup copy can be loaded. If you use more than one KODAK PROFESSIONAL DCS Pro SLR/n Digital Camera, you can save time by creating the user list of commonly used lenses on one camera, then loading it into the others. -
Page 11: Defining New Lenses
Defining New Lenses Defining New Fixed Lenses May 12, 2004 If you use a lens that is not in the camera’s master list, you can define a new lens and add it to the user list. You can: • Define a new fixed lens (see page •... -
Page 12: Defining New Zoom Lenses
Configuring your Camera Defining New Zoom Lenses 5-36 1. Mount the appropriate lens on the camera. 2. Choose Lens Optimization from the Capture menu, choose Setup, then choose New Zoom Lens. 3. Focus at infinity, set the lens to its shortest focal length, then capture one image. -
Page 13: Deleting Defined Lenses
Deleting Defined Lenses May 12, 2004 Use this option to delete a lens that you defined. 1. Choose Lens Optimization from the Capture menu, choose Setup, then choose Delete Lens. A list of user-defined lenses appears. 2. Select the lens to delete. 3. -
Page 14: Editing The Lens Name
Configuring your Camera Editing the Lens Name 5-38 NOTE: This feature is available for lenses that you defined. It is not available for lenses that you added from the master list. In addition to assigning strength values to lenses in the user list, you can add information to help you identify the lens. - Page 15 May 12, 2004 3. Enter text. a. To enter a character, press the right or left side of the Four-way switch to highlight the character, then press the OK button. b. To change a character, highlight > or <, then press the OK button to move to the next or previous character in the folder name.
-
Page 16: Changing The Strength
Configuring your Camera Changing the Strength Determining the Optimum Strength 5-40 You can change the strength of a lens in the user list two ways: • Reset the lens to factory defaults (see available only for lenses that were in the master list.) •... -
Page 17: Assigning Optimum Strengths To Lenses In The User List
Assigning Optimum Strengths to Lenses in the User List May 12, 2004 Once you determine the optimum strengths for a lens in Photo Desk (see page 5-40) and add the lens to the user list, you can assign the strengths to the lens in the user list. -
Page 18: Resetting To Defaults
Configuring your Camera Resetting to Defaults 5-42 NOTE: This feature is available for lenses that you added from the master list. It is not available for lenses that you have defined. You can reset strength values for a lens in the user list to the values in the master list.
