MAINTENANCE AND TROUBLESHOOTING

MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the exercise bike is used.
Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild detergent. IMPORTANT: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
CONSOLE TROUBLESHOOTING
The console requires activation. If you have not
activated the console, see assembly step 13 on
page 11.
If the console display becomes dim, replace the
batteries (see assembly step 10 on page 10); most
console problems are the result of low batteries.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
See the EXPLODED DRAWING on page 23.
Identify the Right Shield (15). Remove the five
M4 x 16mm Screws (81) from the Right Shield, and

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user's authority to operate this equipment.
then carefully pull the Right Shield away from the exer-
cise bike.

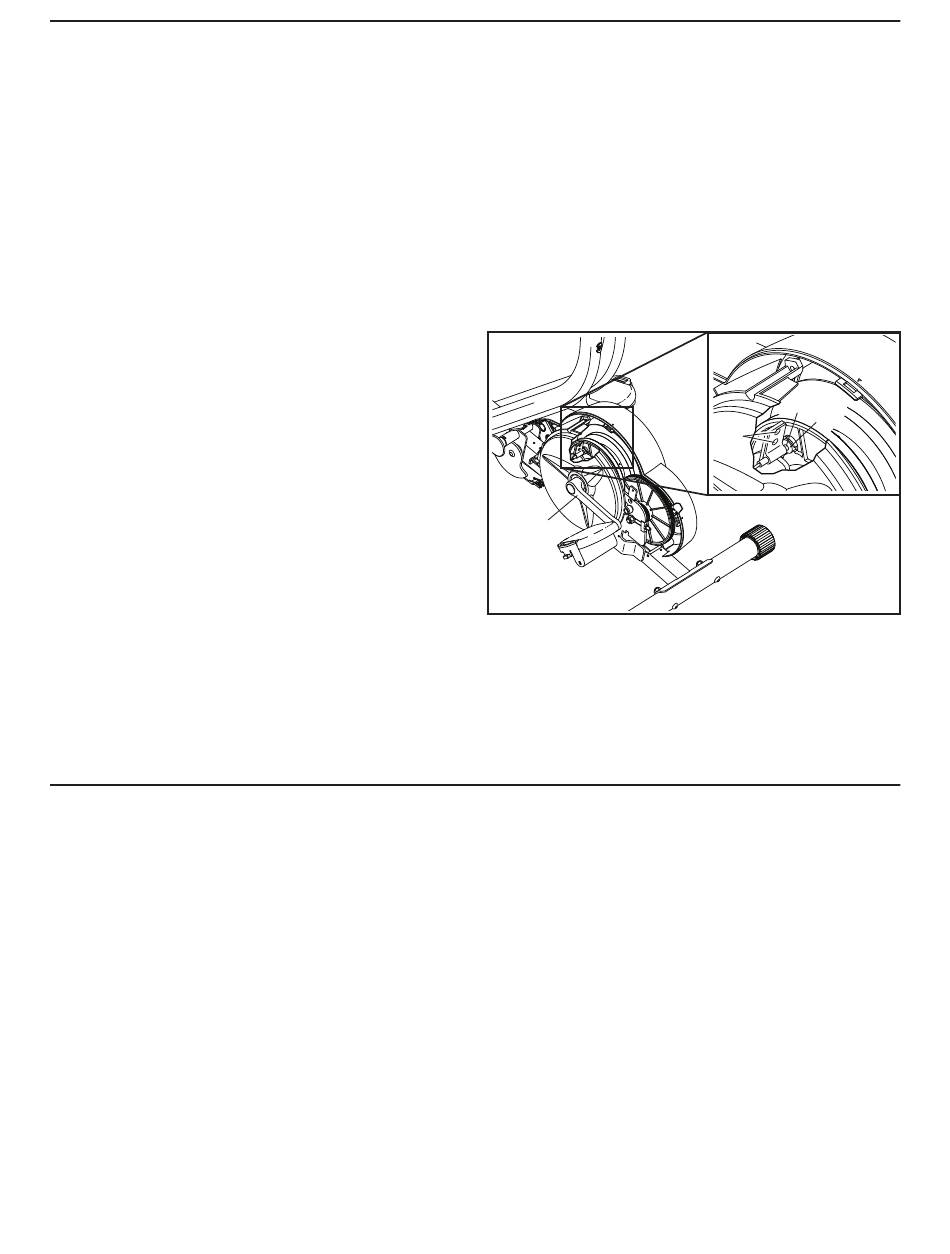

Note: For clarity, the right shield is not shown in
the drawing below. Locate the Reed Switch (29).
Rotate the Right Crank Arm (18) until a Magnet (90) is
aligned with the Reed Switch. Next, slightly loosen the
two M5 x 12mm Screws (79), slide the Reed Switch
slightly toward or away from the Magnet, and then
retighten the M5 x 12mm Screws. Repeat this step
until the console displays correct feedback.
18
When the console displays correct feedback, reattach
the right shield.
20
29
90
79
