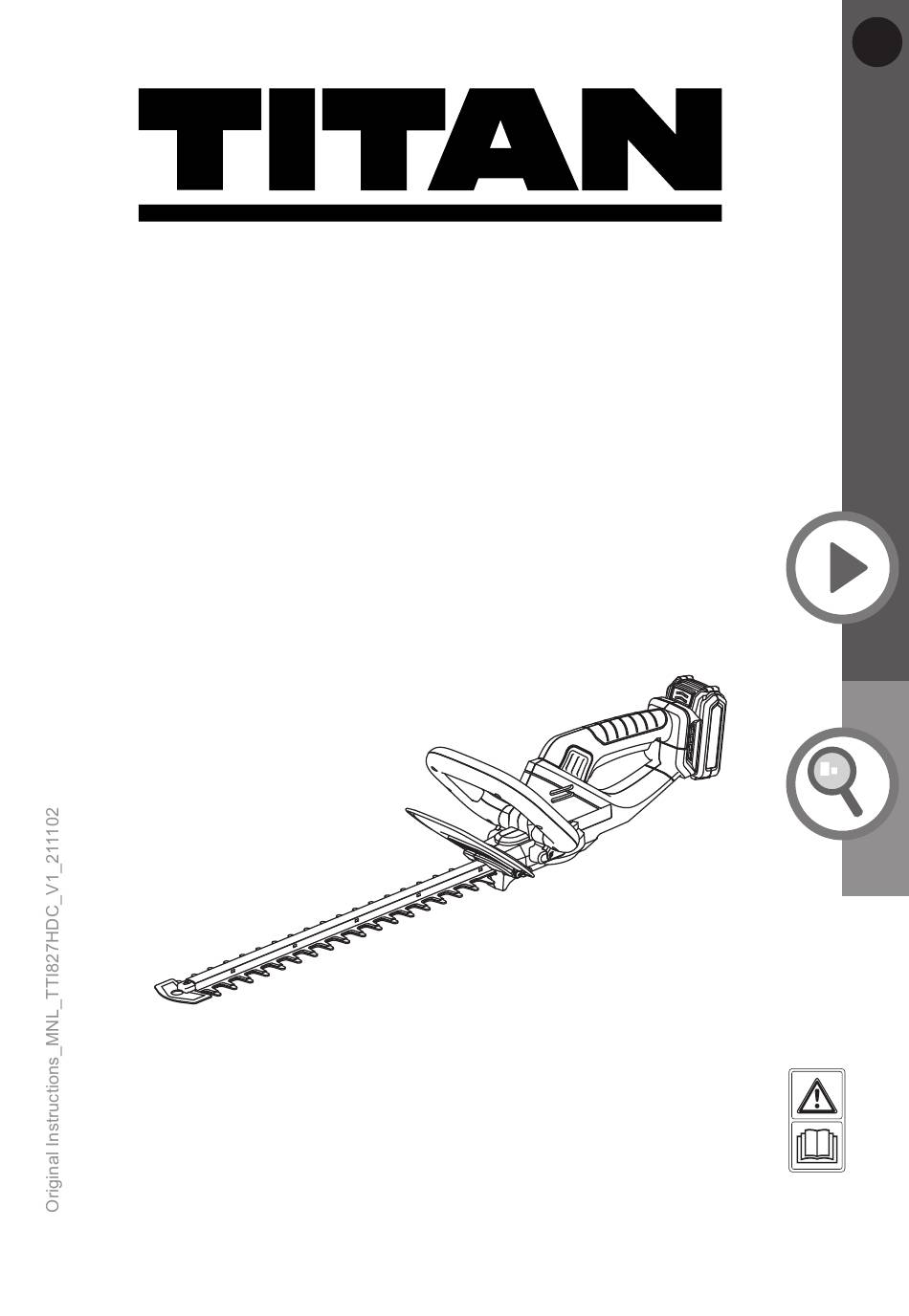

- Page 1 Cordless hedge trimmer 18V 45cm SOLO TTI827HDC WARNING: Read the instructions before using the product!
- Page 2 Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications...
-
Page 3: General Power Tool Safety Warnings
TTI827HDC by TITAN Safety information Safety warnings General power tool safety warnings WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. - Page 4 Safety information TTI827HDC by TITAN Safety warnings 3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
- Page 5 TTI827HDC by TITAN Safety information power tools with your finger on the switch or energising power tools that have the switch on invites accidents. 4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Page 6 Safety information TTI827HDC by TITAN Safety warnings the power tool accidentally. 4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 7 TTI827HDC by TITAN Safety information battery packs. Use of any other battery packs may create a risk of injury and fire. 3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another.
-
Page 8: Hedge Trimmer Safety Warnings
Safety information TTI827HDC by TITAN Safety warnings Hedge trimmer safety warnings: 1. Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. - Page 9 TTI827HDC by TITAN Safety information This decreases the risk of being struck by lightning. Additional safety warnings for battery pack 1. Battery pack needs to be charged before use. Always refer to the charger’s instruction and charge it properly. 2. Remove the battery pack from the product when not in use.
- Page 10 Safety information TTI827HDC by TITAN Safety warnings instructions. 2. Ensure that the product is in good condition and well maintained. 3. Use correct attachments for the product and ensure they are in good condition. 4. Keep tight grip on the handles/grip surface.
-
Page 11: Residual Risks
TTI827HDC by TITAN Safety information Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: 1. - Page 12 Safety information TTI827HDC by TITAN Symbols On the product, the rating label and within these instructions you will find amongothers the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt, (direct current voltage)
- Page 13 TTI827HDC by TITAN Safety information Objects thrown by the product could hit the user or other bystanders. Always ensure that other people and pets remain at a safe distance from the product when it is in operation. In general, children must not come near the area where the product is.
-
Page 14: Your Product
Your product TTI827HDC by TITAN Your product 1. Cutting device (blade) 9. Rear safeguard 2. Front safeguard 10. Housing 3. Safety switch 11. Blade cover 4. Front handle 12. Battery pack 5. Air vents a. Battery capacity indicators 6. Rear handle b. -
Page 15: You Will Need
TTI827HDC by TITAN Before you start Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. -
Page 16: Battery Pack
Before you start TTI827HDC by TITAN Setup Blade cover 1. Remove the blade cover (11) from the cutting device (blade) (1) before operation (Fig. 1). 2. Keep the blade cover (11) safely. Fig. 1 NOTE: Always attach the blade cover (11) when the product is not in use, for storage and transportation. - Page 17 TTI827HDC by TITAN Before you start Battery capacity indicators The battery pack (12) is equipped with the battery capacity indicators (12a) which are used to give an indication of the battery pack’s remaining capacity. Press the battery capacity button (12b) to check battery capacity (Fig. 4).
- Page 18 TTI827HDC by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications Declaration of conformity...
-
Page 19: Intended Use
Product functions TTI827HDC by TITAN Intended use This cordless hedge trimmer TTI827HDC is designated with a rated voltage of 18 V . It is designed only to be used with the battery pack which is listed in the chapter of “Technical specifications”. -
Page 20: General Operation
Operation TTI827HDC by TITAN General operation 1. Check the product, its battery pack and charger as well as accessories for bdamage before each use. Do not use the product if it is damaged or shows wear. Take care of any problem you find or have the product checked by qualified specialist. - Page 21 TTI827HDC by TITAN Operation 7. After cutting the sides proceed to the top. Try to keep the cutting device angled at approximately 15° to the cutting surface (Fig. 7). 0- 15 Fig. 7 Fig. 6 8. When cutting wide hedges with the cutting area...
-
Page 22: After Use
Operation TTI827HDC by TITAN Trimming 10.Lubricate the internal surfaces of the blade if the cutting device (blade) (1) overheats during operation (Fig. 10). WARNING! This operation must only be performed when the blades have stopped running and the product is switched off! Fig. -
Page 23: The Golden Rules For Care
Care and maintenance TTI827HDC by TITAN The golden rules for care WARNING! Always switch the product off, remove the battery pack (12) and let the product cool down before performing inspection, maintenance and cleaning work! 1. Keep the product clean. Remove debris from it after each use and before storage. - Page 24 Care and maintenance TTI827HDC by TITAN Cutting device (blade) WARNING! Wear safety gloves when working on the cutting device and close to it! Use appropriate tools to remove debris, e. g. a brush or wooden stick! Never use your bare hands! 1.
-
Page 25: Troubleshooting
Troubleshooting TTI827HDC by TITAN Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these... -
Page 26: Recycling And Disposal
TTI827HDC by TITAN Recycling and disposal Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. For further information visit www.recycle-more.co.uk. - Page 27 Guarantee TTI827HDC by TITAN Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use.
- Page 28 Guarantee TTI827HDC by TITAN Guarantee Distributor: B&Q plc Chandlers Ford, Hants, SO53 3LE, United Kingdom www.diy.com Screwfix Direct Limited Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com...
-
Page 29: Technical Specifications
TTI827HDC by TITAN Technical specifications Technical specifications General > Rated voltage : 18 V > Rated no load speed n : 2400 min > Blade length : 45 cm > Max. cutting length : 42 cm > Tooth gap : max. 20 mm >... - Page 30 Technical specifications TTI827HDC by TITAN Technical specifications The sound values have been determined according to noise test code given in EN 62841-4-2, using the basic standards EN ISO 11201 and EN ISO 3744. The sound intensity level for the operator may exceed 80 dB(A) and ear protection measures are necessary.
-
Page 31: Declaration Of Conformity
Declaration of conformity TTI827HDC by TITAN Declaration of conformity...
