Genie SDI07HY User Manual

Hybrid portable test monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL: SDI07HY
Hybrid Portable Test Monitor
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Genie SDI07HY

Summary of Contents for Genie SDI07HY

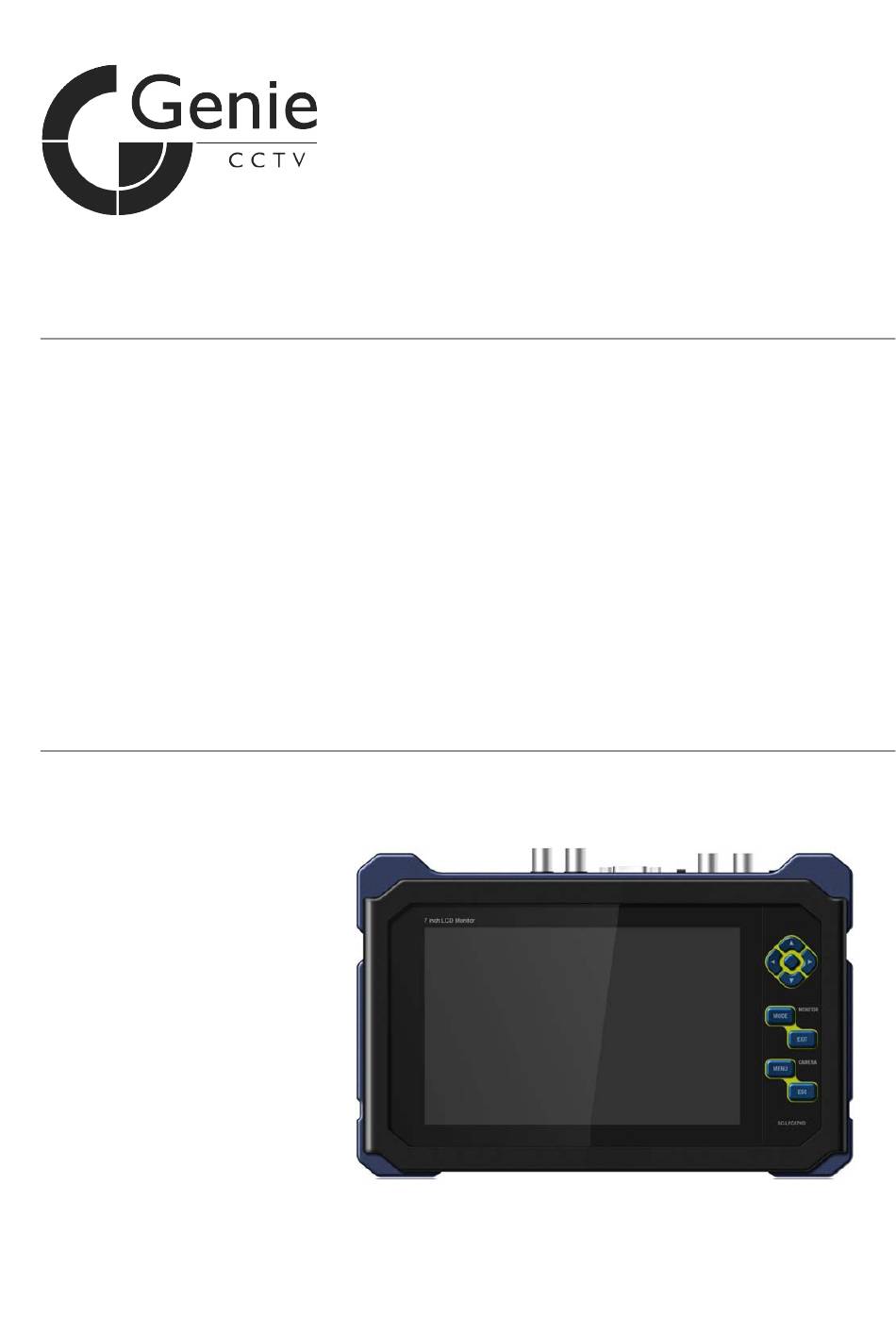

  • Page 1 MODEL: SDI07HY Hybrid Portable Test Monitor User Manual...
  • Page 3 Precautions • Always handle the unit with care to avoid damaging the LCD display panel. Damage caused by physical shocks is not covered by the product warranty. • Avoid getting fingerprints on the screen. To clean the screen, wipe it with a clean, soft and dry towel, being careful not to damage the LCD display panel. • To reduce the risk of fire or electric shock, do not expose the LCD to rain or moisture. • Do not connect power to the video input/output ports. It will cause a malfunction. • Only use the approved battery charger included in the package – a fire may be caused if a non unapproved charger is used (if the red LED flickers during recharging, request after sales service). • The built-in Li-Polymer battery (11.1V / 2200mA) has a six month warranty - effective from the purchase date. Do not use any another type of battery on this portable monitor as it may cause a fire or explosion.
  • Page 4 1. Introduction 1-1. Overview The SD107HY is a multi-functional Analogue / HD-SDI / HDMI portable test monitor. It can be used for various purposes, including checking video signals, the cabling status (has a built-in HDSDI / Analogue video signal level meter, adjusting camera angle of view and focusing, supplying power to camera, controlling a speed dome camera and generating color pattern to the monitor. 1-2. Features • 7-Inch Wide TFT-LCD Digital LED Backlit Panel • Various inputs: HD-SDI (3G), HDMI (1080 p60), VGA (1600 x1200), CVBS • Various Outputs: HD-SDI (3G, Loop Through), CVBS (Loop Through) • HD-SDI and Analogue Video Signal Level Meter • HD-SDI Focus Meter • PTZ control via RS-485 communication for speed dome cameras •...

  • Page 5: Product Parts And Peripheral Device Connection

    3. Product Parts and Peripheral Device Connection 3-1. Part Names and Functions Marking Function Charge the Built-In Li-Polymer Battery (with Included Charger) or, Supply Power to the Camera (DC12V/500mA) via Power Harness. RS-485 RS-485 Communication for PTZ Receiver and Speed Dome Camera HDMI INPUT HDMI Signal Input (Max. 1920 x 1080p60Hz) HD-SDI INPUT HD-SDI Signal Input (Max. Resolution : ~3G ) Power Output (When Using Power Over Coax Feature) OUTPUT HD-SDI Signal Output (Loop Through) VGA INPUT UXGA Input (Max. Resolution: 1600 x1200) TERM With Loop Through Output: HI-Z Position INPUT CVBS Video Signal Input Coaxial Communication: PTZ Receiver or Speed Dome Camera Power Output (When Using Power VIDEO...
  • Page 6 3-1-2. Buttons for Each of the Functions HDMI VP : Link Check 16:9 16 : 9 1920 X 1080p60 1920X1080p60 S.LVL: 90% Good FOCUS: 100 / 100 Level Meter Indicator • S.LVL: Indicates the video signal level of HD-SDI as a percentage. • FOCUS: Indicates the focusing status for HD-SDI video as a percentage. • A. LEVEL: Indicates the brightness level of the video (Amplitude/Sync level) as a percentage • F. LEVEL: Indicates the colour level of the video (Frequency/Burst level) as a percentage. Menu Operation Buttons Button Camera Menu RS-485 & Coax Angle Guide Video Input Mode...
  • Page 7 Video Status • Input Mode: HD-SDI, HDMI, VGA, CVBS • Display Mode: 4:3, Full (16:10), 16:9, Zoom1, Zoom2 • Input Resolution: 1920 x 1080p60 , NTSC , PAL Battery Status • There are seven steps indicating battery status. 090% 070% 050% POC (Power Over Coax) device connection indicator. 3-1-2-1. Level Meter Indicator HD-SDI Level Meter • S. Level: Indicates HD-SDI signals as a percentage.The closer to 100%, the better the quality of the video; and the lowest Video level is 27%. Hybrid Portable Test Monitor...
  • Page 8 CVBS Level Meter • A. Level: Indicates the brightness of the video (Amplitude/Sync level) as a percentage. The closer to 100%, the better the quality of the video. When the A.Level % is under 100%, it indicates the video signals are decreased and the brightness is reduced. • F. Level: Indicates the colour level of the video (Frequency/Burst level) as a percentage. The closer to 100%, the better the quality of the video colour and the resolution. • The video level meter indicates the sync and burst level of CVBS video signals in A.Level and F.Level respectively. Focus Meter for HD-SDI Camera and Focus Meter • Focus Meter: Indicates the HD-SDI or Analogue Camera Focus as a percentage. • Shows the focus level (Min. 20% to Max. 255%) and outputs high frequency sounds to the speaker (Optional), depending on the level. Hybrid Portable Test Monitor...

  • Page 9: Connection Diagram

    3-2. Connection Diagram ※ Only use the included power harness cable when supplying power to a camera. 3-2-1. HD-SDI Input • Connect to HD-SDI camera / output the power to camera using power over coax feature. (Input data bitrate: ~3G) • Outputs power (DC24V) to HD-SDI VP (Video + Power) camera or HD-SDI VP device 3-2-2. HD-SDI Loop through Output • Output the HD-SDI signal input from the HD-SDI camera (Output data bitrate: ~3G) 3-2-3. Analogue Video Input • Connect to Analogue Camera • Output the power (DC12V/500mA) to camera using power over coax feature. • Using Coax communication feature (Coaxitron), it is possible to control the camera OSD menu or a PTZ Speed Dome camera via coaxial cable. 3-2-4. Analogue Video Loop Through Output & Pattern Signal Output •...

  • Page 10: Picture Set

    3-2-4. PTZ & OSD Control Through RS-485 • Connect to PTZ Receiver and/or Speed Dome Camera as a controller. Also, connect to controller as a PTZ receiver to check if the controller outputs data accurately. ※ Power over coax feature (Video+Power) for HD-SDI & Analogue VP camera and VP transmission devices. • Using the Power Over Coax feature of the Hybrid Test monitor, it’s possible to supply power to VP (Video+power) analogue and HD-SDI cameras via coaxial cable. • POC (Power Over Coax) feature for HD-SDI VP camera (Optional): When it’s necessary to use the Power POC (Power Over Coax) feature, for installation and maintenance of a HD-SDI VP camera or other HD-SDI VP Transmission product, press and hold the ‘Enter’ key for 3 seconds or more, and the VP feature is activated; after detecting if the device automatically supports the POC feature. • Power Over Coax feature for Analogue VP camera (Optional): When it’s necessary to use the Power POC (Power Over Coax) feature, for installation and maintenance of an analogue VP camera or other VP Transmission product, press and hold the ‘Enter’ key for 3 seconds or more, and the VP feature is activated; after detecting if the device automatically supports the POC feature. 4. Menu Setting 4-1. MENU Mode 4-1-1. SELECT MENU • Press MENU Button and main menu is displayed, as shown below. • Press the directional buttons to move Up , Down , Right or Left . The menu mode is automatically switched off if you don’t press any buttons for a few minutes.

  • Page 11: Angle Mode

    • Contrast: To adjust the contrast range (0~100 steps) • Brightness: To adjust the brightness (0 ~ 100 steps) • Hue: To adjust the colour (0 ~ 100 steps) • Saturation: To adjust the chroma (0 ~ 100 steps) • Picture Mode: Standard > Movie > Vivid > User The value of each mode changes automatically • Scale: To adjust the screen ratio (Full > 4:3 > Zoom1 > Zoom2 > 16:9) • Reverse: To reverse the upper and lower sides of the LCD screen. 4-1-1-2. ANGLE MODE Indication lines: To adjust the viewing angles based on a specific area.     • Selecting ANGLE MODE displays a green box and the camera angle zone indication lines. • Press the SET MENU button to select the size of the green box. Press the SET MENU button again     and select the side lines of the box you want to adjust, and press the / / / buttons to set the position of each line. • To exit ANGLE MODE, press the EXIT KEY. 4-1-1-3. RS485 & COAX MODE (PTZ / OSD Control) •...
  • Page 12 HONEYWELL (OSD) Honeywell HRX-2000, ScanDome-Ⅱ LG MultiX (OSD) LG MultiX LPTEP551PS/ EI551PS/OS551HQ/OI551HQ/OI511HQ LG LPT-A100L LG LPT-A100 LPT-A100L PANASONIC (OSD) PanasonicC CS600, CS650, CS564, CS85X,… PANASONIC PanasonicN CS564CS854/A,… PELCO (OSD) Pelco-D Genie ASD, Genie NSD PELCO (OSD) Pelco-P Genie ASD, Genie NSD SAMSUNG Samsung SCC-641/3/07,…, SCC-64x Series ELECTRONICS (OSD) SAMSUNG Techwin SPD-xxxx Series TECHWIN (OSD) SUNGJIN Sungjin RECEIVER/MPU SYSMANIA Sysmania ORX-1000...
  • Page 13 4-1-1-4-1. RS-485 (TX) • Displays the current setting mode at the top of the screen. • Press SET KEY in MULTI WAY KEY selection to select PAN/TILT or ZOOM/FOCUS mode. - RED: P.T.Z MODE - BLUE: OSD MODE • Press the Mode KEY to select CAMERA OSD control mode. • Press the MENU KEY to control CAMERA OSD and press the ESC KEY to exit OSD MENU. • In case of BOX/DOME Camera, hold the ENTER KEY to select the OSD Menu. • Press EXIT KEY to go to the previous mode • (in CAMERA OSD mode, switch to PAN/TILT mode first, in order to exit).     • Press / / / buttons following the OSD guidance on the screen. ※ Caution • The Hybrid Test monitor has two different PELCO-D Protocols, which are PELCO-D PROTOCOL, PELCO (CNB). • For PELCO-D PROTOCOL, it is possible to enter the camera OSD menu by using MENU key. (SET PRESET COMMAND) • For PELCO (CNB) PROTOCOL, it is possible to enter the camera OSD menu by using MENU key (Go to PRESET) or ESC key (Run PRESET) • Depending on the camera manufacturer, the command to enter the camera OSD Menu is different. 4-1-1-4-2. RX • Displays the current setting mode at the top of the screen. • Displays the connection status of the RS-485 line indicated by a HEX value. • The received data via the RS-485 port is displayed as a maximum in 8 lines in bytes (16 byte). •...
  • Page 14 4-1-1-4-3.COAX [UP THE COAX] Control • Displays the current setting mode at the top of the screen. • Press the SET KEY in MULTI WAY KEY selection to select PAN/TILT mode or ZOOM/FOCUS mode. - RED: P.T.Z MODE - BLUE: OSD MODE • Press the Mode KEY to select the CAMERA OSD control mode. • Press the MENU KEY to control the CAMERA OSD, and the ESC KEY to exit OSD MENU. For BOX/DOME Cameras, Hold the ENTER KEY to select OSD Menu • Press the EXIT KEY to go to the previous mode. In CAMERA OSD mode, switch to PAN/TILT mode first in order to exit.     • Press / / / buttons following the OSD guidance on the screen. • List of controllable models Company Protocol Product Model Samsung Techwin PELCO-C All models to support COAX communication (WINNER 5) Pelco PELCO-C All models to support COAX communication Dongyang Unitech PELCO-C...

  • Page 15: Pattern Set

    4-1-1-5. PATTERN SET • Basically outputs the input signals through the Video Out BNC. But if you select “ON” on the CVBS Out in the pattern set menu, the selected pattern is output from the Video Out BNC. • It is possible to select one of ten pattern types.   4-1-1-6. LEVEL METER & FOCUS METER • CVBS Level Meter can be ON/OFF. • HD-SDI Level Meter can be ON/OFF. • HD-SDI Focus Meter can be ON/OFF. Hybrid Portable Test Monitor...

  • Page 16: System Set

    4-1-1-7. SYSTEM SET • To set the System • Language: KOR / ENG / JAP • OSD Dwell Time: To set the time to turn the monitor menu OFF • BACK LIGHT: To adjust the brightness of the LED Monitor. • Setting Initialisation: To initialise all settings. • Version: To display the product Firmware version and the date. Hybrid Portable Test Monitor...

  • Page 17: Specification

    5. Specification SD107HY Hybrid Test Monitor DISPLAY RESOLUTION 1280 X (RGB) X 800 SIZE 6.95 inch (Diagonal) PIXEL PITCH 0.117mm (H) X 0.177mm (V) BRIGHTNESS (cd) Min.:340, Nor.:400 CONTRAST RATIO Min.:600, Nor.:800 Viewing Horizontal 89° Angle Vertical 89° RESPONSE (ms) VIDEO INPUT HDMI ~1080p 60 HD-SDI ~3G PoC Output (DC24V) CVBS NTSC/PAL 1.0Vp-p PoC Output (DC24V) XVGA Max. 1600x1200, 60Hz OUTPUT CVBS PATTERN ON Colour Bar PATTERN Loop Through Output VIDEO OUT NTSC/PAL 1.0Vp-p (75 Ω) HDSDI VIDEO OUT ~3G, LOOP THROUGH...
  • Page 20 GENIE CCTV LTD. CCTV House, City Park, Watchmead, Welwyn Garden City, Hertfordshire, AL7 ILT Tel: +44 (0) 1707 330541 Fax: +44 (0) 1707 330543 www.geniecctv.com Edition. GN-March 2013...
