See the Important Safety and Product Information guide in the product box for product warnings and other important information.
Always consult your physician before you begin or modify any exercise program.
1 | LIGHT | Select to turn the device on. Select to turn the backlight on and off. Hold to view the controls menu. |
2 | START STOP | Select to start and stop the activity timer. Select to choose an option or to acknowledge a message. |
3 | BACK | Select to return to the previous screen. Select to record a lap during an activity. |
4 | DOWN | Select to scroll through the widgets, data screens, options, and settings. Hold to open the music controls (Controlling Music Playback on a Connected Smartphone). |
5 | UP | Select to scroll through the widgets, data screens, options, and settings. Hold to view the menu. |
The GPS status ring and icons temporarily overlay each data screen. For outdoor activities, the status ring turns green when GPS is ready. A flashing icon means the device is searching for a signal. A solid icon means the signal was found or the sensor is connected.
GPS | GPS status |
Battery status | |
Smartphone connection status | |
Heart rate status | |
Foot pod status | |
Speed and cadence sensor status |
To use the connected features of the Forerunner device, it must be paired directly through the Garmin Connect™ app, instead of from the Bluetooth® settings on your smartphone.
The controls menu contains options, such as turning on do not disturb mode, locking the keys, and turning the device off.
The first fitness activity you record on your device can be a run, ride, or any outdoor activity. You may need to charge the device before starting the activity (Charging the Device).
When you start an activity, GPS turns on automatically (if required). If you have an optional wireless sensor, you can pair it to the Forerunner device (Pairing Your ANT+ Sensors).
You can create custom workouts that include goals for each workout step and for varied distances, times, and calories. You can create workouts using Garmin Connect or select a training plan that has built-in workouts from Garmin Connect, and transfer them to your device.
You can schedule workouts using Garmin Connect. You can plan workouts in advance and store them on your device.
Your device can guide you through multiple steps in a workout.
NOTE: Before you can download and use a training plan or workout, you must have a Garmin Connect account (Pairing Your Smartphone with Your Device).
Before you can create a workout on the Garmin Connect app, you must have a Garmin Connect account (Garmin Connect).
You can send a custom workout you created using the Garmin Connect app to your device (Creating a Custom Workout on Garmin Connect).
Before you can start a workout, you must download the workout from your Garmin Connect account.
After you begin a workout, the device displays each step of the workout, step notes (optional), the target (optional), and the current workout data.
The training calendar on your device is an extension of the training calendar or schedule you set up in Garmin Connect. After you have added a few workouts to the Garmin Connect calendar, you can send them to your device. All scheduled workouts sent to the device appear in the training calendar list by date. When you select a day in the training calendar, you can view or do the workout. The scheduled workout stays on your device whether you complete it or skip it. When you send scheduled workouts from Garmin Connect, they overwrite the existing training calendar.
You can view workouts scheduled in your training calendar and start a workout.
Your Garmin Connect account has an adaptive training plan and Garmin® coach to fit your training goals. For example, you can answer a few questions and find a plan to help you complete a 5 km race. The plan adjusts to your current level of fitness, coaching and schedule preferences, and race date. When you start a plan, the Garmin Coach widget is added to the widget loop on your Forerunner device.
Before you can download and use a training plan from Garmin Connect, you must have a Garmin Connect account (Garmin Connect), and you must pair the Forerunner device with a compatible smartphone.
After you send a Garmin Coach training plan to your device, the Garmin Coach widget appears in your widget loop.
You can create interval workouts based on distance or time. The device saves your custom interval workout until you create another interval workout. You can use open intervals for track workouts and when you are running a known distance.
Interval workouts are available for running and biking activities.
Starting an Interval Workout
After you complete all of the intervals, a message appears.
NOTE: You must set up the run/walk intervals before starting a run. After you start the run timer, you cannot change the settings.
Each time you complete an interval, a message appears. The device also beeps or vibrates if audible tones are turned on (Setting the Device Sounds). After you turn on the run/walk intervals, it is used each time you go for a run until you turn it off or enable a different run mode.
You can turn off GPS when you are training indoors or to save battery life. When running or walking with GPS turned off, speed and distance are calculated using the accelerometer in the device. The accelerometer is self-calibrating. The accuracy of the speed and distance data improves after a few outdoor runs using GPS.
When cycling with GPS turned off, speed and distance data are not available unless you have an optional sensor that sends speed and distance data to the device, such as a speed or cadence sensor.
To record more accurate distances for your treadmill runs, you can calibrate the treadmill distance after you run at least 1.5 km (1 mi.) on a treadmill. If you use different treadmills, you can manually calibrate the treadmill distance on each treadmill or after each run.
When you complete an activity, the device displays any new personal records you achieved during that activity. Personal records include your fastest time over several typical race distances and longest run or ride.
You can set each personal record back to the one previously recorded.
The activity tracking feature records your daily step count, distance traveled, intensity minutes, calories burned, and sleep statistics for each recorded day. Your calories burned includes your base metabolism plus activity calories.
The number of steps taken during the day appears on the steps widget. The step count is updated periodically.
For more information about activity tracking and fitness metric accuracy, go to garmin.com/ataccuracy.
Your device creates a daily step goal automatically, based on your previous activity levels. As you move during the day, the device shows your progress toward your daily goal 1.
If you choose not to use the auto goal feature, you can set a personalized step goal on your Garmin Connect account.
Sitting for prolonged periods of time can trigger undesirable metabolic state changes. The move alert reminds you to keep moving. After one hour of inactivity, Move! and the red bar appear. Additional segments appear after every 15 minutes of inactivity. The device also beeps or vibrates if audible tones are turned on (Setting the Device Sounds).
Go for a short walk (at least a couple of minutes) to reset the move alert.
The Move IQ feature automatically detects activity patterns, such as biking or running, for at least 10 minutes. You can view the event type and duration on your Garmin Connect timeline, but they do not appear in your activities list, snapshots, or newsfeed. For more detail and accuracy, you can record a timed activity on your device.
To improve your health, organizations such as the World Health Organization recommend at least 150 minutes per week of moderate intensity activity, such as brisk walking, or 75 minutes per week of vigorous intensity activity, such as running.
The device monitors your activity intensity and tracks your time spent participating in moderate to vigorous intensity activities (heart rate data is required to quantify vigorous intensity). You can work toward achieving your weekly intensity minutes goal by participating in at least 10 consecutive minutes of moderate to vigorous intensity activities. The device adds the amount of moderate activity minutes with the amount of vigorous activity minutes. Your total vigorous intensity minutes are doubled when added.
Your Forerunner device calculates intensity minutes by comparing your heart rate data to your average resting heart rate. If heart rate is turned off, the device calculates moderate intensity minutes by analyzing your steps per minute.
While you are sleeping, the device automatically detects your sleep and monitors your movement during your normal sleep hours. You can set your normal sleep hours in the user settings on your Garmin Connect account. Sleep statistics include total hours of sleep, sleep levels, and sleep movement. You can view your sleep statistics on your Garmin Connect account.
NOTE: Naps are not added to your sleep statistics. You can use do not disturb mode to turn off notifications and alerts, with the exception of alarms (Using Do Not Disturb Mode).
You can use do not disturb mode to turn off the backlight, tone alerts, and vibration alerts. For example, you can use this mode while sleeping or watching a movie.
NOTE: You can set your normal sleep hours in the user settings on your Garmin Connect account. You can enable the Sleep Time option in the system settings to automatically enter do not disturb mode during your normal sleep hours (System Settings).
The Forerunner device has several Bluetooth connected features for your compatible smartphone using the Garmin Connect app.
Activity uploads: Automatically sends your activity to the Garmin Connect app as soon as you finish recording the activity.
Audio prompts: Allows the Garmin Connect app to play status announcements, such as mile splits and other data, on your smartphone during a run or other activity.
Find my phone: Locates your lost smartphone that is paired with your Forerunner device and currently within range.
Find my watch: Locates your lost Forerunner device that is paired with your smartphone and currently within range.
Music controls: Allows you to control the music player on your smartphone.
Phone notifications: Displays phone notifications and messages on your Forerunner device.
Safety and tracking features: Allows you to send messages and alerts to friends and family, as well as request assistance from emergency contacts set up in the Garmin Connect app. For more information, go to Safety and Tracking Features.
Social media interactions: Allows you to post an update to your favorite social media website when you upload an activity to the Garmin Connect app.
Software updates: Allows you to update your device software.
Weather updates: Sends real-time weather conditions and notifications to your device.
Workout downloads: Allows you to browse for workouts in the Garmin Connect app and wirelessly send them to your device.
Your device comes preloaded with widgets that provide at-aglance information. Some widgets require a Bluetooth connection to a compatible smartphone.
Some widgets are not visible by default. You can add them to the widget loop manually (Customizing the Widget Loop).
Body Battery™: Displays your current Body Battery level and a graph of your Body Battery levels for the last several hours.
Calendar: Displays upcoming meetings from your smartphone calendar.
Calories: Displays your calorie information for the current day.
Garmin coach: Displays scheduled workouts when you select a Garmin coach training plan in your Garmin Connect account.
Health stats: Displays a dynamic summary of your current health statistics. The measurements includes heart rate, Body Battery level, stress, and more.
Heart rate: Displays your current heart rate in beats per minute (bpm) and a graph of your heart rate.
History: Displays your activity history and a graph of your recorded activities.
Intensity minutes: Tracks your time spent participating in moderate to vigorous activities, your weekly intensity minutes goal, and progress toward your goal.
Last activity: Displays a brief summary of your last recorded activity, such as your last run, last ride, or last swim.
Music controls: Provides music player controls for your smartphone.
My day: Displays a dynamic summary of your activity today. The metrics include timed activities, intensity minutes, steps, calories burned, and more.
Notifications: Alerts you to incoming calls, texts, social network updates, and more, based on your smartphone notification settings.
Steps: Tracks your daily step count, step goal, and data for previous days.
Stress: Displays your current stress level and a graph of your stress level. You can do a breathing activity to help you relax.
Weather: Displays the current temperature and weather forecast.
Your device comes preloaded with widgets that provide at-aglance information. Some widgets require a Bluetooth connection to a compatible smartphone.
The My Day widget is a daily snapshot of your activity. This is a dynamic summary that updates throughout the day. The metrics include your last recorded sport, intensity minutes for the week, steps, calories burned, and more. You can select START to view additional metrics.
The Health Stats widget provides an at-a-glance view of your health data. This is a dynamic summary that updates throughout the day. The metrics include your heart rate, stress level, and Body Battery level. You can select START to view additional metrics.
Weather requires a Bluetooth connection to a compatible smartphone.
You can use this feature to help locate a lost mobile device that is paired using Bluetooth wireless technology and currently within range.
Before you can enable notifications, you must pair the Forerunner device with a compatible mobile device (Pairing Your Smartphone with Your Device).
You can use your compatible smartphone to manage notifications that appear on your Forerunner device.
Select an option:
You can set the Forerunner device to alert you when your paired smartphone connects and disconnects using Bluetooth technology.
NOTE: Smartphone connection alerts are turned off by default.
You can sync activities from other Garmin devices to your Forerunner device using your Garmin Connect account. This allows your device to more accurately reflect your training status and fitness. For example, you can record a ride with an Edge® device, and view your activity details on your Forerunner device.
When you sync your device with your smartphone, recent activities from your other Garmin devices appear on your Forerunner device.
Before you can set up audio prompts, you must have a smartphone with the Garmin Connect app paired to your Forerunner device.
You can set the Garmin Connect app to play motivational status announcements and training alerts on your smartphone during a run or other activity. During an audio prompt, the Garmin Connect app mutes the primary audio of the smartphone to play the announcement. You can customize the volume levels on the Garmin Connect app.
Incident detection and assistance are supplemental features and should not be relied on as a primary method to obtain emergency assistance. The Garmin Connect app does not contact emergency services on your behalf.
The Forerunner device has safety and tracking features that must be set up with the Garmin Connect app.
NOTICE
To use these features, you must be connected to the Garmin Connect app using Bluetooth technology. You can enter emergency contacts in your Garmin Connect account.
Assistance: Allows you to send a text message with your name and GPS location to your emergency contacts.
Incident detection: Allows the Garmin Connect app to send a message to your emergency contacts when the Forerunner device detects an incident.
LiveTrack: Allows friends and family to follow your races and training activities in real time. You can invite followers using email or social media, allowing them to view your live data on a Garmin Connect tracking page.
Live Event Sharing: Allows you to send messages to friends and family during an event, providing real-time updates.
NOTE: This feature is available only if your device is connected to an Android smartphone.
Emergency contact phone numbers are used for the incident detection and assistance features.
When an incident is detected by your Forerunner device with GPS enabled, the Garmin Connect app can send an automated text message and email with your name and GPS location to your emergency contacts. A message appears indicating your contacts will be informed after 30 seconds have elapsed. You can select Cancel before the countdown is complete to cancel the message.
Before you can request assistance, you must set up emergency contacts (Adding Emergency Contacts).

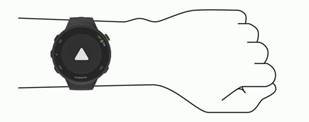

The Forerunner device has a wrist-based heart rate monitor and is also compatible with ANT+® chest heart rate monitors. You can view wrist-based heart rate data on the heart rate widget. When both wrist-based heart rate and ANT+ heart rate data are available, your device uses the ANT+ heart rate data.
If the heart rate data is erratic or does not appear, you can try these tips.
The widget displays your current heart rate in beats per minute (bpm) and a graph of your heart rate for the last 4 hours.
You can broadcast your heart rate data from your Forerunner device and view it on paired Garmin devices.
NOTE: Broadcasting heart rate data decreases battery life.
You can set up your Forerunner device to broadcast your heart rate data automatically when you begin an activity. For example, you can broadcast your heart rate data to an Edge device while cycling, or to a VIRB® action camera during an activity.
NOTE: Broadcasting heart rate data decreases battery life.
You can set the device to alert you when your heart rate exceeds a certain number of beats per minute (bpm) after a period of inactivity.
Each time you exceed the threshold value, a message appears and the device vibrates.
The default value for the Wrist Heart Rate setting is Auto. The device automatically uses the wrist-based heart rate monitor unless you pair an ANT+ heart rate monitor to the device.
Many athletes use heart rate zones to measure and increase their cardiovascular strength and improve their level of fitness. A heart rate zone is a set range of heartbeats per minute. The five commonly accepted heart rate zones are numbered from 1 to 5 according to increasing intensity. Generally, heart rate zones are calculated based on percentages of your maximum heart rate.
Knowing your heart rate zones can help you measure and improve your fitness by understanding and applying these principles.
If you know your maximum heart rate, you can use the table (Heart Rate Zone Calculations) to determine the best heart rate zone for your fitness objectives.
If you do not know your maximum heart rate, use one of the calculators available on the Internet. Some gyms and health centers can provide a test that measures maximum heart rate. The default maximum heart rate is 220 minus your age.
The default settings allow the device to detect your maximum heart rate and set your heart rate zones as a percentage of your maximum heart rate.
The device uses your user profile information from the initial setup to estimate your maximum heart rate and determine your default heart rate zones. The default maximum heart rate is 220 minus your age. For the most accurate calorie data during your activity, you should set your maximum heart rate (if known).
You can customize your heart rate zones based on your training goals. The device uses your user profile information from the initial setup to estimate your maximum heart rate and determine your default heart rate zones. The default maximum heart rate is 220 minus your age. For the most accurate calorie data during your activity, you should set your maximum heart rate (if known).
Zone | % of Maximum Heart Rate | Perceived Exertion | Benefits |
1 | 50–60% | Relaxed, easy pace, rhythmic breathing | Beginning-level aerobic training, reduces stress |
2 | 60–70% | Comfortable pace, slightly deeper breathing, conversation possible | Basic cardiovascular training, good recovery pace |
3 | 70–80% | Moderate pace, more difficult to hold conversation | Improved aerobic capacity, optimal cardiovascular training |
4 | 80–90% | Fast pace and a bit uncomfortable, breathing forceful | Improved anaerobic capacity and threshold, improved speed |
5 | 90–100% | Sprinting pace, unsustainable for long period of time, labored breathing | Anaerobic and muscular endurance, increased power |
This feature requires wrist-based heart rate.
For the most accurate estimate, complete the user profile setup (Setting Up Your User Profile), and set your maximum heart rate (Setting Your Maximum Heart Rate). The estimate may seem inaccurate at first. The device requires a few runs to learn about your running performance.
VO2 max. is the maximum volume of oxygen (in milliliters) you can consume per minute per kilogram of body weight at your maximum performance. In simple terms, VO2 max. is an indication of athletic performance and should increase as your level of fitness improves. The Forerunner device requires wristbased heart rate or a compatible chest heart rate monitor to display your VO2 max. estimate.
On the device, your VO2 max. estimate appears as a number, description, and position on the color gauge. On your Garmin Connect account, you can view additional details about your VO2 max. estimate, including your fitness age. Your fitness age gives you an idea of how your fitness compares with a person of the same gender and different age. As you exercise, your fitness age can decrease over time.
Purple | Superior |
Blue | Excellent |
Green | Good |
Orange | Fair |
Red | Poor |
VO2 max. data is provided by FirstBeat. VO2 max. analysis is provided with permission from The Cooper Institute®. For more information, see the appendix (VO2 Max. Standard Ratings), and go to www.CooperInstitute.org.
Stress level is the result of a three-minute test performed while standing still, where the Forerunner device analyzes heart rate variability to determine your overall stress. Training, sleep, nutrition, and general life stress all impact how a runner performs. The stress level range is from 1 to 100, where 1 is a very low stress state and 100 is a very high stress state. Knowing your stress level can help you decide if your body is ready for a tough training run or yoga.
The stress level widget displays your current stress level and a graph of your stress level for the last several hours. It can also guide you through a breathing activity to help you relax.
Your device analyzes your heart rate variability, stress level, sleep quality, and activity data to determine your overall Body Battery level. Like a gas gauge on a car, it indicates your amount of available reserve energy. The Body Battery level range is from 0 to 100, where 0 to 25 is low reserve energy, 26 to 50 is medium reserve energy, 51 to 75 is high reserve energy, and 76 to 100 is very high reserve energy.
You can sync your device with your Garmin Connect account to view your most up-to-date Body Battery level, long-term trends, and additional details (Tips for Improved Body Battery Data).
The Body Battery widget displays your current Body Battery level and a graph of your Body Battery level for the last several hours.
History includes time, distance, calories, average pace or speed, lap data, and optional sensor information.
NOTE: When the device memory is full, your oldest data is overwritten.
History contains previous activities you have saved on your device.
The device has a history widget for quick access to your activity data (Customizing the Widget Loop).
You can view the accumulated distance and time data saved to your device.
NOTE: The device is not compatible with Windows® 95, 98, Me, Windows NT®, and Mac® OS 10.3 and earlier.
NOTICE
If you do not know the purpose of a file, do not delete it. Your device memory contains important system files that should not be deleted.
If your device is connected to your computer as a removable drive or volume, you must safely disconnect your device from your computer to avoid data loss. If your device is connected to your Windows computer as a portable device, it is not necessary to safely disconnect the device.
You can connect with your friends on Garmin Connect. Garmin Connect gives you the tools to track, analyze, share, and encourage each other. Record the events of your active lifestyle, including runs, walks, rides, hikes, and more. To sign up for a free account, go to www.garminconnect.com.
Store your activities: After you complete and save an activity with your device, you can upload that activity to your Garmin Connect account and keep it as long as you want.
Analyze your data: You can view more detailed information about your activity, including time, distance, elevation, heart rate, calories burned, an overhead map view, pace and speed charts, and customizable reports.
Plan your training: You can choose a fitness goal and load one of the day-by-day training plans.
Track your progress: You can track your daily steps, join a friendly competition with your connections, and meet your goals.
Share your activities: You can connect with friends to follow each other's activities or post links to your activities on your favorite social networking sites.
Manage your settings: You can customize your device and user settings on your Garmin Connect account.
Your device periodically syncs data with the Garmin Connect app automatically. You can also manually sync your data at any time.
The Garmin Express™ application connects your device to your Garmin Connect account using a computer. You can use the Garmin Express application to upload your activity data to your Garmin Connect account and to send data, such as workouts or training plans, from the Garmin Connect website to your device.
Your device can be used with wireless ANT+ sensors. For more information about compatibility and purchasing optional sensors, go to http://buy.garmin.com.
The first time you connect a wireless sensor to your device using ANT+ technology, you must pair the device and sensor. After they are paired, the device connects to the sensor automatically when you start an activity and the sensor is active and within range.
Your device is compatible with the foot pod. You can use the foot pod to record pace and distance instead of using GPS when you are training indoors or when your GPS signal is weak. The foot pod is on standby and ready to send data (like the heart rate monitor).
After 30 minutes of inactivity, the foot pod powers off to conserve the battery. When the battery is low, a message appears on your device. Approximately five hours of battery life remain.
Before you go for a run, you must pair the foot pod with your Forerunner device (Pairing Your ANT+ Sensors).
You can run indoors using a foot pod to record pace, distance, and cadence. You can also run outdoors using a foot pod to record cadence data with your GPS pace and distance.
The foot pod is self-calibrating. The accuracy of the speed and distance data improves after a few outdoor runs using GPS.
Before you can calibrate your device, you must acquire GPS signals and pair your device with the foot pod (Pairing Your ANT+ Sensors).
The foot pod is self-calibrating, but you can improve the accuracy of the speed and distance data with a few outdoor runs using GPS.
Before you can calibrate your device, you must pair your device with the foot pod sensor (Pairing Your ANT+ Sensors).
Manual calibration is recommended if you know your calibration factor. If you have calibrated a foot pod with another Garmin product, you may know your calibration factor.
Before you can customize the foot pod speed and distance, you must pair your device with the foot pod sensor (Pairing Your ANT+ Sensors).
You can set your device to calculate speed and distance using your foot pod data instead of GPS data.
You can use a compatible bike speed or cadence sensor to send data to your device.
You can update your height, weight, birth year, gender, and maximum heart rate settings (Setting Your Maximum Heart Rate). The device uses this information to calculate training data.
Activity options are a collection of settings that optimize your device based on how you are using it. For example, the settings and data screens are different when you are using the device for running than for riding your bike.
When you are using an activity and you change settings such as data fields or alerts, the changes are saved automatically as part of the activity.
You can customize your settings, data fields, and more for a particular activity.
Your device has default activities, such as Run and Bike. You can select additional activities to display on the device.
Sync your device with the Garmin Connect app to view the updated activities (Manually Syncing Data with Garmin Connect).
You can customize data fields based on your training goals or optional accessories. For example, you can customize data fields to display your lap pace and heart rate zone.
You can change the order of widgets in the widget loop, remove widgets, and add new widgets.
You can use alerts to train toward specific heart rate, time, distance, calories, and pace goals and to set run/walk time intervals.
A recurring alert notifies you each time the device records a specified value or interval. For example, you can set the device to alert you every 30 minutes.
Each time you reach the alert value, a message appears. The device also beeps or vibrates if audible tones are turned on (Setting the Device Sounds).
You can set the device to alert you when your heart rate is above or below a target zone or a custom range. For example, you can set the device to alert you when your heart rate is below 150 beats per minute (bpm).
Each time you exceed or drop below the specified range or custom value, a message appears. The device also beeps or vibrates if audible tones are turned on (Setting the Device Sounds).
You can set your device to use the Auto Lap® feature, which marks a lap automatically at every kilometer or mile. You can also mark laps manually. This feature is helpful for comparing your performance during different parts of an activity.
Each time you complete a lap, a message appears that displays the time for that lap. The device also beeps or vibrates if audible tones are turned on (Setting the Device Sounds). The Auto Lap feature stays on for the selected activity profile until you turn it off.
If necessary, you can customize the data screens to display additional lap data (Customizing the Data Fields).
You can customize BACK to function as a lap key during timed activities.
The lap key stays on for the selected activity profile until you turn off the lap key.
You can use the Auto Pause feature to pause the activity timer automatically when you stop moving. This feature is helpful if your activity includes stop lights or other places where you need to stop.
NOTE: History is not recorded while the timer is stopped or paused.
The Auto Pause feature stays on for the selected activity until you turn it off.
By default, the device uses GPS to locate satellites. For more information about GPS, go to www.garmin.com/aboutGPS.
The GPS + GLONASS or GPS + GALILEO options offer increased performance in challenging environments and faster position acquisition than using GPS only. However, using GPS and another satellite system together can reduce battery life more quickly than using GPS only.
From the watch face, hold UP, and select > Activity Tracking.
Status: Turns off the activity tracking features.
Move Alert: Displays a message and the move bar on the digital watch face and steps screen. The device also beeps or vibrates if audible tones are turned on (Setting the Device Sounds).
Goal Alerts: Allows you to turn on and off goal alerts, or turn them off only during activities. Goal alerts appear for your daily steps goal and weekly intensity minutes goal.
Move IQ: Allows your device to automatically start and save a timed walking or running activity when the Move IQ feature detects familiar movement patterns.
When you turn off activity tracking, your steps, intensity minutes, sleep tracking, and Move IQ events are not recorded.
You can customize the appearance of the watch face by selecting the layout and accent color. You can also download custom watch faces from the Connect IQ™ store.
You can customize the watch face information and appearance.
Hold UP, and select > System.
Language: Sets the language displayed on the device.
Time: Adjusts the time settings (Time Settings).
Backlight: Adjusts the backlight settings (Changing the Backlight Settings).
Sounds: Sets the device sounds, such as key tones, alerts, and vibrations (Setting the Device Sounds).
Do Not Disturb: Turns on or off do not disturb mode. You can use the Sleep Time option to turn on do not disturb mode automatically during your normal sleep hours. You can set your normal sleep hours on your Garmin Connect account (Using Do Not Disturb Mode).
Pace/Speed Preference: Sets the device to display speed or pace for running, cycling, or other activities. This preference affects several training options, history, and alerts (Displaying Pace or Speed).
Units: Sets the units of measure used on the device (Changing the Units of Measure).
Software Update: Allows you to install software updates downloaded using Garmin Express or the Garmin Connect app (Updating the Software Using the Garmin Connect App).
Reset: Allows you to reset user data and settings (Resetting All Default Settings).
Hold UP, and select > System > Time.
Time Format: Sets the device to show time in a 12-hour or a 24-hour format.
Set Time: Allows you to set the time manually or automatically based on your paired mobile device or GPS location.
Each time you turn on the device and acquire satellites or sync with your smartphone, the device automatically detects your time zone and the current time of day.
You can set the device to sound a tone or vibration when keys are selected or when an alert is triggered.
You can change the type of information that appears in the pace or speed data field.
You can customize units of measure for distance.
You can set up to ten separate alarms. You can set each alarm to sound once or to repeat regularly.
You can view device information, such as the unit ID, software version, regulatory information, and license agreement.
This device contains a lithium-ion battery. See the Important Safety and Product Information guide in the product box for product warnings and other important information.
NOTICE
To prevent corrosion, thoroughly clean and dry the contacts and the surrounding area before charging or connecting to a computer. Refer to the cleaning instructions in the appendix.
NOTICE
Avoid extreme shock and harsh treatment, because it can degrade the life of the product.
Avoid pressing the keys under water.
Do not use a sharp object to clean the device.
Avoid chemical cleaners, solvents, and insect repellents that can damage plastic components and finishes.
Thoroughly rinse the device with fresh water after exposure to chlorine, salt water, sunscreen, cosmetics, alcohol, or other harsh chemicals. Prolonged exposure to these substances can damage the case.
Do not store the device where prolonged exposure to extreme temperatures can occur, because it can cause permanent damage.
NOTICE
Even small amounts of sweat or moisture can cause corrosion of the electrical contacts when connected to a charger. Corrosion can prevent charging and data transfer.
After cleaning, allow the device to dry completely.
TIP: For more information, go to www.garmin.com/fitandcare.

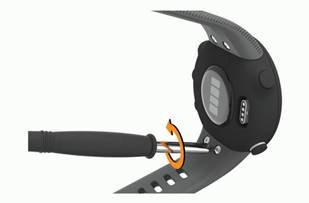

You can replace the bands with new Forerunner bands.
Battery type | Rechargeable, built-in lithium-ion battery |
Battery life | Up to 7 days for watch mode with smart notifications, activity tracking, and wrist heart rate Up to 13 hr. in GPS mode |
Operating temperature range | From -20º to 60ºC (from -4º to 140ºF) |
Charging temperature range | From 0º to 45ºC (from 32º to 113ºF) |
Wireless frequency | 2.4 GHz @ +6 dBm nominal |
Water rating | Swim, 5 ATM* |
*The device withstands pressure equivalent to a depth of 50 m. For more information, go to www.garmin.com/waterrating.
On your computer, install Garmin Express (www.garmin.com/express). On your smartphone, install the Garmin Connect app.
This provides easy access to these services for Garmin devices:
Before you can update your device software using the Garmin Connect app, you must have a Garmin Connect account, and you must pair the device with a compatible smartphone (Pairing Your Smartphone with Your Device).
Sync your device with the Garmin Connect app (Manually Syncing Data with Garmin Connect).
When new software is available, the Garmin Connect app automatically sends the update to your device. The update is applied when you are not actively using the device. When the update is complete, your device restarts.
Before you can update your device software, you must have a Garmin Connect account, and you must download the Garmin Express application.
For more information about activity tracking accuracy, go to garmin.com/ataccuracy.
The daily step count is reset every night at midnight. If dashes appear instead of your step count, allow the device to acquire satellite signals and set the time automatically.
If your step count does not seem accurate, you can try these tips.
The step count on your Garmin Connect account updates when you sync your device.
When you exercise at an intensity level that qualifies toward your intensity minutes goal, the intensity minutes flash. Exercise for at least 10 consecutive minutes at a moderate or vigorous intensity level.
The device may need a clear view of the sky to acquire satellite signals. The time and date are set automatically based on the GPS position.
TIP: For more information about GPS, go to www.garmin.com/aboutGPS.
If the device stops responding, you may need to restart it.
NOTE: Restarting the device may erase your data or settings.
NOTE: This deletes all user-entered information and activity history.
The Forerunner device is compatible with smartphones using Bluetooth wireless technology. Go to www.garmin.com/ble for compatibility information.
If your phone will not connect to the device, you can try these tips.
You can use the cardio activity and turn on GPS for outdoor use.
GPS stays on for the selected activity until you turn it off.
You can do several things to extend the life of the battery.
You can use the device settings to manually pair ANT+ sensors. The first time you connect a sensor to your device using ANT+ wireless technology, you must pair the device and sensor. After they are paired, the device connects to the sensor automatically when you start an activity and the sensor is active and within range.
Some data fields require ANT+ accessories to display data.
Average Pace: The average pace for the current activity.
Average Speed: The average speed for the current activity.
Cadence: Running. The steps per minute (right and left).
Cadence: Cycling. The number of revolutions of the crank arm. Your device must be connected to a cadence accessory for this data to appear.
Calories: The amount of total calories burned.
Distance: The distance traveled for the current track or activity.
Heart Rate: Your heart rate in beats per minute (bpm). Your device must have wrist-based heart rate or be connected to a compatible heart rate monitor.
HR Zone: The current range of your heart rate (1 to 5). The default zones are based on your user profile and maximum heart rate (220 minus your age).
Lap Distance: The distance traveled for the current lap.
Lap Pace: The average pace for the current lap.
Lap Speed: The average speed for the current lap.
Lap Time: The stopwatch time for the current lap.
Pace: The current pace.
Speed: The current rate of travel.
Steps: The number of steps during the current activity.
Time of Day: The time of day based on your current location and time settings (format, time zone, daylight saving time).
Timer: The stopwatch time for the current activity.
These tables include standardized classifications for VO2 max. estimates by age and gender.
Males | Percentile | 20–29 | 30–39 | 40–49 | 50–59 | 60–69 | 70–79 |
Superior | 95 | 55.4 | 54 | 52.5 | 48.9 | 45.7 | 42.1 |
Excellent | 80 | 51.1 | 48.3 | 46.4 | 43.4 | 39.5 | 36.7 |
Good | 60 | 45.4 | 44 | 42.4 | 39.2 | 35.5 | 32.3 |
Fair | 40 | 41.7 | 40.5 | 38.5 | 35.6 | 32.3 | 29.4 |
Poor | 0–40 | <41.7 | <40.5 | <38.5 | <35.6 | <32.3 | <29.4 |
Females | Percentile | 20–29 | 30–39 | 40–49 | 50–59 | 60–69 | 70–79 |
Superior | 95 | 49.6 | 47.4 | 45.3 | 41.1 | 37.8 | 36.7 |
Excellent | 80 | 43.9 | 42.4 | 39.7 | 36.7 | 33 | 30.9 |
Good | 60 | 39.5 | 37.8 | 36.3 | 33 | 30 | 28.1 |
Fair | 40 | 36.1 | 34.4 | 33 | 30.1 | 27.5 | 25.9 |
Poor | 0–40 | <36.1 | <34.4 | <33 | <30.1 | <27.5 | <25.9 |
Data reprinted with permission from The Cooper Institute. For more information, go to www.CooperInstitute.org.
Your speed sensor automatically detects your wheel size. If necessary, you can manually enter your wheel circumference in the speed sensor settings.
The tire size is marked on both sides of the tire. This is not a comprehensive list. You can also measure the circumference of your wheel or use one of the calculators available on the internet.
Tire Size | Wheel Circumference (mm) |
20 × 1.75 | 1515 |
20 × 1-3/8 | 1615 |
22 × 1-3/8 | 1770 |
22 × 1-1/2 | 1785 |
24 × 1 | 1753 |
24 × 3/4 Tubular | 1785 |
24 × 1-1/8 | 1795 |
24 × 1.75 | 1890 |
24 × 1-1/4 | 1905 |
24 × 2.00 | 1925 |
24 × 2.125 | 1965 |
26 × 7/8 | 1920 |
26 × 1-1.0 | 1913 |
26 × 1 | 1952 |
26 × 1.25 | 1953 |
26 × 1-1/8 | 1970 |
26 × 1.40 | 2005 |
26 × 1.50 | 2010 |
26 × 1.75 | 2023 |
26 × 1.95 | 2050 |
26 × 2.00 | 2055 |
26 × 1-3/8 | 2068 |
26 × 2.10 | 2068 |
26 × 2.125 | 2070 |
26 × 2.35 | 2083 |
26 × 1-1/2 | 2100 |
26 × 3.00 | 2170 |
27 × 1 | 2145 |
27 × 1-1/8 | 2155 |
27 × 1-1/4 | 2161 |
27 × 1-3/8 | 2169 |
29 x 2.1 | 2288 |
29 x 2.2 | 2298 |
29 x 2.3 | 2326 |
650 x 20C | 1938 |
650 x 23C | 1944 |
650 × 35A | 2090 |
650 × 38B | 2105 |
650 × 38A | 2125 |
700 × 18C | 2070 |
700 × 19C | 2080 |
700 × 20C | 2086 |
700 × 23C | 2096 |
700 × 25C | 2105 |
700C Tubular | 2130 |
700 × 28C | 2136 |
700 × 30C | 2146 |
700 × 32C | 2155 |
700 × 35C | 2168 |
700 × 38C | 2180 |
700 × 40C | 2200 |
700 × 44C | 2235 |
700 × 45C | 2242 |
700 × 47C | 2268 |
All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product.
Garmin®, the Garmin logo, ANT+®, Auto Lap®, Auto Pause®, Edge®, Forerunner®, and VIRB® are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Body Battery™, Connect IQ™, Garmin Connect™, Garmin Express™, Garmin Move IQ™, and TrueUp™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.
Android™ is a trademark of Google Inc. Apple®, iPhone®, and Mac® are trademarks of Apple Inc., registered in the U.S. and other countries. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. The Cooper Institute®, as well as any related trademarks, are the property of The Cooper Institute. Advance heartbeat analytics by Firstbeat. Windows® and Windows NT® are registered trademarks of Microsoft Corporation in the United States and other countries. Other trademarks and trade names are those of their respective owners.
This product is ANT+® certified. Visit www.thisisant.com/directory for a list of compatible products and apps.
© 2019 Garmin Ltd. or its subsidiaries
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Advertisement
Thank you! Your question has been received!
Need Assistance?
Do you have a question about the FORERUNNER 45 that isn't answered in the manual? Leave your question here.
