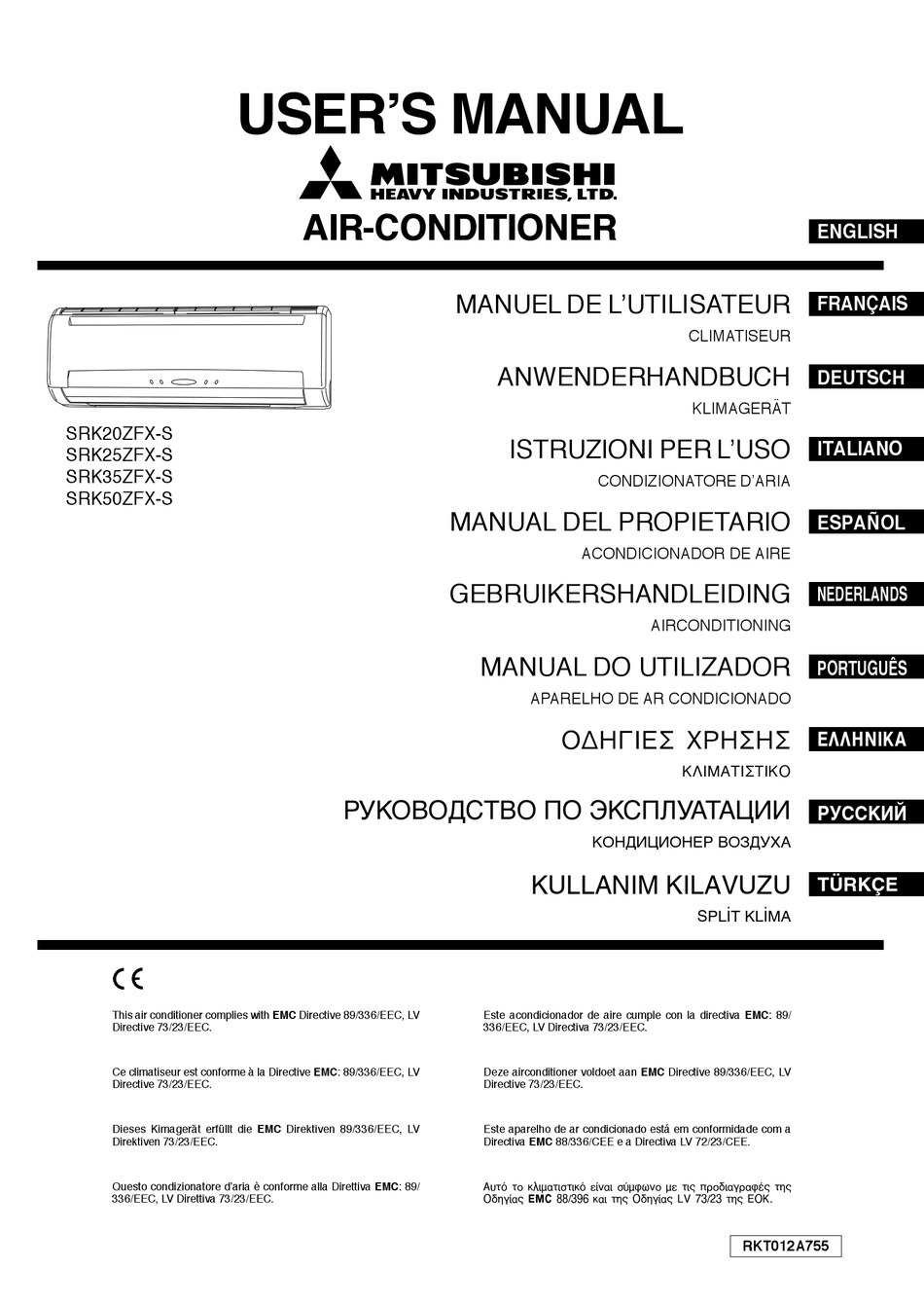

USER'S MANUAL
SRK20ZFX-S
SRK25ZFX-S
SRK35ZFX-S
SRK50ZFX-S
This air conditioner complies with EMC Directive 89/336/EEC, LV
Directive 73/23/EEC.
Ce climatiseur est conforme à la Directive EMC: 89/336/EEC, LV
Directive 73/23/EEC.
Dieses Kimagerät erfüllt die EMC Direktiven 89/336/EEC, LV
Direktiven 73/23/EEC.
Questo condizionatore d'aria è conforme alla Direttiva EMC: 89/
336/EEC, LV Direttiva 73/23/EEC.
AIR-CONDITIONER
MANUEL DE L'UTILISATEUR
MANUAL DEL PROPIETARIO
GEBRUIKERSHANDLEIDING
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
ANWENDERHANDBUCH
ISTRUZIONI PER L'USO
CONDIZIONATORE D'ARIA
ACONDICIONADOR DE AIRE
AIRCONDITIONING
MANUAL DO UTILIZADOR
APARELHO DE AR CONDICIONADO
√¢∏°π∂™ Ã∏™∏™
КОНДИЦИОНЕР ВОЗДУХА
KULLANIM KILAVUZU
Este acondicionador de aire cumple con la directiva EMC: 89/
336/EEC, LV Directiva 73/23/EEC.
Deze airconditioner voldoet aan EMC Directive 89/336/EEC, LV
Directive 73/23/EEC.
Este aparelho de ar condicionado está em conformidade com a
Directiva EMC 88/336/CEE e a Directiva LV 72/23/CEE.
∞˘Ùfi ÙÔ ÎÏÈÌ·ÙÈÛÙÈÎfi Â›Ó·È Û‡ÌʈÓÔ Ì ÙȘ ÚԉȷÁڷʤ˜ Ù˘
√‰ËÁ›·˜ EMC 88/396 Î·È Ù˘ √‰ËÁ›·˜ LV 73/23 Ù˘ ∂√∫.
ENGLISH
FRANÇAIS
CLIMATISEUR
DEUTSCH
KLIMAGERA ¨ T
ITALIANO
ESPAN ˜ OL
NEDERLANDS
PORTUGUÊS
∂§§∏¡π∫∞
∫§πª∞Δπ™Δπ∫√
РУССКИЙ
TÜRKÇE
SPL‹T KL‹MA
