Page 1
Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. LED TV Series : C7000 and above LCD TV Series : C750 Contate a SAMSUNG EM TODO O MUNDO Caso tenha dúvidas ou comentários sobre os produtos da Samsung, entre em contato...
Contents Use basic functions ..03 Description / Accessories Inserting the battery Charging the battery Setting Up Your Remote ..05 First Time User Setup Setting up the Network ..06 Extended Distance, Wi-Fi Remote Networked, Wi-Fi Remote TV control menu ..

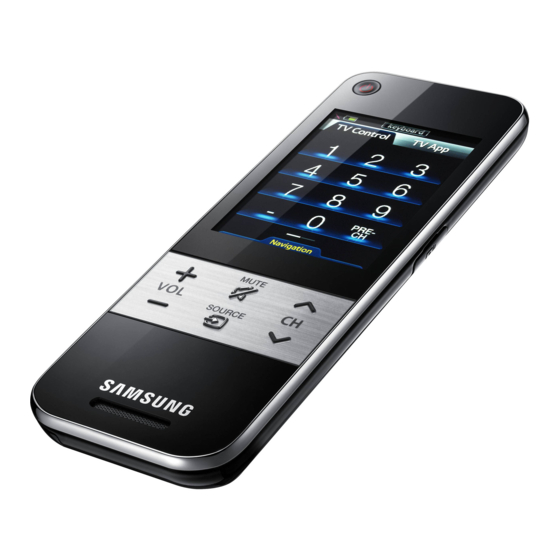

Use basic functions Description TV Power button Battery cover Touch screen Charge port MUTE button Channel button Volume SOURCE button button Speaker IR receiver for learning external devices. Power Turn the TV on and off. MUTE Mute or unmute. Volume Press to control the volume.
Page 4
Inserting the battery Slide and open the battery cover in the direction of the arrow. Insert the battery with the Samsung logo facing up. Slide and close the battery cover in the direction of the arrow. Charging the battery Charge the battery fully before using the remote control.
To use the networked, Wi-Fi mode, you need a working local area network and a wireless router. To use the Multimedia function, you need to install Samsung’s PC Share Manager on your PC. You can download PC Share Manager from http://www.
Extended Distance, Wi-Fi Remote (Without a Wireless Router) Wireless Remote Control and SWL(Samsung Wireless Link) must be enabled in the TV menu before you start the network setup. See the “Network Connection” section in the TV user manual for details about TV network settings.
Page 7
Select a network. Auto Confi guration Connect the Samsung Wireless LAN Adapter to the TV. Unsecured • To connect using Samsung Auto Confi guration, turn off any other devices nearby that support auto confi guration Secured fi rst. Unsecured...
Page 8
See the”Network Connection” section in the TV user manual for details about TV network settings. • If you want to use the SAMSUNG Wireless LAN Adapter (WIS09ABGN, WIS09ABGN2 or WIS10ABGN (sold separately)), you should connect to your TV’s rear or side panel USB(HDD) port.
INFO: Displays information on the TV screen. EXIT: Exits the menu. Use these buttons in Media Play and Anynet+ modes. : Controls recording for Samsung recorders that have the Anynet+ feature) Buttons used in the Channel List, Internet@TV, Media Play menu, etc. UC9000_Bra]BN68-03083K-00L02.indb 9...
Page 10
TV Control Services Move left, right, up, down, return, and Navigation exit. You can use the QWERTY keyboard to type text on the TV screen. Enables you to change the text fi elds to lower case and upper case. Enables you to change the text fi elds to numbers and Keyboard icons.
Page 11
Services With Services, you can go directly to an item which was originally set on the main screen. Listen to or view the music, TV Control Services Multimedia movies, and pictures from your Devices Add the external device you want to control.
HOT-KEY menu On the Services main screen, Touch to manage TV Control Services the HOT-KEYS. To modify or delete a hot key, drag and drop the hot key <OK> UC9000_Bra]BN68-03083K-00L02.indb 12 2010-05-31 오후 1:3...
NOTE • You must install Samsung PC Share Manger (ver 4.0 or higher) on your PC and allow access to your TV and the Touch Control to play contents from your PC on your TV using the remote.
Select <Remote Settings> on the screen to search for Remote Settings the desired code set. Search CodeSet Done Select the brand on the list and choose the code set Select Brand you want. Rowa Sampo Samsung Sanyo Schmartz Schneider Search UC9000_Bra]BN68-03083K-00L02.indb 14 2010-05-31 오후 1:3...
Page 15
Change the code set by tapping and then Codeset select <Send IR>. If the external device turns on or off, select <Apply> to Send IR to device POWER register the external device. Send IR Detail If you can’t find codeset on the list, tap <Learn> to start the remote’s external device registration process.
Page 16
Learning Remote IR receiver The distance between Samsung remote and the remote to be learnt is at a ideal distance of 2cm. The learning LED is directly facing the remote to be learnt (within 45-60 degree depending on the LED chosen).
Settings menu Add Macro You can register a function of an added external device as a hot key in <Services>. When you tap that hot key, the device performs the function. For example, turns on. Add Macro Add Macro TV Control Services Device List Select device control...
Page 18
Channel Macro You can register a function of an added external device as a hot key in <Services>. When you tap that hot key, the device performs the function. Channel Macro Channel Macro TV Control Services Enter the channel number. Enter the channel name.
Page 19
General Settings Set the Basic settings. • <Button Volume>: Control the volume of the remote. • <Brightness>: Control the brightness of the screen. • <Touch Alert Tone>: Set the screen touch mode to sound or vibration. • <Backlight Duration>: Set the interval time of the auto LCD off. Language Select the menu language from three choices.
Page 20
Connect TV For configuring <Connect TV> settings, see page 7. S/W Upgrade Upgrade the software of the remote control to the latest version. The charger must be connected before you perform an upgrade. Initialization Reset the remote control to initial settings. The user settings will be deleted and manufacturer’s default settings restored.
3 minutes. (You can select 1 minute, 2 minutes or 3 minutes.) Upgraded software has been added on Samsung. The arrow on the top right does com. Access Settings and perform a software not disappear.
Specifi cation RMC30C2 Model 3 inches (2.95 inches measured diagonally) Type TFT-LCD Panel Resolution 320x240 Capacitive, Single Touch Touch Sensor Mono (Inner Speaker, 0.2Watt) Sound Wireless Network IEEE 802.11 b/g/n Network DC Charger 4.2V/ 0.65A Power AC input AC 100 to 240 VAC / frequency: 50 ~ 60 Hz...
Page 23
WARRANTY This Samsung product is warranted for the period of 12 months from the original date of purchase (Warranty Period), against defective materials and workmanship. In the event that warranty service is required, you should first return the product to the retailer from whom it was purchased.
Page 24
Samsung; d. by modification without the written permission of Samsung;...
Page 25
ÍNDICE Funções básicas de uso ..03 Descrição / Acessórios Colocação da bateria Carregamento da bateria Primeira confi guração de usuário ..05 Primeira confi guração de usuário Confi guração da rede ..06 Controle remoto Wi-Fi de maior alcance Controle remoto Wi-Fi em rede Menu de controle de TV ..
Page 26
Funções básicas de uso Descrição Botão TV Power Tampa da bateria Tela de toque Porta de carregamento Botão MUTE Botão Channel Botão Volume Botão SOURCE Alto-falante Receptor IR (infravermelho) para dispositivos externos de aprendizado. Power Liga e desliga a TV. MUTE Com ou sem áudio.
Page 27
Colocação da bateria Deslize e abra a tampa da bateria na direção da seta. Insira a bateria com o logotipo da Samsung voltado para cima. Deslize e feche a tampa da bateria na direção da seta. Carregamento da bateria Carregue completamente a bateria antes de utilizar o controle remoto.
Page 28
Para usar o modo Wi-Fi conectado em rede, é necessário uma rede de área local e um roteador sem fi o em funcionamento. Para usar a função Multimedia (Multimídia), é necessário instalar o PC Share Manager Samsung no PC. Você pode fazer download do PC Share Manager no site http://www.samsung.com.
Page 29
Controle remoto Wi-Fi de maior alcance (Sem um roteador sem fio) Controle Remoto Sem Fio e SWL (Samsung Wireless Link)devem ser ativados no menu da TV antes de iniciar a configuração de rede. Consulte a seção “Conexão de rede” no manual do usuário da TV para obter detalhes sobre configurações de rede da TV.
Page 30
<Rede> Selecc. uma rede. Confi guração Automàtica Conecte o Adaptador de rede sem fi o Samsung à TV. Não seguro • Para conectar usando a confi guração automática Samsung, primeiro desligue qualquer outro equipamento Seguro próximo compatível com a confi guração automática.
Page 31
Consulte a seção “Conexão de rede” no manual do usuário da TV para obter detalhes sobre confi gurações de rede da TV. • If you want to use the SAMSUNG Wireless LAN Adapter (WIS09ABGN, WIS09ABGN2 or WIS10ABGN (sold separately)), you should connect to your TV’s rear or side panel USB(HDD) port.
Page 32
INFO: exibe informações na tela da TV. EXIT: sai do menu. Utilize esses botões nos modos Media Play e Anynet+. : controla a gravação nos gravadores Samsung que dispõem da função Anynet+) Botões usados nos menus Lista de Canais, Internet@TV, Media Play, etc.
Page 33
Contr TV Serviços Mover para a esquerda, para a direita, Navegação para cima, para baixo, voltar e sair. Você pode usar o teclado QWERTY para digitar o texto na tela da TV. Permite que você altere os campos do texto para letras minúsculas e letras maiúsculas.
Page 34
Serviços Com Serviços, é possível acessar diretamente um item desejado defi nido originalmente na tela principal. Ouvir música ou assistir a fi lmes e Multimídia Contr TV Serviços imagens do PC. Informações Exibir a lista de canais no ar. sobre canais Adicionar, editar e buscar canais.
Page 35
Menu de atalho Na tela principal de Serviços, toque para gerenciar as Contr TV Serviços teclas de atalho. Para modifi car ou excluir uma tecla de atalho, arraste e solte a tecla de atalho sobre Toque <OK> UC9000_Bra]BN68-03083K-00L02.indb 12 2010-05-31 오후 1:3...
Page 36
Foto / Música / Vídeo (do PC) Antes que seja possível usar a função Multimedia (Multimídia), é necessário vincular a TV e o Touch Control à sua rede doméstica e instalar o Samsung PC Share Manager ao PC. Foto Música Vídeo...
Page 37
Selecione <Confi g. de controle> na tela para buscar o conjunto de códigos desejado. Selecione a marca na lista e escolha o conjunto de códigos Selecionar marca desejado. Rowa Sampo Samsung Sanyo Schmartz Schneider Busca UC9000_Bra]BN68-03083K-00L02.indb 14 2010-05-31 오후 1:3...
Page 38
Altere o conjunto de código tocando e, em Def. código seguida, selecione <Enviar IR>. Caso o dispositivo externo esteja ligado ou desligado, Send IR to device POWER selecione <Aplicar> para registrar o dispositivo externo. Enviar IR Detalhes Se não for possível localizar o conjunto de códigos na lista, toque <Aprender>...
Page 39
Controle remoto de aprendizado Receptor de infravermelho A distância ideal entre o controle remoto Samsung e o controle remoto a ser instruído é de 2 cm. O LED de aprendizado é direcionado para o controle remoto a ser instruído (em 45 a 60°, dependendo do LED selecionado).
Page 40
Menu de confi gurações Adicionar macro É possível registrar uma função de um dispositivo externo adicional como uma tecla de atalho em <Serviços>. Ao tocar a tecla de atalho, o dispositivo desempenhará a função. Por exemplo, ligar. Adicionar macro Adicionar macro Contr TV Serviços Lista de Dispositivos...
Page 41
Macro do canal É possível registrar uma função de um dispositivo externo adicional como uma tecla de atalho em <Serviços>. Ao tocar a tecla de atalho, o dispositivo desempenhará a função. Macro do canal Macro do canal Contr TV Serviços Insira o número do canal.
Page 42
Confi gurações gerais Defi nir as confi gurações básicas. • <Volume do botão>: controlar o volume do controle remoto. • <Brilho>: controlar o brilho da tela. • <Tom alerta de toque>: confi gurar o modo de toque da tela como som ou vibração. •...
Page 43
Conexão de TV Para obter informações sobre a definição das configurações de <Conexão de TV>, consulte a página 7. Atualização SW Atualizar o software do controle remoto para a versão mais recente. É necessário conectar o carregador antes de realizar uma atualização. Inicialização Restaure o controle remoto de volta às suas configurações iniciais.
Page 44
Duração luz de fundo. O período pode ser ampliado para até 3 minutos. (É possível selecionar 1 minuto, 2 minutos ou 3 minutos.) O software atualizado foi adicionado ao Samsung. A seta no canto superior direito com. Acesse as Confi gurações e desempenhe uma não desaparece.
Page 45
Especifi cação RMC30C2 Modelo TFT-LCD de 3 polegadas (2,95 polegadas Tipo medidas diagonalmente) Painel Resolução 320 x 240 Capacitivo, toque único Sensor de toque Mono (Alto-falante interno, 0,2 Watt) Rede sem fi o IEEE 802.11 b/g/n Rede Carregador CC 4,2 V/0,65 A...
Page 46
(ii) seu recibo original, nota fiscal ou recibo de vendas referente à compra do produto como novo; (iii) seu número de reclamação de garantia. Em seguida, a Samsung fará o reparo ou a troca do produto e irá devolvê-lo para você usando os detalhes de contato fornecidos. CONDIÇÕES DE GARANTIA 1.
Page 47
Samsung; d. pela modificação sem a permissão por escrito da Samsung;...
Page 48
Brazil ANATEL RMC30C2 1152-10-3269 (01) 07892509990011 "Este equipamento opera em caráter sucundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário." Este produto está homologado pela ANATEL, de acordo com os procedimentos regulamentados pela Resolução 242/2000 e...
