Denon RCD-N7 Service Manual
  1. Manuals
  2. Brands
  3. Denon Manuals
  4. Car Receiver
  5. RCD-N7
  6. Service manual

Denon RCD-N7 Service Manual

Network cd receiver
Hide thumbs Also See for RCD-N7:
Table of Contents

Advertisement

Quick Links

e
RCD-N7
• For purposes of improvement, specifications and design are subject to change without notice.
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
S0458-1V06DM/DG1203

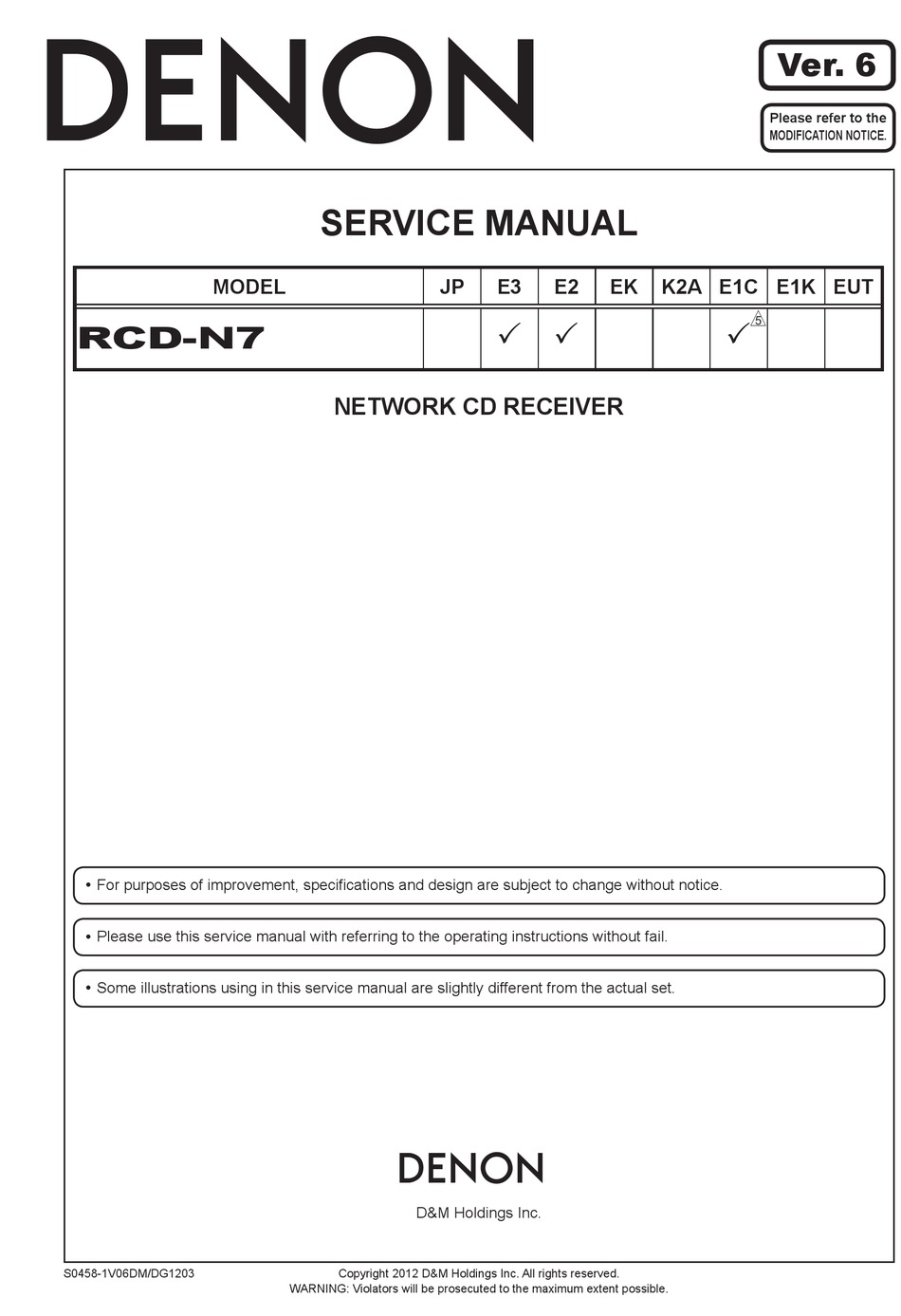

SERVICE MANUAL
MODEL
NETWORK CD RECEIVER
Copyright 2012 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.
JP
E3
E2
P P
e
D&M Holdings Inc.
Ver. 6
Please refer to the
MODIFICATION NOTICE.
EK
K2A E1C E1K EUT
g
P
