- Page 1 LP12 Searchlight & Broadcasting System USER MANUAL V1.0 2022.04.15...
-
Page 2: Table Of Contents
Contents I. Disclaimer and Warning II. Introduction of LP12 III. Installation tutorial of LP12 IV. DJI Pilot APP tutorial V. Micro USB port instruction 5.1 Audio file copy 5.2 Firmware upgrade... -
Page 3: Disclaimer And Warning
Warning The LP12 is a precision equipment, the body is of sealing to prevent dust and water. In case of hardware problems, please contact the after-sales service at the manufacturer, pls do not disassemble and repair by yourself, otherwise you will lose the warranty and repair eligibility. -
Page 4: Introduction Of Lp12

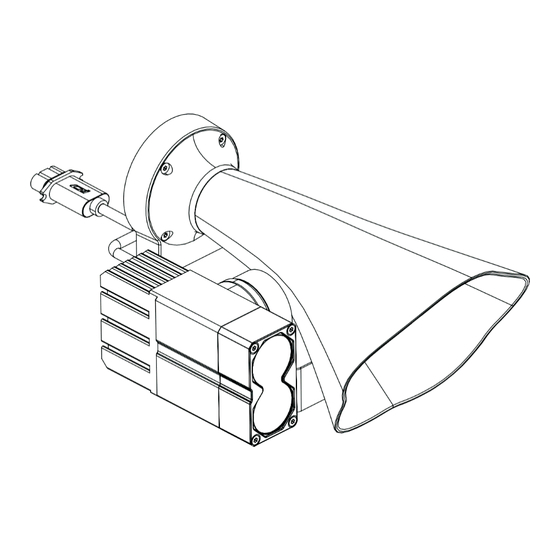

Introduction of LP12 czi LP12 searchlight & broadcasting system is a two-in-one payload specially designed for the DJI M30. LP12 is with a streamlined aesthetic design concept. It challenges the limits of performance while maintaining artistic taste and effectively reducing wind resistance to enhance the endurance of the drone's flight operations. - Page 5 LP12 Model DJI OSDK Electrical interface 270g(without quick-mount fixture); Weight 283g(with quick-mount fixture) L162*W115*H75mm Dimensions Regular mode:30w Searchlight power Ultra bright mode&Flashing mode:40w Speaker power Power supply voltage 2700lm±3% Luminous flux 13° Searchlight FOV Illumination distance 29.6m 22.8m 11.4m...
-
Page 6: Installation Tutorial Of Lp12
M3×10 screws to mount the bracket on the M30. 2. Slide the LP12 on quick mount bracket along the rails to the end and shake the bottom of the LP12 to ensure it is in place and securely locked. - Page 7 3. to put the LP12 power/communication cable to the MSDK interface. (Note: do not operate with M30 is on)
-
Page 8: Dji Pilot App Tutorial
IV. DJI Pilot APP tutorial 1. click DJI Pilot enter into main interface. On the right showing LP12 PSDK, indicating payload recognized. Next operation, click flight interface. 2. entering flight interface, click right bottom“PSDK”, showing payload control. - Page 9 ① ④ ② ⑤ ③ ⑥ ② gimbal ① light on/off synchronization ③ searchlight pitching ④ Status angle adjustment information list ⑥ searchlight ⑤ gimbal fine modes option tune...
- Page 10 3. Click button, slide adjustment bar to adjust gimbal pitching angle. 4. Click button,choose light normal brightness, ultra brightness, strobe mode.
- Page 11 5. Click button, open searchlight. 6. Click right top menu, enter menu.
- Page 12 7. Click 3 party payload button PSDK, text to speech function, click TTS square to enter text, click send button. 8. TTS human voice options. Human voice options are Cantonese, Hunan dialect, DongBei dialect, English, Italian…etc.
- Page 13 9. Play audi file 10. Searchlight operation interface 11. LP12 will have live broadcasting function. Pls stay tuned for firmware upgrade.
-
Page 14: Micro Usb Port Instruction
V. Micro USB port instruction 5.1 Audio file copy 1. use micro USD cable to link up LP12 to computer. 2. Connected, U drive will be showing on computer. - Page 15 3. double click U drive, check Music folder. 4. double click Music file folder, copy audio file into Music file folder. (Supported audio file formats：mp3/wav/m4a/flac/aac) 5. audio file copied to Music file folder successfully. Quick U drive from computer.
-
Page 16: Firmware Upgrade
Firmware upgrade 1. use micro USB cable link up LP12 to computer USB. 2. After connection, U drive showing on computer. - Page 17 3. double click U drive, copy firmware file into U drive. 4. Firmware copied, quit U drive. 5. put power/communication cable of LP12 to connect M30 MSDK interface,turn on M30. LP12 firmware upgrade successfully.
- Page 18 Pls log on to czi official website www.gzczzn.com for more LP12 updates and information. If LP12 not working, pls contact your dealer and us directly. ChengZhi Technical Support www.gzczzn.com Service hotline: 400-008-8306 If you have any question or suggestion to the user manual Pls contact us via below email service@gzczzn.com...
