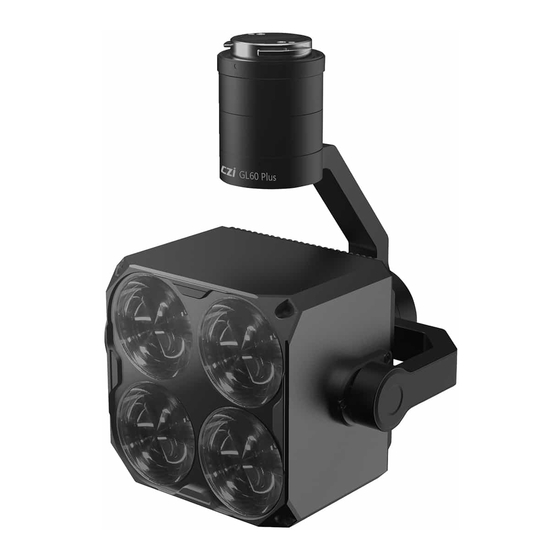

CZZN GL60 Plus User Manual

Gimbal searchlight
Hide thumbs

Advertisement

Quick Links

Download this manual

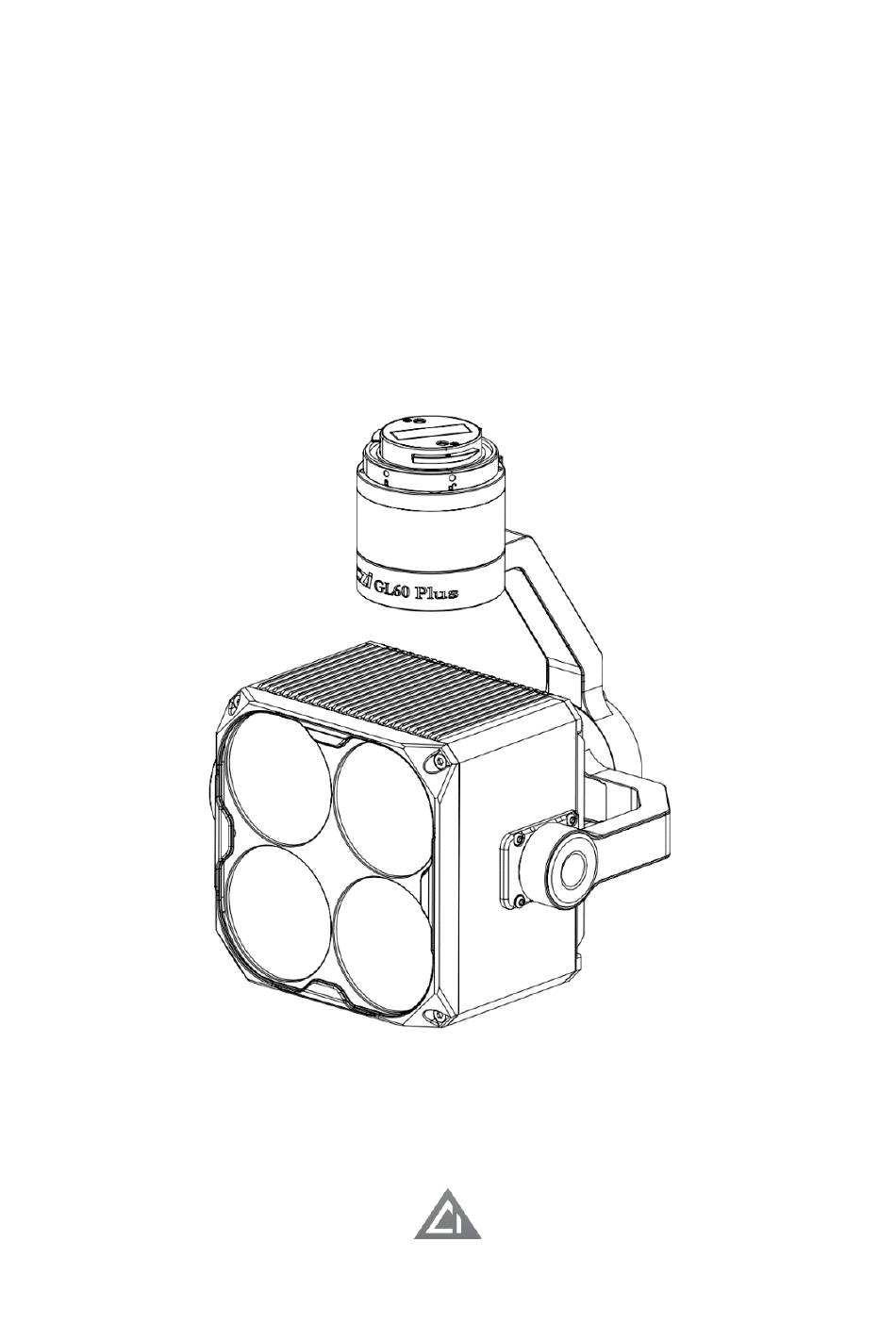

GL60 Plus Gimbal Searchlight User Manual
V1.0
2021.09.30

Advertisement

loading

Related Manuals for CZZN GL60 Plus

Summary of Contents for CZZN GL60 Plus

  • Page 1 GL60 Plus Gimbal Searchlight User Manual V1.0 2021.09.30...

  • Page 2: Table Of Contents

    1. Introduction of Gimbal Searchlight Series 2. disclaimer and warning 3. GL60 Plus Gimbal Searchligh introduction 4. GL60 Plus Gimbal Searchlight installation tutorial 5. CZZN APP installation and use of tutorial 6. DJI Pilot APP use tutorial 7. firmware upgrade 7.1 Online firmware upgrade...

  • Page 3: Disclaimer And Warning

    Disclaimer and Warning Thank you for purchasing czi products. The contents mentioned herein are related to your safety and legal rights and responsibilities. Before using this product, please read this document carefully to ensure that you have set up the product properly. Failure to follow and comply with the instructions and warnings in this document may result in injury to you and others , damage to the product or other surrounding items.
  • Page 4 Caution GL60 Plus is a precision optical device, the main body is fully sealed to prevent dust and water. In case of hardware problems, please return to the manufacturer and contact the after-sales service, do not disassemble and repair by unauthorized personnel, otherwise you will lose the warranty and repair eligibility.
  • Page 5 5% after 1000 hours of operation. The GL60 Plus is a reliable partner for the DJI M300 RTK.
  • Page 6 （1）GL60 Plus Gimbal Searchlight 1、Dust cover 2、DJI SKYPORT V2 adapter ring 3、OSDK power supply port 4、Tri-axis stabilized gimbal 5、TF card slot cover 6、Light outlet...
  • Page 7 ⑧ Port 2 （2）OSDK Power Cable 7. Power cable port 1 (connects to the OSDK end on top of the DJI M300 RTK) 8. Power cable port 2 (connects to the OSDK power supply port ③ of the GL60 Plus)
  • Page 8 Specification:...

  • Page 9: Gl60 Plus Gimbal Searchlight Installation Tutorial

    1、Remove the protective cover of the GL60 Plus gimbal searchlight interface, align it with the no. 2 gimbal port of the drone, push upwards and gently rotate the GL60 Plus gimbal interface counter-clockwise to align the two red markers and lock the gimbal. After installation is complete, check the GL60 Plus Gimbal Searchlight is securely mounted.
  • Page 10 2. Connect the OSDK power cable, to the OSDK port of the DJI M300 RTK and the GL60 Plus Gimbal Searchlight. (Note: Do not operate with DJI M300 RTK ON. must be OFF)

  • Page 11: Czzn App Installation And Use Of Tutorial

    DJI remote control, to get the installation package. ① Go to the official website http://en.gzczzn.com/?lg=1 to download CZZN APP and copy it to your flash disk or TF high-speed card. ②Use the CZZN APP installation package already in the TF high-speed card or flash disk.
  • Page 12 3, (correctly install the GL60 Plus gimbal searchlight) to enter the main interface, pop up notice "detected GL60 Plus, whether to open and use DJI Pilot", click to confirm, to enter the DJI Pilot main interface, and open hovering dialogue window.
  • Page 13 5、 s：“ ”—— turn the light on hovering option “ ”—— flashing mode “ ”、 “ ”、 “ ”、 “ ”—— gimbal fine tune “ ”—— Double gimbals synchronized button “ ”—— brightness tuning...

  • Page 14: Dji Pilot App Use Tutorial

    DJI Pilot APP use tutorial 1、Click DJI Pilot to enter the main interface. 2, into the main interface, the lower left corner shows the word GL60 Plus, indicating that the recognition success, you can proceed to the next step, click on the manual flight.
  • Page 15 Ⅰ and gimbal Ⅱ to synchronize the gimbals, and when synchronizing the payloads following, the horizontal angle of GL60 plus is the same as the payload being followed. 4. Click on the menu bar and click on the third party payload option to enter the GL60 Plus gimbal searching light interface.
  • Page 16 5. Click on the Data button and a status display dialogue box will pop up in the top left corner of the main interface, where you can observe the status of parameters such as real-time temperature and power of the GL60 Plus.
  • Page 17 7. Use the H20 and GL60 Plus Tilt fine tuning button, the Heading fine tuning button and the Horizontal fine tuning button to make fine tuning to the position of the light spot in the frame so that the light spot remains in the center of the view.
  • Page 18 8. When observing the target, if the camera is overexposed, slide the exposure button on the screen to adjust it.

  • Page 19: Firmware Upgrade

    VII. Firmware Upgrade 7.1 Online firmware upgrade 1. Open the CZZN software, click on the menu button at the top right and click on Firmware Management. 2. Go to the firmware management interface, find the latest version of Firmware and click Refresh or Upgrade.
  • Page 20 3、Click update 4、Wait for Firmware update successfully...
  • Page 21 5, firmware update successfully, the GL60 plus is into the re-calibration status, wait a few seconds to complete the update operation. (tips: If the GL60 plus does not respond, you need to restart the drone and wait for the successful calibration.)

  • Page 22: Tf Card Firmware Upgrade

    7.2 TF card firmware update 1. Open the official website of CZZN: www.gzczzn.com, select the lighting series and click to view details. 2. Click on software download go to the download center. 3. Find the latest firmware and download the firmware...
  • Page 23 4, download the firmware and save in TF card, inserted the TF card into the GL60 plus TF card slot; connect the drone and the GL60 plus, the GL60 plus runs into the re-calibration status, wait a few seconds to complete the update operation.
  • Page 24 www.gzczzn.com If you have any questions or suggestions regarding the manual, please contact us at：dev@gzczzn.com Printed in China...
