FL48-M300 Red and Blue Flashing Light User Manual 2021.12.23 Catalog ⅰ.Introduction of FL48-M300 red and blue flashing light 2 ⅱ.Disclaimer and warning ⅲ.FL48-M300 red and blue flashing light parameters ⅳ.FL48-M300 mounting operation ⅴ.FL48-M300 software tutorial ⅵ.Attention... -
Page 2: Fl48-M300

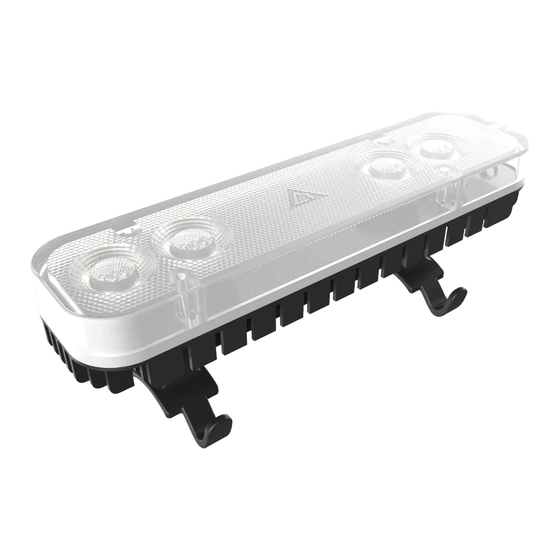

ⅰ.Introduction of FL48-M300 red and blue flashing light FL48-M300 red and blue flashing light, suitable for police UAV patrol duty work. Adopting DJI M300 RTK UAV's Onboard SDK interface for power supply and signal control, no additional power supply is required, and it is suitable for DJI M300 RTK series UAV. - Page 3 Cautions When the M300 RTK is not in flight, the FL48-M300 red and blue flashing light cannot be turned on for a long time, otherwise the power will be too high due to the heating of the light board, resulting in...
-
Page 4: Ⅲ.fl48-M300 Red And Blue Flashing Light Parameters
FL48-M300 red and blue flashing light (including control box) weighs ≤385g, connects with M300 RTK OSDK interface, can be mounted on DJI MATRICE M300 RTK and used. Light switch can be controlled through CZZN APP.It is easy to use. Technical parameters... -
Page 5: Ⅳ.fl48-M300 Mounting Operation
ⅳ.FL48-M300 mounting operation 1.Use screws to fix the red and blue flashing light control box in the top of the machine, the location is as follows:... - Page 6 2. Install the red and blue flashing lights in the M300 tripod and connect the light cable with the control box, the installation position and direction as shown:...
- Page 8 3. Connect the data cable of the control box to the M300, turn on the drone and check the display status of the light on the top of the control box, if you can see red light of control box on once turning on the drone power, it means the power supply of the OSDK interface is normal.
-
Page 9: Ⅴ.fl48-M300 Software Tutorial
ⅴ. FL48-M300 software tutorial 1、Activate M300 RTK OSDK function Step 1：Download the new version of DJI Assistant 2 (Enterprise Series) for https://www.dji.com/cn/matrice-300/downloads debugging software via as shown in the picture below. Notably, do not use DJI Assistant 2, DJI Assistant 2 does not support M300 RTK tuning. - Page 10 Step 3: Enable the OSDK API control function in DJI Assistant 2 For Matrice tuning software, as shown in the figure below： 1）Select "Start API control" 2）"Baud rate" select 921600 Step 4: Close the tuning software after setting the parameters and restart the drone twice.
- Page 12 CZZN APP, you can see that the drone has been connected to the load “OSDK Device”.
- Page 13 Step 3: Open the "OSDK Device Control" by clicking on the settings button in the upper right corner Step 4: After the prompt box of "whether to open DJI Pilot at the same time?" pops up, press the confirmation button, the interface will cut to the main interface of DJI Pilot APP, and the control buttons of red and blue flashing lights will be displayed at the same time.
- Page 14 When the light is not on, the control button is white. At this time, you can control the flight of the drone through DJI POLIT APP and control the light on/off with the hover button. Step 5: Press the control button, red and blue flashing light began to work, the control button shows yellow, indicating that the light is in working condition.
-
Page 16: Ⅵ.attention
ⅵ, Attention If you encounter a drone firmware update that causes the red and blue flashing lights to not work properly, please contact your local agent or factory in a timely manner. ChengZhi Intelligence Support www.gzczzn.com If you have any questions or suggestions about the manual, please contact us at the following email address:...
