Konica Minolta AU-201S Installation Manual

Authentication unit applied machines: pro958/958/808/758

Advertisement

Quick Links

Applied Machines: PRO958/958/808/758
MFP: 95 ppm/80 ppm/75 ppm
Product Code: A796/A8KN/A795

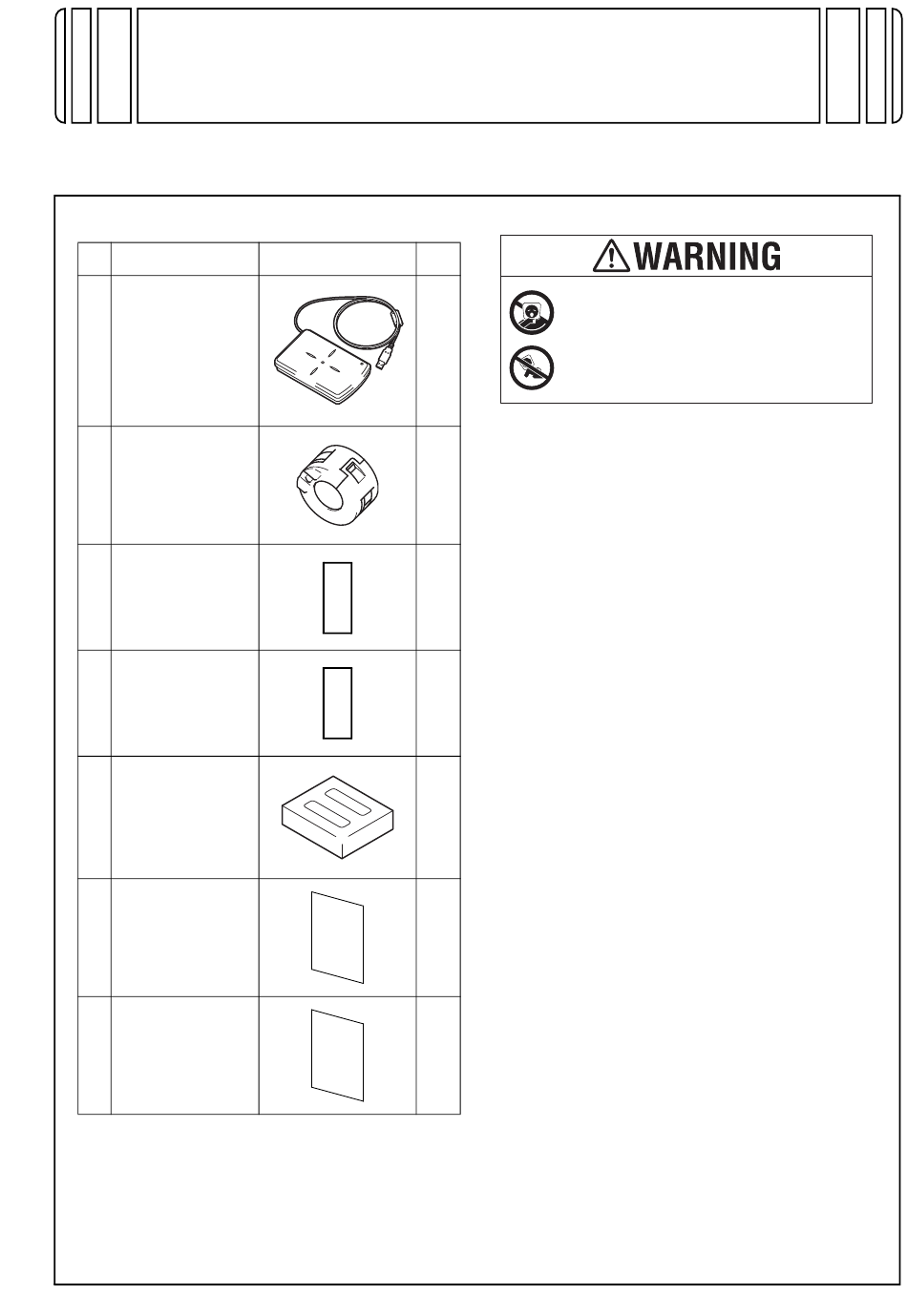

1. Accessory parts
No.
Name
1. Authentication
unit
2. Ferrite core
3. Hook-and-loop
fastener A
(hook)
(25.4 × 10 mm)
*
4. Hook-and-loop
fastener B
(loop)
(25.4 × 10 mm)
*
5. Rubber foot *
6. Safety
information
guide
7. Additional
information
*
This part is not used in this installation.
AU-201S
INSTALLATION MANUAL
Shape
Q'ty
1
1
3
3
1
1
set
1
set
Authentication Unit
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.
Note:
• To install this authentication unit, the Working
Table WT-506 or the Mount Kit MK-735 is
required.
• When you attach this authentication unit to the
Working Table WT-506, we recommend you
attach this unit to the working table before you
attach the working table to the machine.
• When you use the Mount Kit MK-735 to attach
this authentication unit to the machine, see the
installation manual of the mount kit for informa-
tion on the installation procedure.
• This manual provides the illustrations of the
accessory parts and machine that may be
slightly different in shape from yours. In that
case, instead of the illustrations, use the
appearance of your machine to follow the
installation procedure. This does not cause any
significant change or problem with the proce-
dure.
E-1
A795-9632-00

Advertisement

loading

Summary of Contents for Konica Minolta AU-201S

  • Page 1 AU-201S Authentication Unit INSTALLATION MANUAL Applied Machines: PRO958/958/808/758 MFP: 95 ppm/80 ppm/75 ppm Product Code: A796/A8KN/A795 1. Accessory parts Name Shape Q’ty 1. Authentication Keep this bag away from babies and unit children. Do not use in cribs, beds, carriages, or playpens.
  • Page 2 2. Installation procedures (5) Paste the cushion to the cover, aligning the cushion with the line marked inside the cover. (1) Turn OFF the power switch and unplug the Note: power cord from the power outlet. The cushion is supplied with the working table. (2) Attach the ferrite core as shown in the illustra- tion.
  • Page 3 (9) Attach the working table to the main body. (13) Fit the USB cable into the two cable guides. Pull the USB cable up in order to remove slack. Note: For the installation procedure, see the working table installation manual. (10) Attach the cable clamp onto the position shown in the illustration.
  • Page 4 10 seconds or more before turning on. 3. Configuration procedures <Installation of the loadable device driver> Install the AU-201S loadable driver (ICC_LDR.tar) to the main unit. (1) Prepare a USB memory where only the loadable device driver is stored in the ROOT directory.
