Fish Symbol Id - Interphase Proble Operation Manual

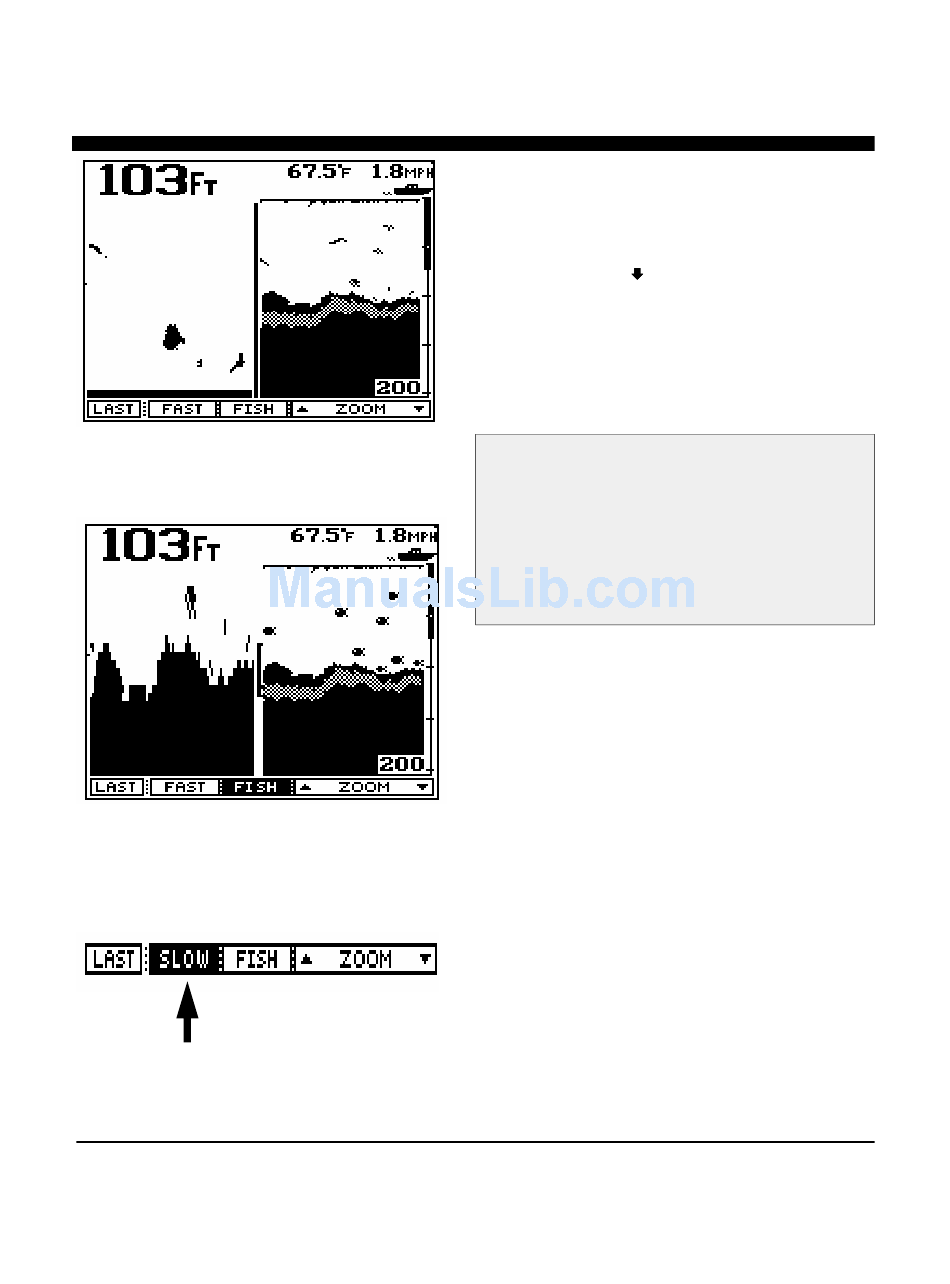

Split Screen Bottom Lock Display
Zoomed Display with Fish Symbols ON
Screen Scroll Speed
If you move the zoom bar all the way to the bottom of the
display, the Bottom Track and the Bottom Lock
features can be activated.. When the Bottom Track
feature is activated, the Zoom Bar changes to a thin bar
extending from the top to the bottom of the display.
Pressing the "ZOOM
Bottom Lock feature. When in Bottom Lock, the Zoom
Bar changes to a thick vertical line extending from the top
to the bottom of this display. Move the zoom bar up to
return to the regular zoom operation and turn Bottom
Lock off. Moving the zoom bar all the way to the top of
the display turns the Zoom off and returns you to full
screen bottom history.
NOTE: To return to a full screen and exit the
split screen zoom or bottom track mode, you
must carefully move the zoom bar to the top of
the display until it disappears. This can
sometimes be confusing because the Advantage
remembers all settings and will remain in the
split screen zoom or bottom track mode until
you exit this mode as described above.
Fish Symbol (Turn on/off)
Pressing the soft key labeled "FISH" turns the fish
symbol on or off. When turned on, the "FISH" soft key
will be shown in reverse video and the Probe's
microprocessor will scan the output of the receiver and
looks for specific patterns which it has been programmed
to recognize as fish. If it thinks it "sees" a fish, it creates
a fish symbol in place of the normal blob or arch. Press
the "FISH" soft key to turn this feature off.
Display scrolling speed adjustment
To adjust the speed at which the display scrolls from right
to left, press the softkey labeled either FAST, SLOW or
STOP. The display scrolling rate will change each time
you press this softkey. Faster scrolling rates are generally
used when you want to see the maximum detail possible
while slower speeds are used when you want to slow the
display to show the maximum amount of bottom history.
