Forward View (Full Screen)
10.3
MPH
While in the Control Center press the leftmost button
labeled "FWD" to view a full screen forward looking
display. At the top left of the screen the current depth
beneath the boat is shown in digital numbers. If the optional
speed/temperature transducer is connected to the unit, the
boat's speed is displayed just to the left of the digital depth
as shown on the picture at left.

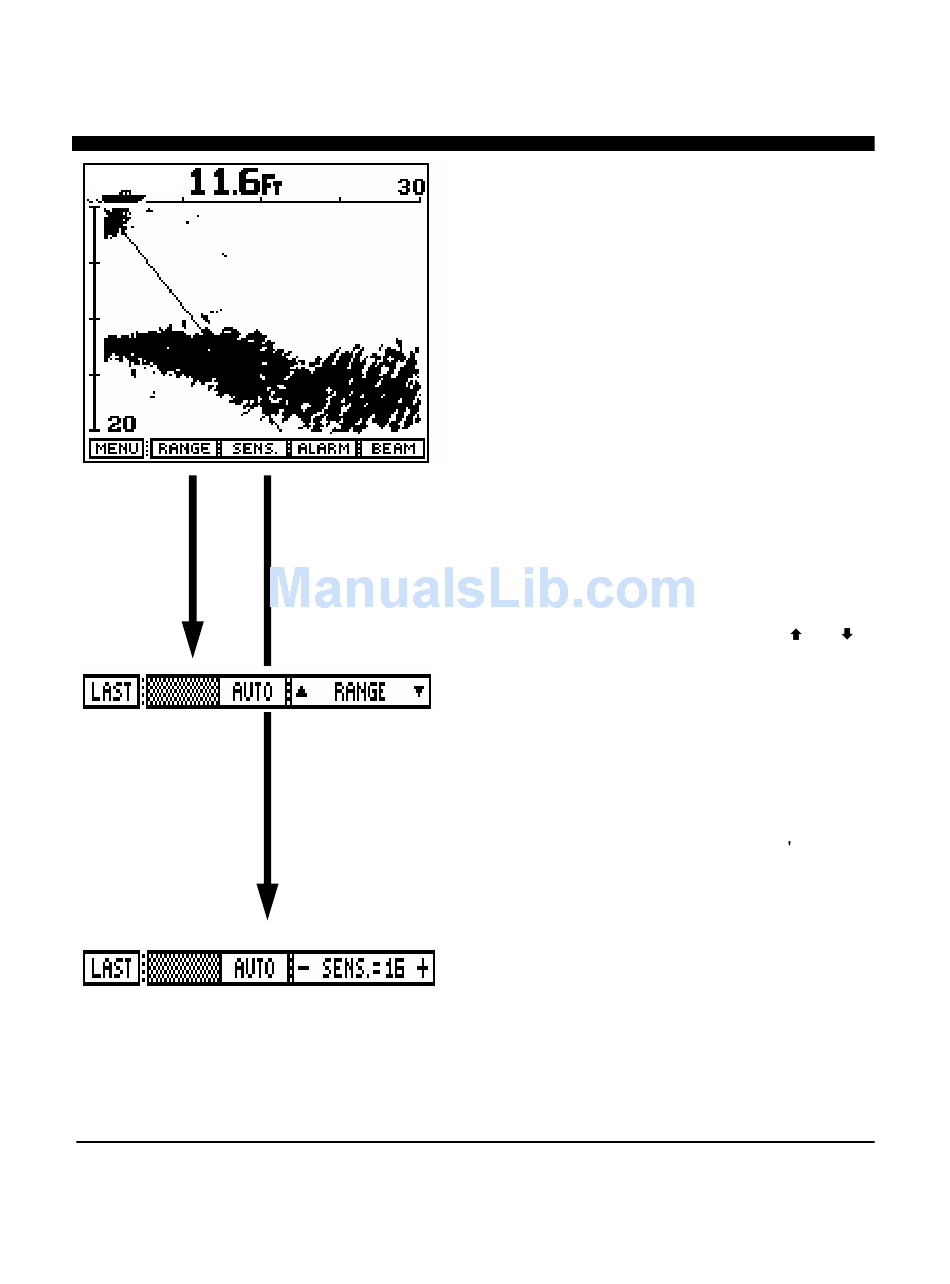

Press the GO button to bring up additional adjustments and
features for this forward looking view. Your display menus
should appear as on the left. Notice that both the
Downward depth and forward ranges are shown by the
digital numbers at the bottom left and the top right side of
the LCD screen. These numbers will change as different
ranges are selected, either automatically or manually.

Range Adjustment

Press the button labeled "RANGE" to bring up the Range
Adjustment soft key menu as shown at left. Press the
button labeled "AUTO" if you would like the Probe's
internal microprocessor to automatically select and adjust
the range as bottom conditions change. To manually adjust
the range press either the range button labeled " " or " ",
or rotate the large knob. If you make a manual depth
adjustment, the AUTO range mode is turned off and will
remain off until the button labeled AUTO is again selected.
Note: when in the AUTO mode, the soft key labeled
AUTO will be shown in reverse video (white on black). To
return to the main forward looking menu, press the left soft
key labeled "LAST".

Sensitivity Adjustment

Press the soft key labeled "SENS" (for sensitivity) to bring
up the choices available for adjusting the Probe s receiver
sensitivity. Press the button labeled "AUTO" so that the
word AUTO is shown in reverse video (white letters on a
black background) if you would like the Probe to
automatically adjust its sensitivity for changing conditions.
To manually adjust the sensitivity, either press the button
S
labeled "- Sens" or " ens +" or rotate the front panel
knob. Note that the soft key shows a number which
indicates the relative sensitivity being used (+1 to +32).
When you choose to manually adjust the sensitivity, the
Probe turns off the AUTO sensitivity mode and it will
remain off until the AUTO soft key is again selected. To
exit the sensitivity menu and save your adjustments simply
press the soft key labeled "LAST" to return to the main
forward looking menu.
