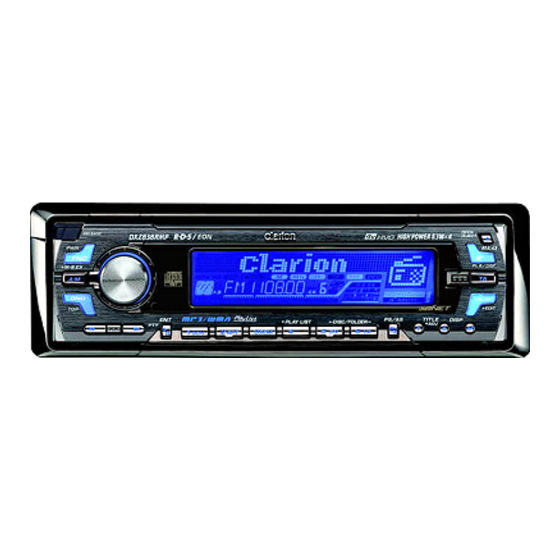

Clarion Net DXZ638RMP Owner's Manual

Rds-eon fm/mw/lw radio cd/mp3/wma/combination with dvd/md/cd changer/dab/tv control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's manual /
Mode d'emploi
Bedienungsanleitung /
Gebruiksaanwijzing /
Bruksanvisning /
Manual de instruções
RDS-EON FM / MW / LW RADIO CD / MP3 / WMA /
COMBINATION WITH DVD / MD / CD CHANGER / DAB / TV
CONTROL
COMBINÉ RADIO RDS-EON FM / PO / GO ET LECTEUR CD
/ MP3 / WMA A CHANGEUR CD / DVD / MD ET COMMANDE
DAB / TÉLÉVISEUR
RDS-EON-UKW-MW-LW-RADIO-CD/MP3/WMA-
KOMBINATION MIT DVD/MD/CD-WECHSLER-/DAB/TV-
STEUERUNG
LETTORE CD, MP3 E WMA, CON RDS-EON, RADIO FM, AM
E OL, IN COMBINAZIONE CON SCAMBIATORE DVD, MD E
CD, SISTEMA DAB E COMANDO TV
RDS-EON FM/MW/LW RADIO CD/MP3/WMA COMBINATIE
MET DVD/MD/CD-WISSELAAR/DAB/TV BEDIENING
COMBINACIÓN DE RADIO RDS-EON FM / MW / LW Y
REPRODUCTOR DE DISCOS CD / MP3 / WMA CON CONTROL
DE CAMBIADOR DE DISCOS DVD / MD / CD Y DAB/TELEVISOR
KOMBINERAD RDS-EON FM/MV/LV-RADIO OCH CD/MP3/
WMA-SPELARE MED KONTROLL FÖR DVD/MD/CD-
VÄXLARE OCH DAB/TV
RADIO RDS-EON FM/MW/LW E CD/MP3/WMA COMBINADO
COM CONTROLO DE CARREGADOR DVD/MD/CD E DE
DAB/TV
Istruzioni per l'uso
Manual de instrucciones
•
•
•
•
•
•
•

Advertisement

Table of Contents
loading

Related Manuals for Clarion Net DXZ638RMP

Summary of Contents for Clarion Net DXZ638RMP

  • Page 1 Owner’s manual / Mode d’emploi Bedienungsanleitung / Istruzioni per l’uso Gebruiksaanwijzing / Manual de instrucciones Bruksanvisning / Manual de instruções RDS-EON FM / MW / LW RADIO CD / MP3 / WMA / COMBINATION WITH DVD / MD / CD CHANGER / DAB / TV CONTROL •...
  • Page 2 Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual.

  • Page 3: Table Of Contents

    Display Items Z-Enhancer Plus indication : MANU indication : DAB indication : Alternative frequency indication : Regional indication : Traffic announcement indication : Traffic programme indication : Programme type indication : Information indication Operation status indication Titles, PS names, PTYs, CT (clock), etc.

  • Page 4: Controls

    CONTROLS / LES COMMANDES / REGLER / CONTROLLI REGELAARS / CONTROLES / KONTROLLER / CONTROLOS Main unit / Appareil principal / Hauptgerät / Apparecchio principale Hoofdtoestel / Unidad principal / Huvudenhet / Unidade principal [ ROTARY ] [ Q ] [ RELEASE ] [ CD SLOT ] [ FNC ]...

  • Page 5: Dcp

    4. DCP The control panel can be detached to prevent theft. When detaching the control panel, store it in the DCP (DETACHABLE CONTROL PANEL) case to prevent scratches. We recommend taking the DCP with you when leaving the car. Removing the DCP 1.

  • Page 6: Remote Control (Optional)

    5. REMOTE CONTROL (Optional) If you buy the RCB-130 sold separately, you can enjoy the use of the Remote Control function. Remote control unit [ FUNC ] [ MUTE ] [ PS/AS ] Inserting the Batteries 1. Turn the remote control unit over, then slide the rear cover in the direction of the arrow.

  • Page 7: Functions Of Remote Control Unit Buttons

    Functions of Remote Control Unit Buttons Mode Radio (RDS) /DAB Button [FUNC] Switches among radio, DAB, CD/MP3/WMA, CD/MD changer, DVD changer, TV and AUX. [BAND] Switches reception band. Increases and decreases volume (in all modes). ] , [ ] , [ Moves preset channels up and down.

  • Page 8: Operations

    6. OPERATIONS Basic Operations CAUTION Be sure to lower the volume before switch- ing off the unit power or the ignition key. The unit remembers its last volume setting. If you switch the power off with the volume up, when you switch the power back on, the sudden loud volume may hurt your hearing and damage the unit.
  • Page 9 Basic Operations Adjusting the tone Press the [A-M] button and select the item to adjust. Each time you press the [A-M] button, the item changes as following order: GWhen “BASS BOOST” is set “B-BOOST” ➜ “BAL 0” ➜ “FADER 0” ➜ Last function mode.

  • Page 10: Radio Operations

    Basic Operations Adjusting the Z-Enhancer Plus 1. Press the [Z+] button and select the Z-En- hancer Plus mode to adjust. 2. Press the [A-M] button and turning the [RO- TARY] knob clockwise adjusts in the + direc- tion; tuning it counterclockwise adjusts in the - direction.
  • Page 11 Radio Operations Manual tuning There are 2 ways available: Quick tuning and step tuning. When you are in the step tuning mode, the fre- quency changes one step at a time. In the quick tuning mode, you can quickly tune the desired frequency.

  • Page 12: Rds Operations

    RDS Operations RDS (Radio Data System) This unit has a built-in RDS decoder system that supports broadcast stations transmitting RDS data. This system can display the name of the broad- cast station being received (PS) and can auto- matically switch to the broadcast station with the best reception as you move long distances (AF switching).
  • Page 13 RDS Operations TA (Traffic Announcement) In the TA standby mode, when a traffic announce- ment broadcast starts, the traffic announcement broadcast is received as top priority regardless of the function mode so you can listen to it. Traffic programme (TP) automatic tuning is also possible. ∗...
  • Page 14 RDS Operations PTY preset memory 1. When you press the [ ] button, the PTY select mode is turned on. 2. Turn the [ROTARY] knob clockwise or coun- terclockwise to select the desired PTY. The 29 types of PTY below can be selected. ENGLISH DEUTSCH News...

  • Page 15: Precautions

    RDS oprations Emergency broadcast If an emergency broadcast is received, all the function mode operations are stopped. “ALARM” appears in the display and the emer- gency broadcast can be heard. GCancelling an emergency broadcast If you press the [AF] button, emergency broad- cast reception is cancelled.

  • Page 16: Cd/Mp3/Wma Operations

    CD/MP3/WMA Operations 2. Files without MP3/WMA data will not play. The indication “––:––” appears in the play time display if you attempt to play files with- out MP3/WMA data. G Logical format (File system) 1. When writing MP3/WMA file on a CD-R disc or CD-RW disc, please select “ISO9660 level 1, 2, 3 or JOLIET or Romeo”...

  • Page 17: Selecting A Track

    CD/MP3/WMA Operations ∗ The mode changes each time the [FNC] button is pressed. (Modes are not displayed for equipment that is not connected.) Radio (DAB) (TV) (AUX) Loading a CD 1. Insert a CD into the center of the CD SLOT with the label side facing up.

  • Page 18: Folder Select

    CD/MP3/WMA Operations Folder Select This function allows you to select a folder con- taining MP3/WMA files and start playing from the first track in the folder. 1. Press [DN] or [UP] button. Pressing [DN] button move to the previous play list. Pressing [UP] button move to the next play list.

  • Page 19: Random Play

    CD/MP3/WMA Operations Folder repeat play This function allows you to play a track currently being played in the MP3/WMA folder repeatedly. 1. Press and hold the [RPT] button for about 1 second to perform folder repeat play. The indications “FOLDER” and “RPT” light up in the display and “...

  • Page 20: Operations Common To Each Mode

    CD, CD changer and TV stations. ∗ The factory default setting is “Welcome to Clarion”. 1. Press and hold the [TITLE] button for 1 sec- ond or longer to switch to the adjustment se- lection display.

  • Page 21: Operations Common To Each Mode

    Operations Common to Each Mode Selecting the CONTRAST mode ∗ The factory default setting is “6”. 1. Press and hold the button [TITLE] for 1 sec- ond or longer to switch to the adjustment se- lection display. 2. Press the [a] or [d] button to select “CON- TRAST”.

  • Page 22: Clearing Titles

    Operations Common to Each Mode 8. Repeat steps 5 to 7 to enter up to 10 charac- ters for the title. 9. Press and hold the [ ] button for 2 sec- onds or longer to store the title into memory and cancel title input mode.

  • Page 23: Operations Of Accessories

    7. OPERATIONS OF ACCESSORIES CD/MD Changer Operations CD/MD changer functions When an optional CD/MD changer is connected through the CeNET cable, this unit controls all CD/MD changer functions. This unit can control a total of 2 changers. Press the [FNC] button and select the CD(MD) changer mode to start play.

  • Page 24: Cd/Md Changer Operations

    CD/MD Changer Operations Selecting a track GTrack-up 1. Press the [d] button to move ahead to the beginning of the next track. 2. Each time you press the [d] button, the track advances ahead to the beginning of the next track. GTrack-down 1.

  • Page 25: Tv Operations

    TV Operations TV tuner functions When an optional TV tuner is connected through the CeNET cable, this unit controls all TV tuner functions. To watch TV requires a TV tuner and monitor. Watching a TV 1. Press the [FNC] button and select the TV mode.
  • Page 26 TV Operations 2. Press and hold the [P/A] button for 2 sec- onds or longer. The stations with good recep- tion are stored automatically to the preset channels. Preset scan Preset scan allows the user to view each preset position before it automatically advances to the next preset.
  • Page 27 Digital Radio / DAB Operations Switching programmes 1. Press the [FNC] button to receive a DAB station. 2. Press the [a] or [d] button to switch programmes in the DAB station. Note: • The programme name may be the same depend- ing on DAB programmes.
  • Page 28 Digital Radio / DAB Operations Notes: • If a TP station is not received, the main unit stops the search operation. • “TP” may be lit in the display when a TP broad- cast is transmitted from an RDS station. In this case, press the [TA] button to perform TP seek tuning.

  • Page 29: Digital Radio/Dab Operations

    Digital Radio / DAB Operations Switching the PTY and INFO display language You can select one of 4 languages (English, German, Swedish or French) for the PTY and INFO shown in the display. ∗ The factory default setting is “ENGLISH”. ∗...

  • Page 30: In Case Of Difficulty

    8. IN CASE OF DIFFICULTY Problem Power does not Fuse is blown. turn on. (No sound is produced.) Incorrect wiring. No sound output Power antenna lead is when operating shorted to ground or the unit with excessive current is required amplifiers or for remote-on the amplifiers power antenna...
  • Page 31 Problem Cause Sound is bad Water droplets may form on directly after the internal lens when the power is turned car is parked in a humid place. Wrong filename File system is not correct. Play list play is File name or extension is not not performed.

  • Page 32: Error Displays

    9. ERROR DISPLAYS If an error occurs, one of the following displays is displayed. Take the measures described below to eliminate the problem. Error Display ERROR 2 A DISC is caught inside the CD deck and is not ejected. ERROR 3 A DISC cannot be played due to scratches, etc.

  • Page 33: Error Displays

    Error Display ERROR 2 A DISC inside the DVD changer cannot be played. ERROR 3 A DISC cannot be played due to scratches, etc. ERROR 6 A DISC inside the DVD changer cannot be played because it is loaded upside-down. ERROR P Parental level error.

  • Page 34: Specifications

    10. SPECIFICATIONS Radio section Tuning System: PLL synthesizer tuner Receiving Frequencies: : 87.5 to 108 MHz (0.05 MHz steps) : 531 to 1602 kHz (9 kHz steps) : 153 to 279 kHz (3 kHz steps) CD player section System: Compact disc digital audio system Frequency Response: 10 Hz to 20 kHz (±...
