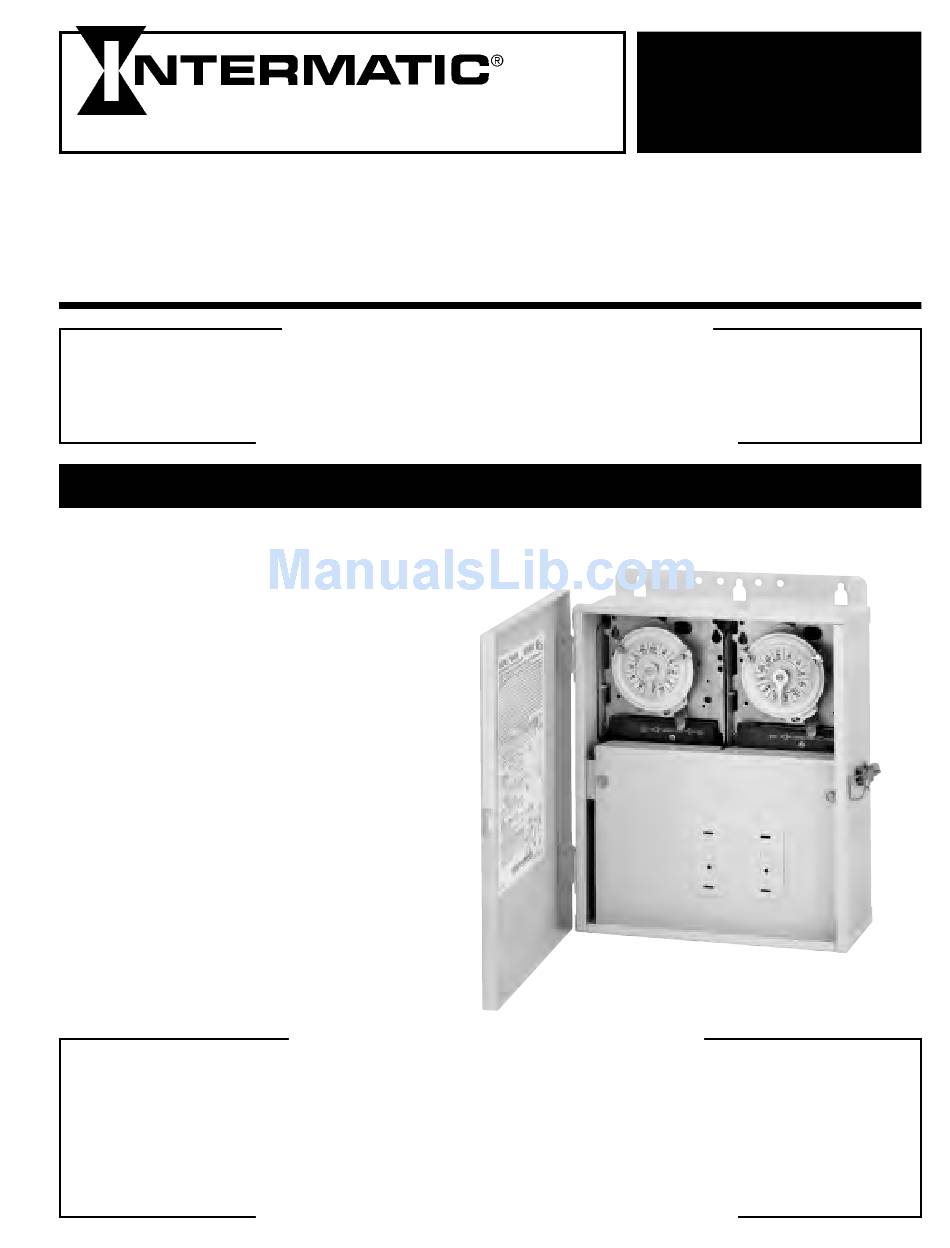

Intermatic T10604R Installation, Operation & Service Manual

T10000R SERIES
POOL/SPA EQUIPMENT CONTROLS
Model: T10604R
TIME CONTROL FOR TWO SPEED POOL/SPA FILTER PUMPS
ELECTRICAL RATING: 5 H.P. Max. - 240 Volt - 60 Hz.
Maximum running load not to exceed 28 Amperes.
SUITABLE FOR POOL/SPA EQUIPMENT CONTROL AND FOR DIRECT CONNECTION OF UNDERWATER LIGHTS
...do not permit children to operate the Control Unit or use the Pool/Spa unless they are closely supervised at all times.
...test GROUND FAULT protection regularly. If it fails to reset, DO NOT USE THE POOL or SPA!
Contact a qualified service technician.
...always disconnect electricity before servicing this control or the equipment connected to it. THIS CONTROL IS NOT TO BE
USED AS A POWER DISCONNECT.
Many of today's energy efficient pools and spas utilize the benefits of the two stage water circulation
principal. For example, while the daily cleaning process requires high pressure and fast turnover of a
large amount of water in the morning, the
heating, either by the sun or a heater, is more
energy efficient on a slower flow rate during the
day. Also, some of the new water sanitation
techniques require longer dispensing time of
ozone or chemicals.
The most economical way to operate a pool or
spa is by the use of a two speed filter pump,
together with this reliable, simple to install,
simple to operate Two Speed Pump Control.

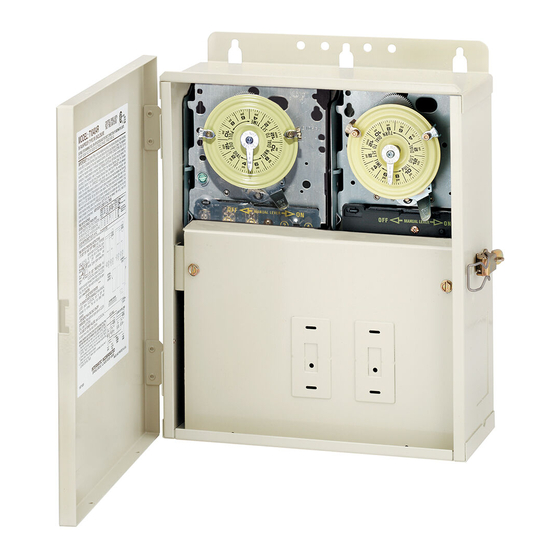

This Control is designed to automatically
operate a two speed pump on a daily schedule.
The all-weather enclosure contains two heavy
duty, industrial grade time switches. In addition,
the enclosure has a provision to install switches
or a GFCI receptacle on the side as well as
inside the enclosure. The time switch on the
right is intended for starting and stopping the
pump and the time switch on the left is for
changing the speed (RPM) of the pump while it
is running. The mechanism on the right can
also accommodate an optional heater
control (Fireman) switch.
When installing and operating this electrical control and other associated equipment, basic safety precautions should always be
followed, including the following:
1. Read and follow all instructions.
2. This Control must be installed by a qualified electrician, according to National and Local Electrical Codes.
3. Install this control not less than 5 feet (3 meters in Canada) from inside edge of pool. USE COPPER CONDUCTORS ONLY.
4. Do not exceed the maximum ratings of individual components, wiring devices, and current carrying capacity of conductors.
5. For grounding and bonding this Control and the installation, refer to Article 680 of the National Electrical Code.
6. The Control should not operate any equipment which would cause bodily injury or property damage should it be activated unexpectedly.
DANGER! TO AVOID RISK OF INJURY:
READ, FOLLOW AND SAVE THIS INSTRUCTION MANUAL
GENERAL INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
READ, FOLLOW AND SAVE THIS INSTRUCTION MANUAL
SERVICE MANUAL
1
INSTALLATION
OPERATION &
