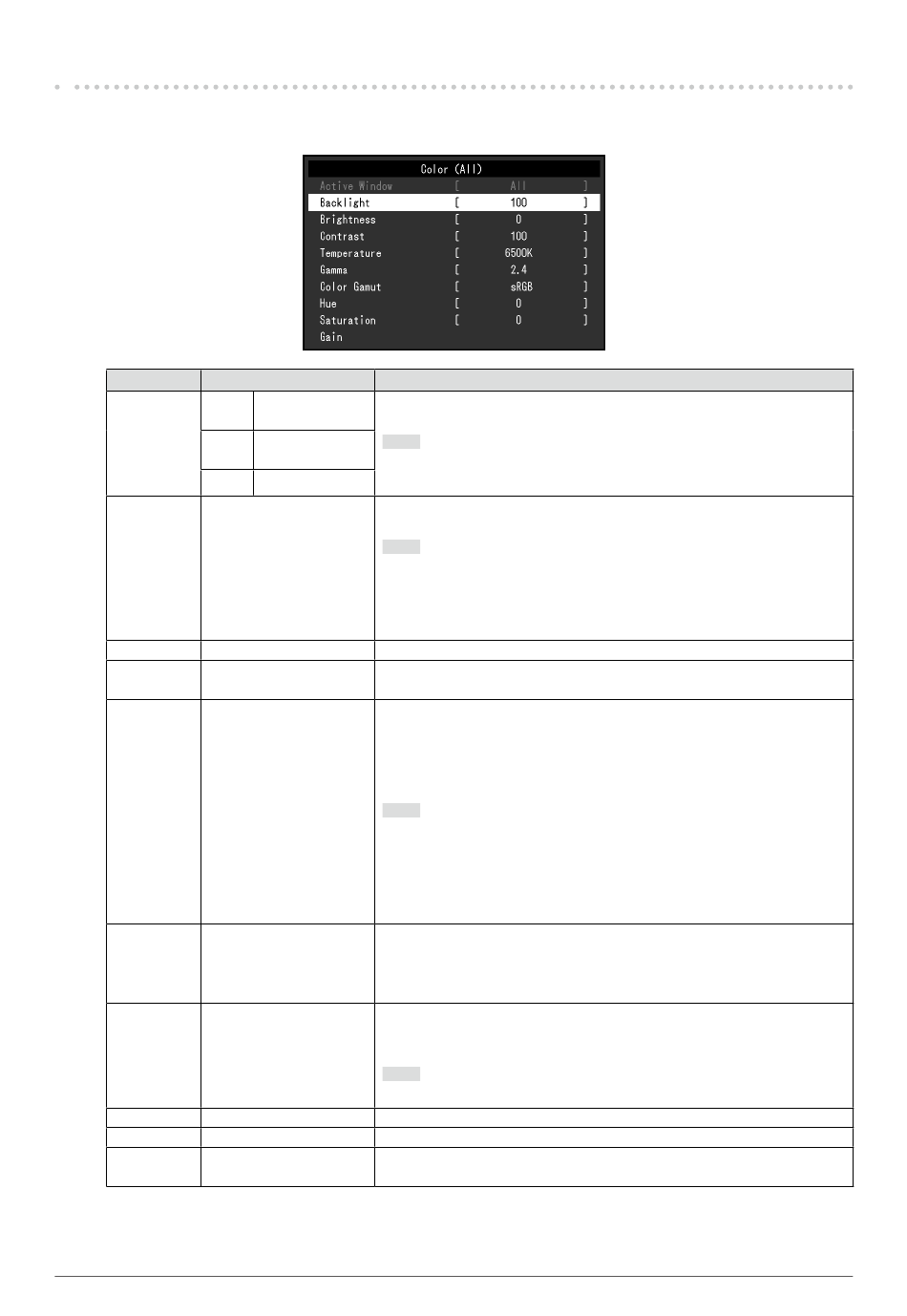

2-2. Setting Menu Functions
●
Color
Function
Active
PbyP
Window
*1
PinP
Single All
Backlight
0 to 100
Brightness
0 to 100
Contrast
0 to 100
Temperature Native / 6500K / 9300K
/ User
Gamma
1.8 / 2.0 / 2.2 / 2.4 / 2.6 /
DICOM / HLG / PQ
Color Gamut Native / sRGB / BT.2020 Set the color reproduction area (color gamut). Color Gamut is the
Hue
-100 to 100
Saturation
-100 to 100
Gain
0 to 255
*1 Disabled when single screen display.
Settings
Left Window /
Select which window to adjust settings when dual screen display (PbyP
Right Window
or PinP).
Large Window /
Note
Small Window
• For dual screen display (PbyP or PinP), color adjustment can be
performed for each screen selected in "Active Window".
Adjust screen brightness by changing the brightness of the backlight
(light source from the LCD back panel).
Note
• For dual screen display (PbyP or PinP), settings are applied to "Left
Window" / "Large Window".
• During PbyP/PinP, the backlight is disabled when either "Right
Window" or "Small Window" are selected in the Active Window.
Adjust the brightness of black.
Contrast can be adjusted.
Adjust the brightness of the screen by changing the video signal level.
Adjust the color temperature. The color temperature is normally
used to express the hue of "White" and / or "Black" with a numerical
value. The value is expressed in degrees "K" (Kelvin). The screen
becomes reddish at low color temperatures and bluish at high color
temperatures, similar to the temperatures of a flame.
Note
• Select "Native" to display the original colors of the LCD panel.
• "Gain" allows you to perform more advanced adjustment. When
gain is changed, "Temperature" is changed to "User".
• The gain preset values are set for each color temperature setting
value.
Adjust the gamma. While the brightness of the monitor varies
depending on the input signal, the variation rate is not proportional to
the input signal. Maintaining the balance between the input signal and
brightness of the monitor is referred to as "Gamma correction".
range of colors that can be represented. Multiple standards are
defined.
Note
• Select "Native" to display the original color gamut of the LCD panel.
Adjust the hue.
Adjust the color saturation.
The brightness of each color component (red, green, and blue) is
called "gain". The hue of "white" can be changed by adjusting the gain.
Description
Chapter 2 Advanced Adjustments / Settings
