Summary of Contents for Oppo VS1000

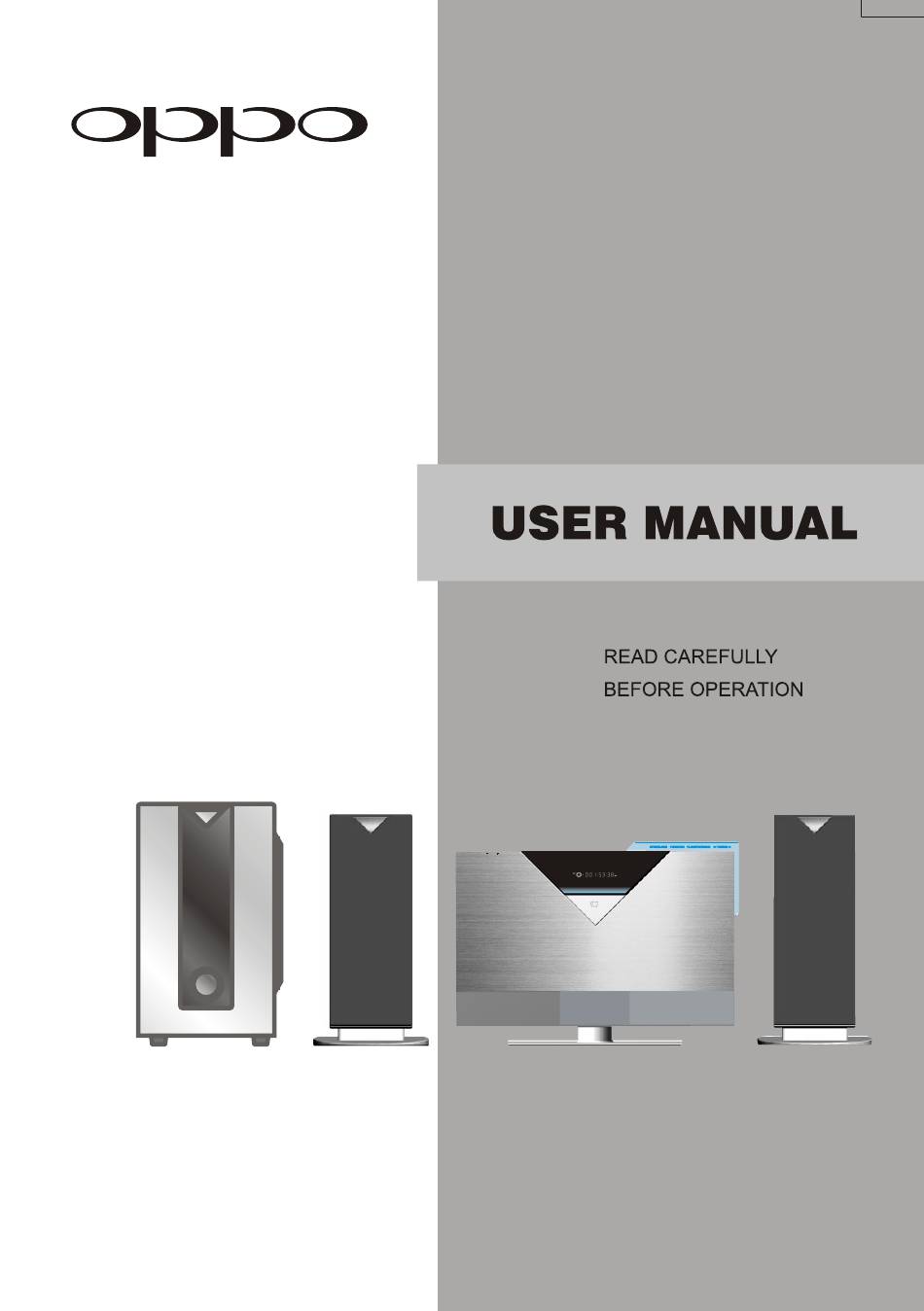

- Page 1 DVD MINI COMBO VS1000 POWER POWER CH-SW CH-SW VOLUME VOLUME...
- Page 2 Safety Instructions Danger Symbol Reminding the user of the dangerous voltage! Warning Symbol Reminding the user of the important instructions for operation and maintenance. WARNING: To prevent the risk of fire or electric shock, do not expose this unit to rain or moisture. High voltage components in it so do not attempt to open the enclosure.
-
Page 3: Table Of Contents
Contents Brief introduction to DVD Rear Panel llustration Side panel illustration Cautions Dot matrix VFD Features Subwoofer rear panel illustration Compatible disc types Remote Control llustration Control Button Locations and Explanations How to use the Remote Control Front Panel llustration Accessories Connected to This Player Connected to FM/AM Tuning... -
Page 4: Brief Introduction To Dvd
PREFACE Brief Introduction to DVD DVD is well known for its extraordinarily large capacity and outstanding audio-video effects. Its capacity is as high as 4.7 -17GB (approximately 7-26 times the CD capacity).With 500-line horizontal resolution of picture and Dolby Digital 5.1 Channel surround sound, it brings a new era to the household AV products. Comparison Between DVD and Other Discs Super VCD CDROM... -
Page 5: Features
PREFACE Cautions Please remove the power plug from the socket when you are not going to use the player for a long time. Ensure that all wires and the power supply are properly connected befor turning the Power on. The player uses the switching power supply .The range of the power supply: AC 110V~250V, 50/60Hz. Before turning on the power of the player, please adjust the volume level knob of audio system speakers and amp- lifiers to minimum. -
Page 6: Compatible Disc Types
PREFACE Compatible Dise Types Recorded Contents Types Sizes 12cm or 8cm DVD: Compressed digital audio + compressed digital video(dynamic picture) 12cm or 8cm DVD: Compressed digital audio + compressed digital video(still picture) 12cm or 8cm Super VCD: Compressed digital audio + compressed digital video(dynamic picture) 12cm MPEG4 MPEG4: Compressed digital audio + compressed digital video(dynamic picture) - Page 7 PREFACE Control Button Locations and Explanations Rear panel illustration FRONT VIDEO OUT AUDIO OUT AUDIO IN 2 Cr/Pr Cb/Pb VIDEO DIGITAL S-VIDEO AUDIO OUT OPTICAL COAXIAL POWER I-LINK Video out terminal Coaxial out terminal for digital audio External audio in terminal 2 S-video Component video/Y Pb Pr out terminal SCART Outjack...
- Page 8 PREFACE Control Button Locations and Explanations Dot matrix VFD V CD 9 10 11 12 13 18 19 DVD disc Stereo indicator Play Tuning indicator FM tuning indicator CD,VCD, SVCD discs Pause AM tuning indicator Repeat MP3 disc Bass adjustment indicator Stop DOLBY DIGITAL Treble adjustment indicator...
- Page 9 PREFACE Control Button Locations and Explanations Remote Control illustration STANDBY Button Press once to standby, Press twice to play. AUDIO Button Change the audio language or audio channel. GOTO button Play from the desired location. ZOOM Button Zoom in the displayed frame. ANGLE Button Change camera angles.
- Page 10 PREFACE Control Button Locations and Explanations How to use remote control Battery Installation Cr2025 Cr2025 Step 1: press toward left Step 2: take out outwards as illustration 1; as illustration 2. Using remote control When using remote control, the POWER CH-SW VOLUME front window of remote control...
-
Page 11: Connected To This Player
SYSTEM CONNECTIONS Caution Before system connecting, make sure that this player and other equipments are unplugged. Connected to This Player Rear panel Main Speaker Main Speaker VIDEO OUT FRONT AUDIO IN 2 Cr/Pr Cb/Pb AUDIO OUT VIDEO DIGITAL S-VIDEO AUDIO OUT OPTICAL COAXIAL POWER... -
Page 12: Connected To Fm/Am Tuning
SYSTEM CONNECTIONS Connected to FM/AM Tuning AM antenna FM antenna Rear Panel FRONT VIDEO OUT AUDIO IN 2 Cr/Pr Cb/Pb AUDIO OUT VIDEO DIGITAL S-VIDEO AUDIO OUT OPTICAL COAXIAL POWER I-LINK AUDIO IN 1 -DTM2- -DTM2- Subwoofer Side Panel Min I-link Cord Main Speaker Main Speaker If you want to enjoy radio station program, please connect according to the above connections of FM/AM... -
Page 13: Connected To Aux In 1
SYSTEM CONNECTIONS Connected to AUX IN 1 Audio Out CD-PLAYER Rear Panel FRONT AUDIO IN 2 VIDEO OUT AUDIO OUT Cr/Pr Cb/Pb VIDEO DIGITAL S-VIDEO AUDIO OUT OPTICAL COAXIAL POWER I-LINK AUDIO IN 1 -DTM2- -DTM2- Side Panel Subwoofer Min I-Link Cord Main Speaker Main Speaker If you want to enjoy music from external equipments, please connect according to the above... - Page 14 SYSTEM CONNECTIONS Connected to AUX IN 2 L Audio R Rear Panel VIDEO OUT FRONT AUDIO IN 2 Cr/Pr Cb/Pb AUDIO OUT VIDEO DIGITAL S-VIDEO AUDIO OUT OPTICAL COAXIAL POWER I-LINK Subwoofer Mini I-Link Cord Main Speaker Main Speaker If you want to enjoy music from external equipments, please connect according to the above connection of external audio input.
-
Page 15: Connected To Amplifier With Dolby Digital/Dts Decoder
SYSTEM CONNECTIONS Connected to Amplifier with DOLBY DIGITAL/DTS Decoder Video Cord Video In Rear Panel FRONT VIDEO OUT AUDIO IN 2 AUDIO OUT Cr/Pr Cb/Pb VIDEO DIGITAL S-VIDEO AUDIO OUT OPTICAL COAXIAL SOURCE MENU (Connect either of the cords) Optical Cord Optical In Coaxial Cord Coaxial In... -
Page 16: Connected To Progressive Scanning Tv Set
SYSTEM CONNECTIONS Connected to Progressive Scanning TV set Component In (Y) Component In (Pb) Component In (Pr) Rear Panel FRONT VIDEO OUT AUDIO IN 2 AUDIO OUT Cr/Pr Cb/Pb VIDEO DIGITAL S-VIDEO AUDIO OUT SOURCE MENU OPTICAL COAXIAL Progressive Scanning TV set Audio Cord Audio In... -
Page 17: Connected To Tv Set
SYSTEM CONNECTIONS Connected to TV set Component In (Y) Component In (Cb) Component In (Cr) Rear Panel FRONT VIDEO OUT AUDIO OUT AUDIO IN 2 Cr/Pr Cb/Pb VIDEO DIGITAL S-VIDEO AUDIO OUT SOURCE MENU OPTICAL COAXIAL S-Video Video Cord Video In S-Video Cord S-Video Audio Cord... -
Page 18: Playback
BASIC OPERATION Playback NOTES Please change your TV settings accordingly and MPEG4 SVCD connect the cords according to the instructions in pages 13&14. 1. Connect the DC output socket of the power adaptor When there are no audio and video outputs if you with the power input jack of the player to turn on switched on this player or pressed the above two working power supply... -
Page 19: Pause/Step Playback
BASIC OPERATION Pause/Step Playback Channel Volume control MPEG4 SVCD MPEG4 SVCD 1. Press PAUSE/STEP button in playback status. 1. Press CH-SW button to select bass, treble, main volume or Press PAUSE/STEP button once to pause left/right channel. playback. The TV screen displays: 2. -
Page 20: Direct Selection Playback Function By Number Button
BASIC OPERATIONS 2. Submenu displays on TV screen after Language/Audio Channel Selection entering into main menu 1. SVCD 1. Press AUDIO button. You may select the language you desire when 3. Press NEXT or PREV button to turn to playing multi-language DVD, SVCD discs. adjacent page. - Page 21 BASIC OPERATION Save Radio Station Function Switch This player may pre-save 20 FM and 20 AM radio stations. 1. Press FUNCTION button and you may switch in Pre-save radio station: 3 modes of DVD, TUNING and AUX IN. The 1. According to the above tuning operation, if you sequence of mode switch is: have searched a favourite radio station in AM band (as the following figure):...
- Page 22 BASIC OPERATION If the player is in playback mode: Sleep Power-off Time Setup 1. Press TIME button and TV screen displays You may set sleep power-off when reading disc. the real time: Before the sleep power-off time that you set comes, the player will enter standby mode automatically.
- Page 23 BASIC OPERATION stops in "CARD READER" item, you may press USAGE OF USB EQUIPMENT SELECT or PLAY button to confirm. After correctly reading card reader equipment data, the screen AND 3-IN-1 CARD READER will display an operation menu. Please refer to the part of "MPEG4, MP3 and JPEG FILE PLAYBACK"...
-
Page 24: Fast Playback
PLAY OPERATION Repeat the Selected Section Fast Playback MPEG4 SVCD MPEG4 SVCD When playing discs, you may press A-B button You can select forward or reward playback to to repeat playback of certain section you desire. 1. Under normal playback, press A-B button at the search the point you desire when playing discs. -
Page 25: Subtitle Selection
PLAY OPERATION Playback from the Desired Point Subtitle Selection MPEG4 SVCD Playing DVD disc 1. Press SUBTITLE button. Input the time, title or chapter directly, the When playing the DVD disc recorded with content can be found quickly and played from subtitles of different languages, it is possible the selected point. - Page 26 PLAY OPERATION Disc INFO Zooming the Displayed Frame MPEG4 SVCD The brand-new interface Disc INFO enables you to conveniently perform DVD disc functions of title, chapter, sound, subtitle, angle, title time, chapter time, Capable of zooming in/out a certain repeat play and time display; or SVCD, VCD disc dynamic or still frame.
- Page 27 PLAY OPERATION the data number are greatly decreased. The most distinct 1. File playback way feature of MPEG4 is the high compression and clear imaging. When playing MPEG4, MP3 and JPEG format discs, Furthermore, MPEG4 provides elastic specifications to adjust the player will search disc information, enter file the stream according to the used requirements.
-
Page 28: Function Setup
FUNCTION SETUP If disc includes both MP3 and JPEG file, you may enjoy MP3 Function Setup songs and JPEG file at the same time. You may play MP3 songs in above-mentioned way, then enter directory with 1. Press SETUP button, and the TV set screen JPEG file and enjoy JPEG picture in above-mentioned way. -
Page 29: General Settings
FUNCTION SETUP EQ type: To set EQ modes. General Settings Optional settings: None, Rock, Pop, Live, Dance, Techno, Classic, Soft. Default: None. 2. Sound Field: To set different sound field General Setup Page effects. TV Display Normal/LB English OSD Lang Optional settings: Off, Concert, Living Room, Screen Saver SCART... - Page 30 FUNCTION SETUP English, French, German, Spanish, Danish, Swedish, Norwegian, Chinese, Others,Off. English. English, French, German, Spanish, Danish, Swedish, Norwegian, Chinese, Others. English. English English English...
-
Page 31: Useful Notes
OTHERS Useful notes In order to prolong the service life of your player, it is recommended to wait at least 30 seconds before you turn it on again after switching it off. Turn off power after operation. Only use the power supply of the nominal voltage, otherwise the player will not be operational or even be damaged. - Page 32 OTHERS Specifications DVD VIDEO,DVD AUDIO DivX*, MPEG4* Super VCD Disc Types VCD1.0, 1.1, 2.0 CD-DA 2-group AUX IN Input FM antenna in, AM antenna in Analog audio output stereo output Digital Audio Output Coaxial Output, Optical Out jack Video Output Progressive Scan Output Y Pb Pr S-Video Output Y, C...
- Page 33 OTHERS Specifications for Sound System Rated power VS1000 (subwoofer) 35W (6 ,50Hz) (total harmonic 15W (8 ,1kHz) Vs1000 (L/R) distortion for amplifier Rated load VS1000 (subwoofer) VS1000 (L/R) impedance System frequency VS1000 (subwoofer) 50Hz ~ 210Hz (+1/-3dB) range (normal VS1000 (L/R)
- Page 34 OTHERS...
- Page 35 OTHERS...
- Page 36 5194135 V 2.0...
