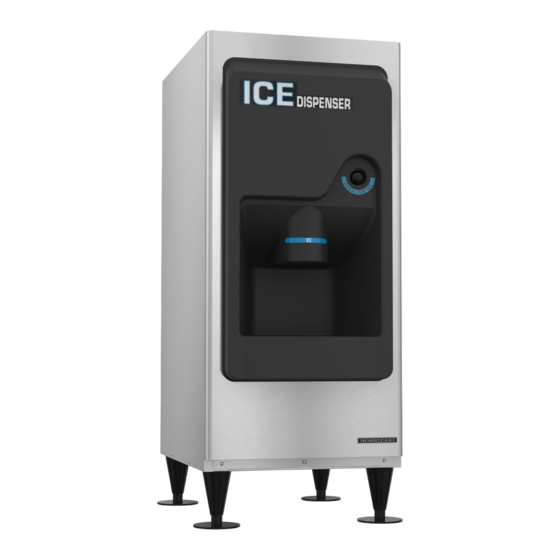

Hoshizaki DB-130H Parts List

Ice dispensing bin
Hide thumbs Also See for DB-130H:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Instruction Manual

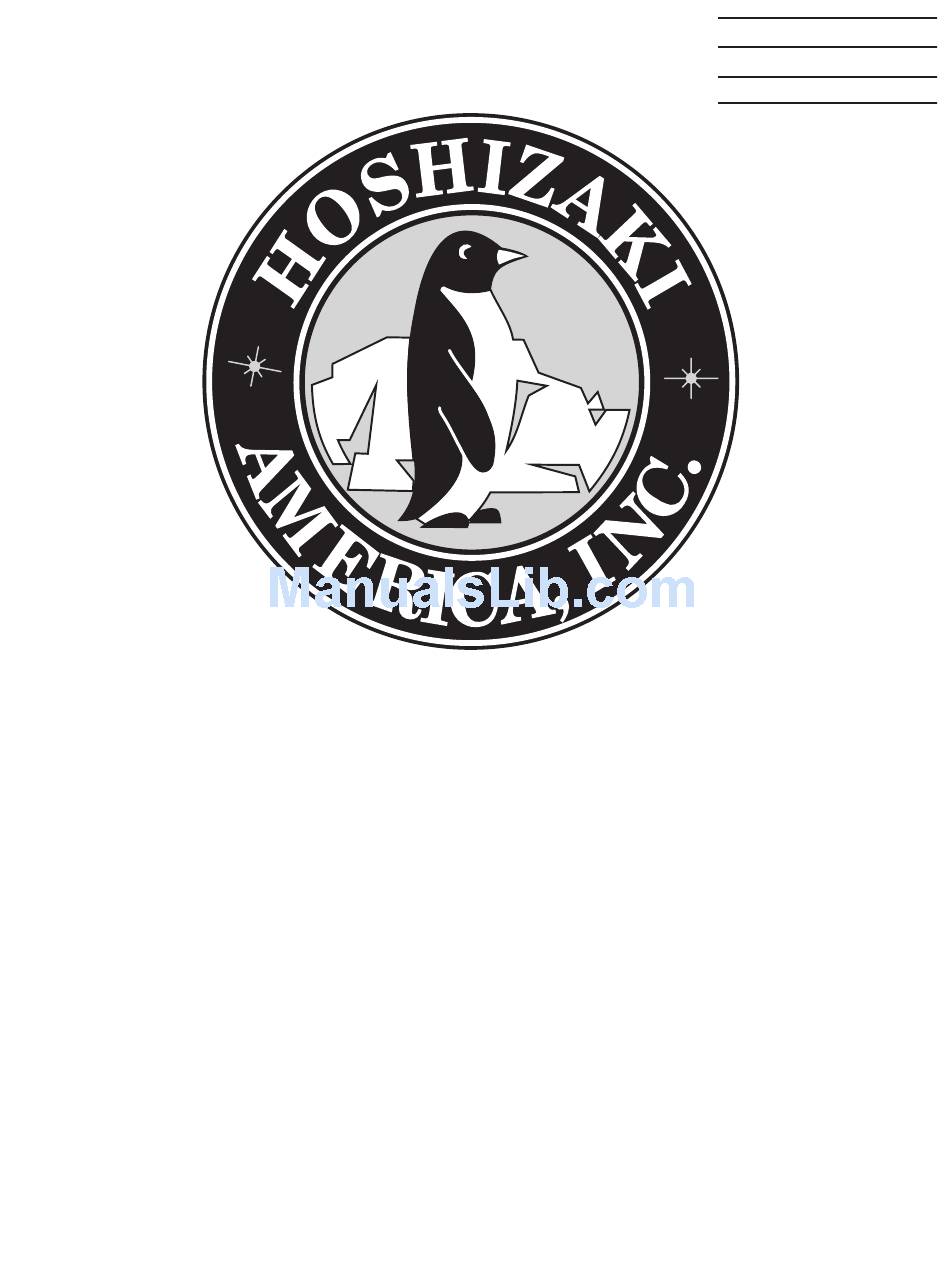

NO:
71205
ISSUED:
April 12, 2002
REVISED:
July 29, 2005
HOSHIZAKI
ICE DISPENSING BIN
MODEL
DB-130H

PARTS LIST

Advertisement

Table of Contents
loading

Related Manuals for Hoshizaki DB-130H

Summary of Contents for Hoshizaki DB-130H

  • Page 1: Parts List

    71205 ISSUED: April 12, 2002 REVISED: July 29, 2005 HOSHIZAKI ICE DISPENSING BIN MODEL DB-130H PARTS LIST...

  • Page 2: Table Of Contents

    CONTENTS Material Abbreviations ... 3 Auxiliary Codes... 4 Note About Ordering Parts ... 4 A. Dispensing Bin Assembly... 5 B. Mechanism Assembly ... 9 C. Front Panel ... 11 D. Solenoid Assembly... 13 E. Spout Switch Assembly... 15 F. Drain Pan Assembly... 16 G.

  • Page 3: Material Abbreviations

    Material Abbreviations ALUMINUM Aluminum COPPER Copper PLASTIC Acrylonitrile -butadiene - styrene Polyacetal Ethylene vinyl acetate Polyamide = Nylon Polycarbonate Polyethylene Polyester PETP Polyethylene terephthalate = Tetlon Polypropylene Polystyrene PTFE Polytetrafluoroethylene = Teflon Polyurethane Polyvinyl chloride RUBBER Vinyl Nitrile EPDM EP rubber Nitrile butadiene rubber Natural rubber Neoprene...

  • Page 4: Auxiliary Codes

    Auxiliary Codes September 2001 February 2002 January 2003 December 2003 October 2004 December 2004 Note About Ordering Parts Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered separately.

  • Page 5: Dispensing Bin Assembly

    A. Dispensing Bin Assembly (1/2) DB-130H L-0, M-0, N-0, P-0, P-5, Q-5 20 21...
  • Page 6 A. Dispensing Bin Assembly (2/2) DB-130H L-0, M-0, N-0, P-0, P-5, Q-5...
  • Page 7 T2 Screw Chain Cover (B) FT Screw Thumbscrew Thumbscrew – Black Control Box (B) T2 Screw Control Box (C) T2 Screw FT Screw Model: DB-130H Material or Model Number Part Number 1A0110A01 1A0606A01 4×8, SS 7C32-0408 2A0587A01 4×10, SS 7B0230410 4×8...
  • Page 8 Capacitor – Run Bracket – Front Panel (A) T2 Screw Gasket Control Box (A) T2 Screw FT Screw Strap FT Screw Gasket Vinyl Hose Model: DB-130H Material or Model Number Part Number 323808-01 4×8 7P31-0408 OCB-750 428394-01 NO. 4253 427902-05 CV-150...

  • Page 9: Mechanism Assembly

    B. Mechanism Assembly DB-130H L-0, M-0, N-0, P-0, P-5, Q-5 9 10...
  • Page 10 Title: B. Mechanism Assembly Model: DB-130H Index Description Gear Motor Assembly Hex Head Bolt Split Lock Washer Washer Agitator Drive Shaft Gear Motor Bracket (A) Hex Head Bolt Split Lock Washer Washer Pillow Hex Head Bolt Hex Nut Split Lock Washer...

  • Page 11: Front Panel

    C. Front Panel DB-130H L-0, M-0, N-0, P-0, P-5, Q-5...
  • Page 12 Title: C. Front Panel Model: DB-130H Index Description Front Panel (A) Front Panel (B) Foam Tape Foam Tape Chute Drain Board Material or Model Number Part Number 1A0567-01 2A2152-01 L=522 4A2460L01 L=881 4A2460L01 2A2371-01 3A2145-01 Required Number...

  • Page 13: Solenoid Assembly

    D. Solenoid Assembly DB-130H L-0, M-0, N-0, P-0, P-5, Q-5...
  • Page 14 Title: D. Solenoid Assembly Model: DB-130H Index Description Solenoid Bracket Solenoid Truss Head Screw Link Hex Head Bolt Hex Nut Collar (D) Link Solenoid Shaft Collar – Shutter Connector Spring Pin “E” Ring Spring Rubber Gasket Material or Model Number Part Number...

  • Page 15: Spout Switch Assembly

    Title: E. Spout Switch Assembly Index Description Spout Switch Bracket T2 Screw Spout Switch Cover (B) Truss Head Screw Push Switch Spout Switch Cover Bushing Safety Cover Model: DB-130H Material or Model Number Part Number 3A1947-01 4×8 7P31-0408 4A2459-01 4×8 7C31-0408 ZAP-2B(UL) 435745-01...

  • Page 16: Drain Pan Assembly

    F. Drain Pan Assembly DB-130H L-0, M-0, N-0, P-0, P-5, Q-5 Title: F. Drain Pan Assembly Model: DB-130H Index Description Drain Pan Drain Pan Bracket Truss Head Screw Drain Hose Fitting Drain Cable Tie Drain Hose Bracket Insulation Tube Insulation Sheet...

  • Page 17: Shutter

    G. Shutter DB-130H L-0, M-0, N-0, P-0, P-5, Q-5 Title: G. Shutter Model: DB-130H Index Description Shaft – Shutter Shutter (A) Truss Head Screw Material or Model Number Part Number 324899-01 POLYOXY- 215459-01 METHYLENE 4×8, SS 7C32-0408 Required Number...

  • Page 18: Safety Switch Assembly

    L-0, M-0, N-0, P-0, P-5, Q-5 Title: H. Safety Switch Assembly Index Description Safety Switch Cover Spacer Micro-Switch Cross-Recessed Pan Head Tapping Screw Tapping Screw Model: DB-130H Material or Model Number Part Number 324900-01 PHENOL 429933-01 RESIN 4A2546-01 TYPE 1 No. 4 7C11I1434 L=3/4 3×14...

  • Page 19: Spout

    J. Spout DB-130H L-0, M-0, N-0, P-0, P-5, Q-5 Title: J. Spout Model: DB-130H Index Description Spout (A) Shutter (B) Weight Shaft (D) Snap Pin Material or Model Number Part Number 325994-01 435539-01 435540-01 4A1210-01 SS, SSP-4 715S-0004 Required Number...

  • Page 20: Label Location

    K. Label Location DB-130H L-0, M-0, N-0, P-0, P-5, Q-5...
  • Page 21 Title: K. Label Location Model: DB-130H Index Description Naming Label Label – Push For Ice Spout Label Label – Color Model Number Label Nameplate Wiring Label Maintenance Label Instruction Sheet Caution Label (D) Tag – Warning: Electrical Connection Emblem Material or...

  • Page 22: Gear Motor Assembly

    L. Gear Motor Assembly DB-130H L-0, M-0, N-0, P-0, P-5, Q-5...
  • Page 23 Title: L. Gear Motor Assembly Model: DB-130H Index Description Gear Motor Hex Head Bolt Bolt Split Lock Washer Gear Mtr. Brckt. (B) Sprocket (A) Socket Set Screw (CP) Barrier (C) Bushing Material or Model Number Part Number V06695AB84 4A0183-01 6×20...

  • Page 24: Frame

    DB-130H L-0, M-0, N-0, P-0, P-5, Q-5 Title: M. Frame Model: DB-130H Index Description Frame Bracket FT Screw Material or Model Number Part Number 1A0057G01 4A0193-01 4×8 7F31-0408 Required Number...

  • Page 25: Accessories & Packaging

    Adjustable Leg W/5” Toe Leg Protector Packaging Carton Pallet Hex Head Bolt Flat Washer Top Pad Corner Pad Model & Serial # Label Registration Card Model: DB-130H Material or Model Number Part Number PAPER 91A4JA10B 4A2526-01 3A0134-01 1A0009A03 2A0001-57 3A0669-01 5/8-11 UNC...
